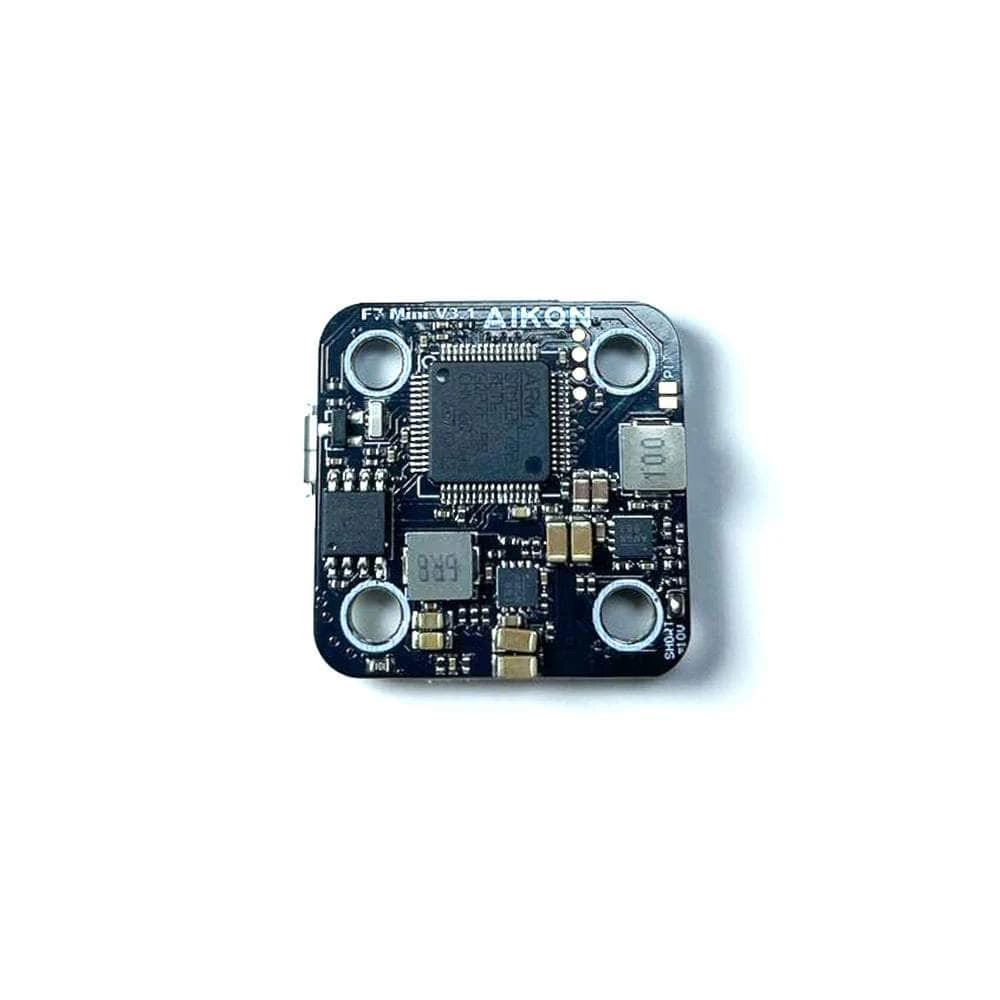

Aikon F7 Mini V3.1 HD 20×20 Flight Controller For DJI

 This FC pairs seamlessly with any

Aikon ESC

. The F7 MCU will allow you to dial in your tune the way you want it and the DJI plug and play means it’s ready to go with the Air Unit or Vista.

Check out all our

20×20 FCs

, our

DJI compatible gear section

, and all our

Aikon gear

!

Features

• 216mhz F7 processor
• 5 Software invertable hardware UARTS
• Onboard OSD and blackbox
• Software controlled VTX power switch
• LED outputs
• Quick connection cable for 4-in-1 ESCs
• On-board high overhead voltage regulators up to 6S (50v peak for voltage spikes)
• 10V/1.5A regulator for DJI HD system
• DJI Quick Connect Port

Specifications

• Input Voltage: 2-6s
• Mount Hole: 20x20mm
• Betaflight Target: AIKONF7
• MCU: STM32F722RET6
• IMU: BMI270
• Blackbox SPI: 16MB
• Weight: 8g

Includes

• 1x Aikon F7 Mini V3 HD 20×20 Flight Controller for DJI

Wiring Diagram
