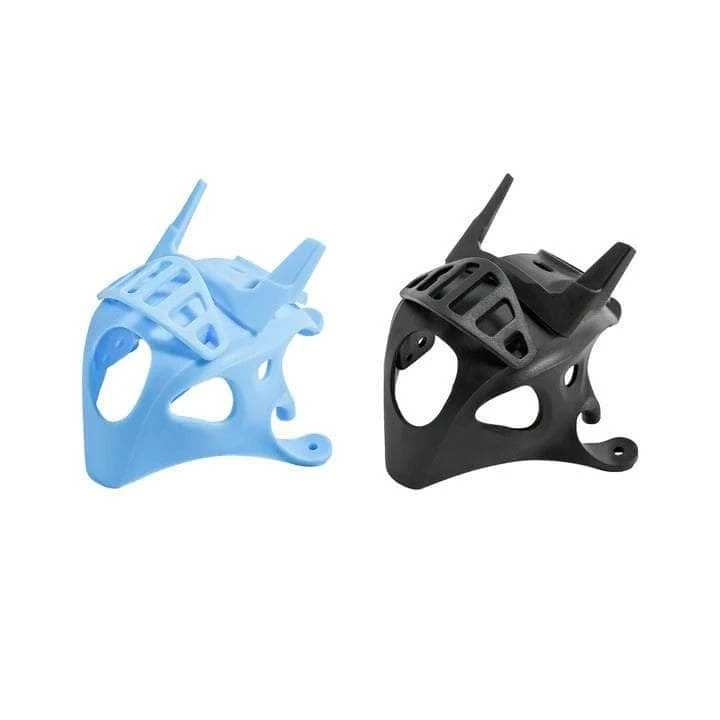

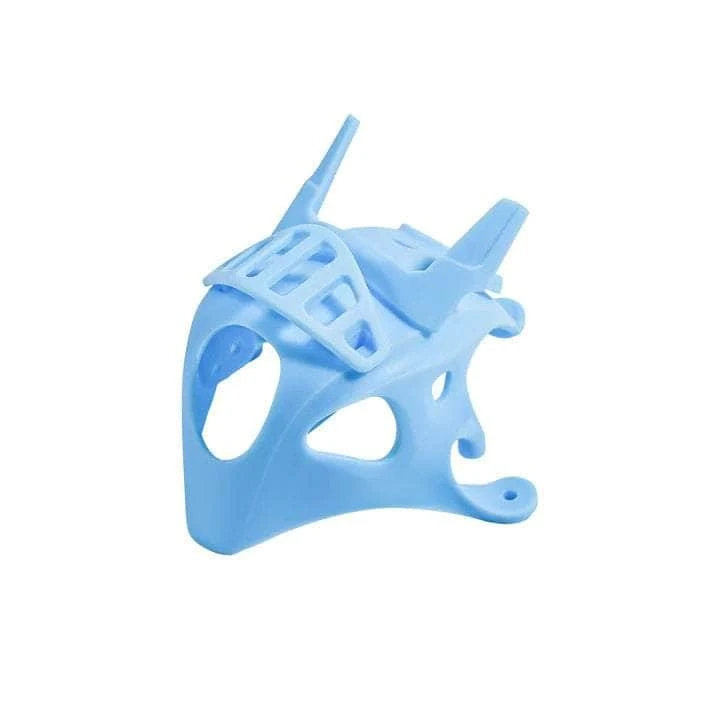

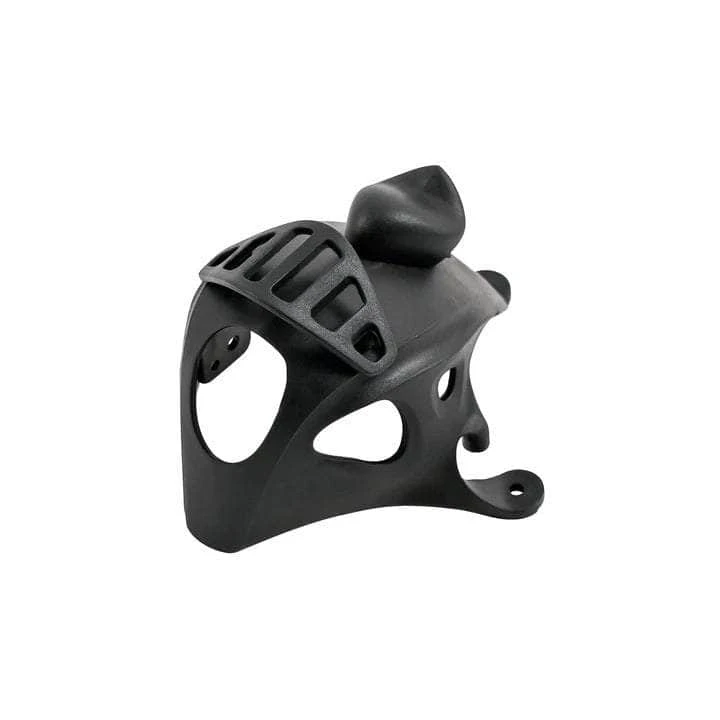

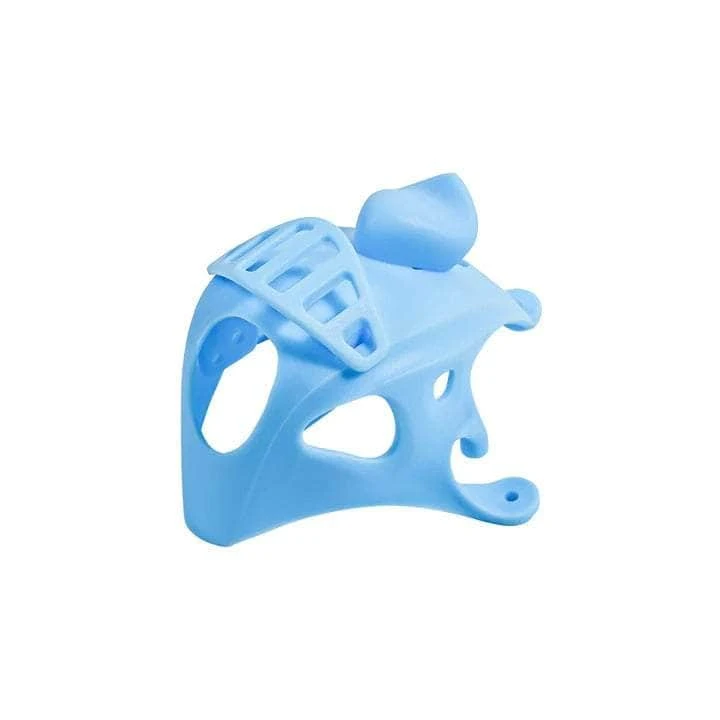

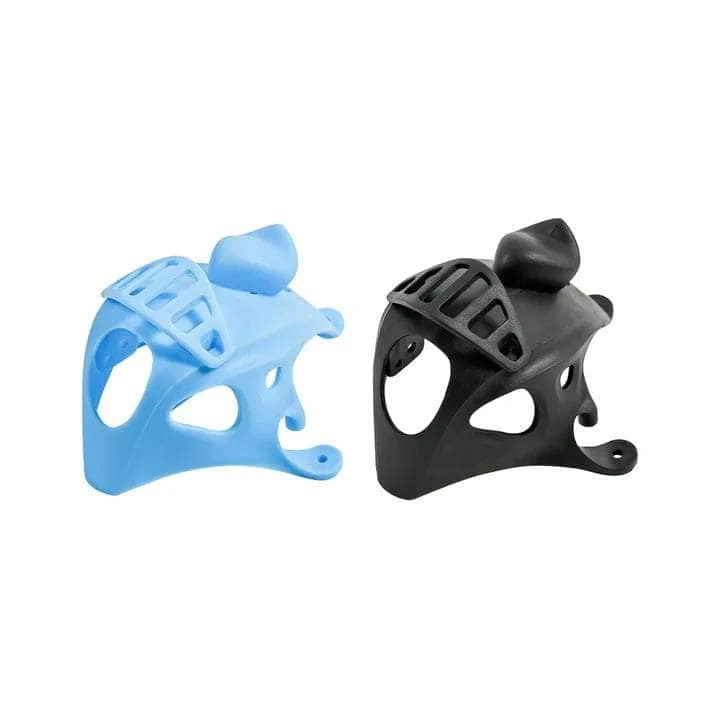

BetaFPV Micro Whoop Canopy For HD Camera – Choose Color

This micro canopy is specially designed for Walksnail Avatar Nano camera, Runcam Nano Lite Camera, or most 14mm nano cameras, supporting an adjustable camera lens of 0-45°. It features high compatibility for both HD Digital VTX and Analog VTX like M03 Analog VTX.

Features

• The canopy is designed with camera mounting holes for an adjustable camera lens of 0-45°. It is suitable for Walksnail Avatar Nano camera, Runcam Nano Lite Camera, or most 14mm nano cameras.
• Lightweight and two colors for options (Black/Blue). Using it with Meteor Series colorful frame will be more attractive. Recommend frames for Meteor65 Pro, Meteor75, and Meteor85
• Adopt with injection molding technique, this canopy is more durable, anti-ruin, and heat-resistant, providing good protection for the whoop drone.
• Unique design with three decorative parts like a knight, the drone flies in the air like a scientific spaceship cruising, making it very cool and special. Also, the decorative parts are detachable for better heat dissipation.

Mounting Diagram

The picture below is the diagram for this canopy. This canopy is applied to 1S Walksnail Avatar Mini HD VTX, HDZero Whoop Lite Bundle, M03 Analog VTX, or most 14mm nano cameras. Other brands’ VTXs with similar sizes are available to be mounted on this canopy.

Specification

• Item: Micro Canopy for HD Camera
• Material: PP
• Tilt:  0-45°
• Weight: 2.50g (without decorations), 3.28g (with decorations)
• Color: Black/Blue
• Adapted VTX: 1S Walksnail Avatar Mini HD VTX, HDZero Whoop Lite Bundle, M03 25-350mW 5.8G VTX
• Adapted FPV Camera: Walksnail Avatar Nano Camera, Runcam Nano Lite Camera, or most 14mm nano cameras
• Adapted Frame: Meteor65 Pro/Meteor75/Meteor85

Includes

• 1x Micro Canopy for HD Camera (Black/Blue)
• 3x Decorative Parts
• 3x M1.4×3 Screws
• 8x M1.4×5 Screws
• 3x M2x4 Screws

Note: The decorative parts for both Micro Canopy for HD Camera and Canopy for Micro Camera 2022 are unavailable in common use even though they have a similar appearance.
