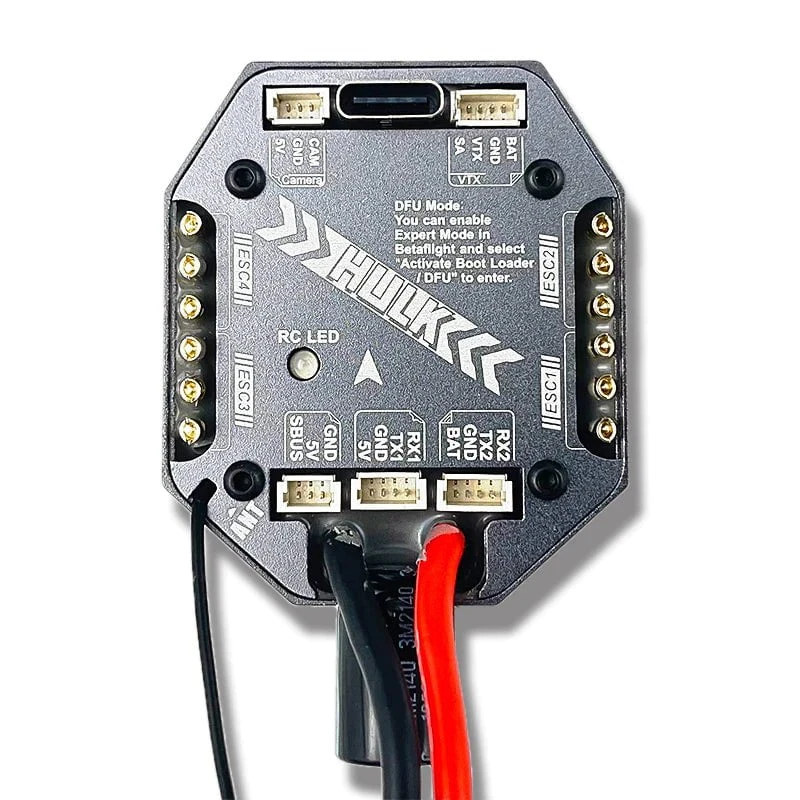

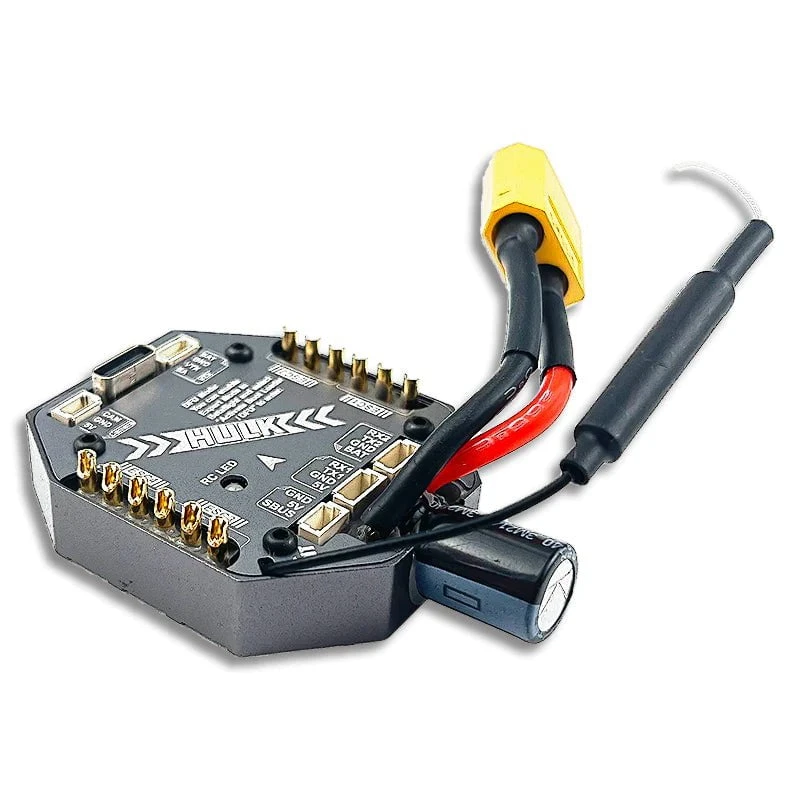

DarwinFPV HULK F411/45A 3-6S AIO Flight Controller W/ ELRS 2.4GHz

This AIO has a rating of IP67, In ideal conditions submersion of 1 meter for 30 minutes can be achieved.

 Introducing the all-new DarwinFPV Hulk AIO! Having IP67 water-resistant grading, 45A BLS ESC, and Onboard ELRS SPI receiver. This AIO is ready for any adventure that you can and couldn’t take your drone!!!

Check out our other

AIO Flight Controllers

and our

Darwin FPV products

!

Specifications

AIO F411

• MCU: STM32F411CEU6
• Gyro: MPU6500
• OSD Chip: Betaflight OSD AT7456E
• Blackbox: 16MB
• UARTS: 5
• I2C: SDA / SLA pads
• LED: Yes
• Beeper: Yes
• Firmware Target: MATEKF405
• FC Mounting Pattern: 30x30mm
• Dimensions: 37x36x10.8mm

AIO ESC

• Input Voltage: 2-6S
• Max. Continuous Current: 45A
• Max. Burst Current: 55A
• MCU: EFM8BB21F16G
• Current Sensor: Yes
• Mounting Dimensions: 25 x 25 M2
• Dimensions 46.2mm x 39.5mm x 10mm


Includes

• 1x Darwin FPV HULK F411/45A 3-6S AIO w/ ELRS 2.4GHz

Please attention:

• Seawater is highly corrosive, it is not recommended for use in seawater. Please wash it with fresh water immediately and then dry it.
• Supports a 3-6S battery, remember not to plug the battery’s positive and negative interface in reverse, otherwise, it will burn out.
• After receiving the AIO, first connect to a computer on Betaflight software to check whether the gyroscope and accelerometer are detected and whether the gyroscope attitude is normal.
• Increase the throttle in Betaflight software to ensure the normal rotation and correct rotation direction of the 4 motors, and then install the propellers for a test flight; be sure to remove the propellers when pulling the throttle in Betaflight software to avoid accidents.
• After confirming the above precautions without any problems, you can install the propellers and start flying!

Wiring Diagram
