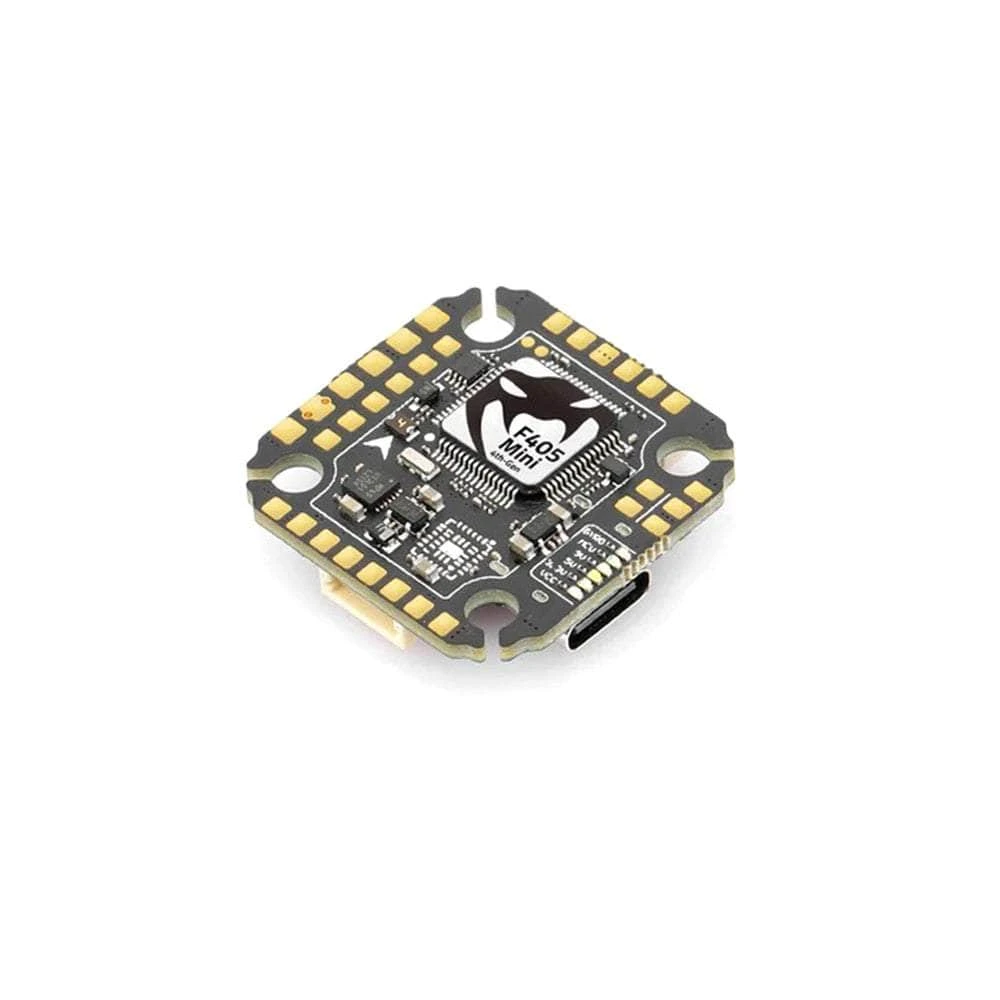

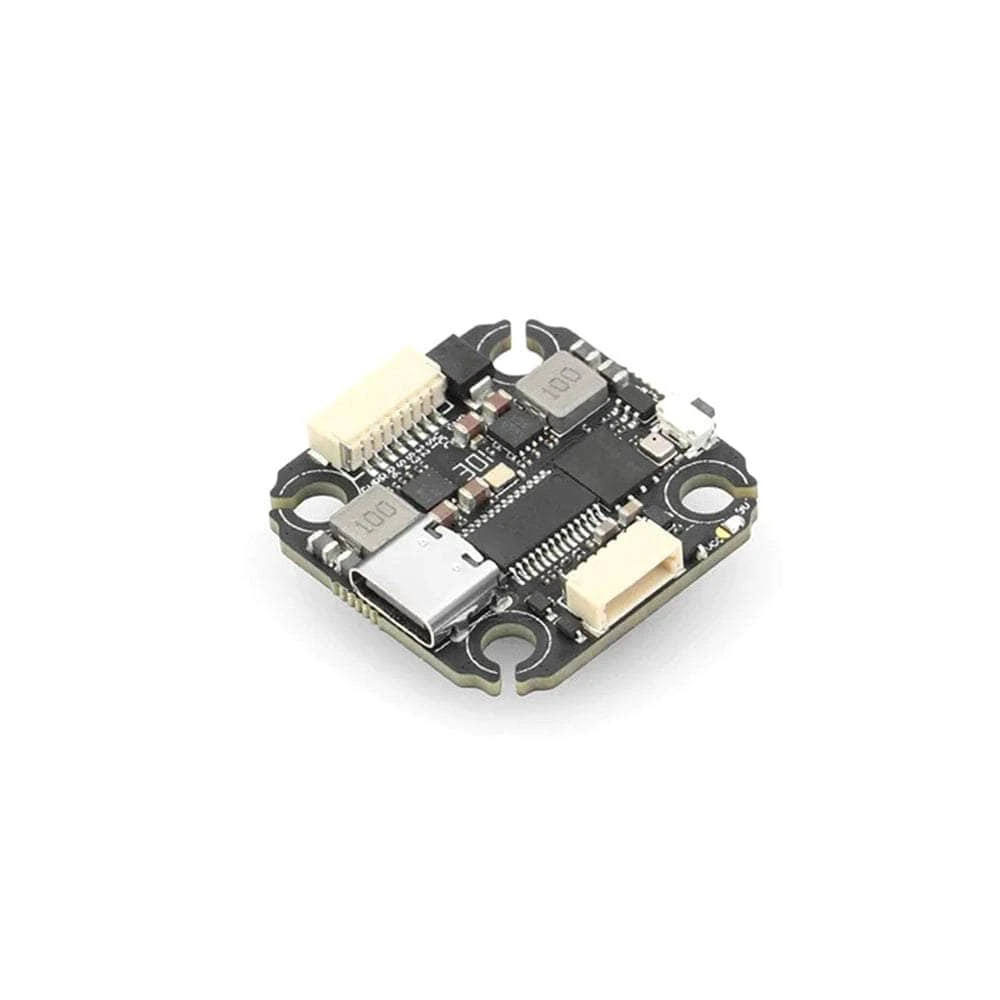

Diatone Mamba MK4 F405 Mini 20×20 Flight Controller
Original price was: $4.94.$3.46Current price is: $3.46.
- Efficiency meets excellence in customer care.
- Your needs, our top priority.
- Best price, safe shopping guarantee
- Fast reliable delivery options
The Mamba F405 Mini flight controller is tried and true. This has plenty of features to suit the needs of most quads and pilots. The small for factor and overall reliability make this an excellent choice for almost any build!
Check out all of our
20×20 FCs
and all our
Diatone Gear
!
Specifications
- Input Voltage: 3-6S
- MCU: 480MHz STM32F405
- Gyro: ICM42688P
- OSD: AT7456E
- Blackbox: 16M Flash Memory
- Uarts: 6Set
- ESC Signal: 6Set
- LED Controller: BF LED
- I2C: Yes
- F.Port: Yes
- Buzz: Yes
- TVS Protection: Yes
- BEC: 3.3V 0.5A & 5V 2.5A & 9V 2A
- Mounting Pattern: 20×20 M3/M2
- Dimensions: 29×29.5×6.5
- Weight: 6g
Includes
- 1x Diatone Mamba MK4 F405 Mini 20×20 Flight Controller
Wiring Diagram
