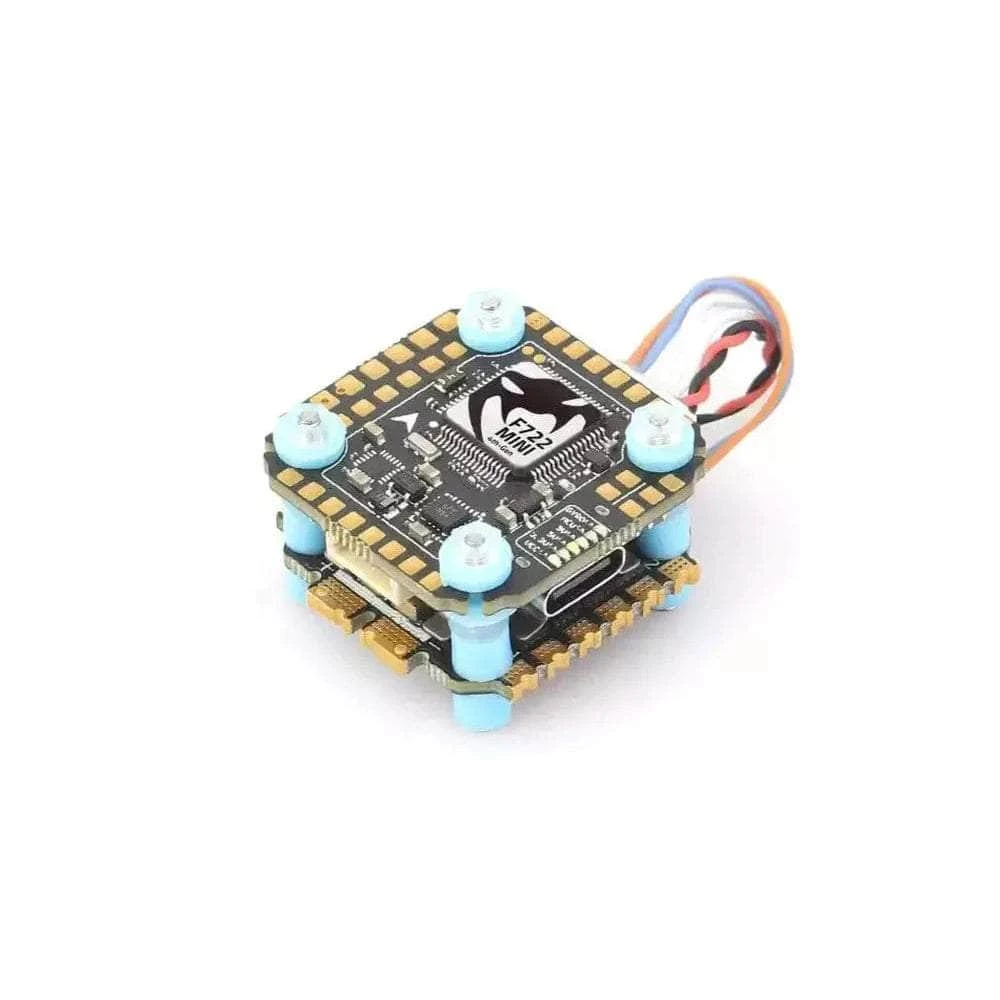

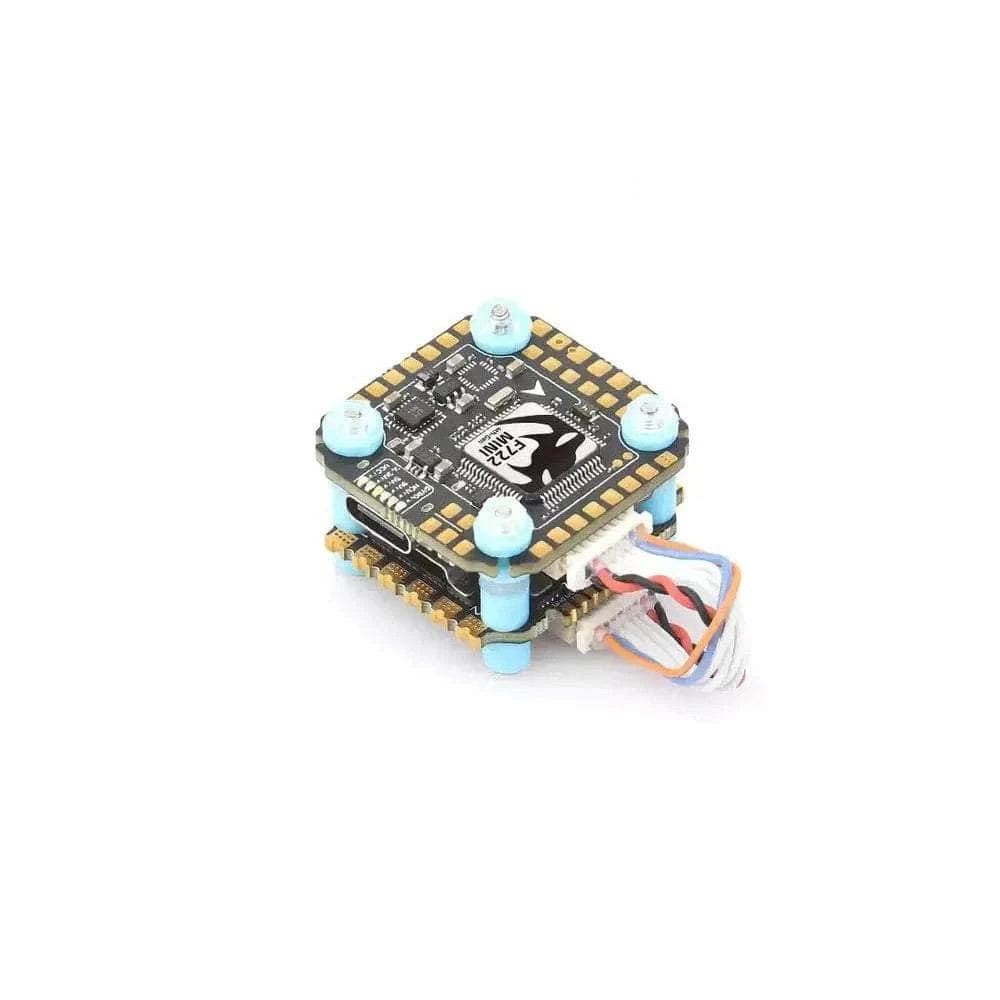

Diatone Mamba MK4 F722 Mini F40_128k 3-6S 20×20 Stack/Combo (F722 FC / 40A 128k 32bit 4in1 ESC)

Diatone has released their 4th generation F722 mini stack. The MK4 F722 mini 20×20 stack boasts larger soldering pads, wider pad spacing, more UARTs, l2C and is configurable through the Speedy Bee App via built-in Wi-Fi! So much power from a lightweight stack!

Browse our

Stacks & Combos

 and our

Diatone Gear

!

Features

• The pad area increased by 30%
• Pad spacing increased by 100%
• MP9943 synchronous rectifier BEC
• MINI series upgrade DJI interface and 5v 15W/9V 18W 2 set BEC
• USB Type C
• 6 Set UART and I2C
• 4 Set Power Protection
• 32Bit ESC all support 128K
• Mini series FC uses 2mm and 3mm mounting holes, w/ a special dampening ring
• Upgrade the twisted pair anti-jamming cable and reinforcement process

Specifications

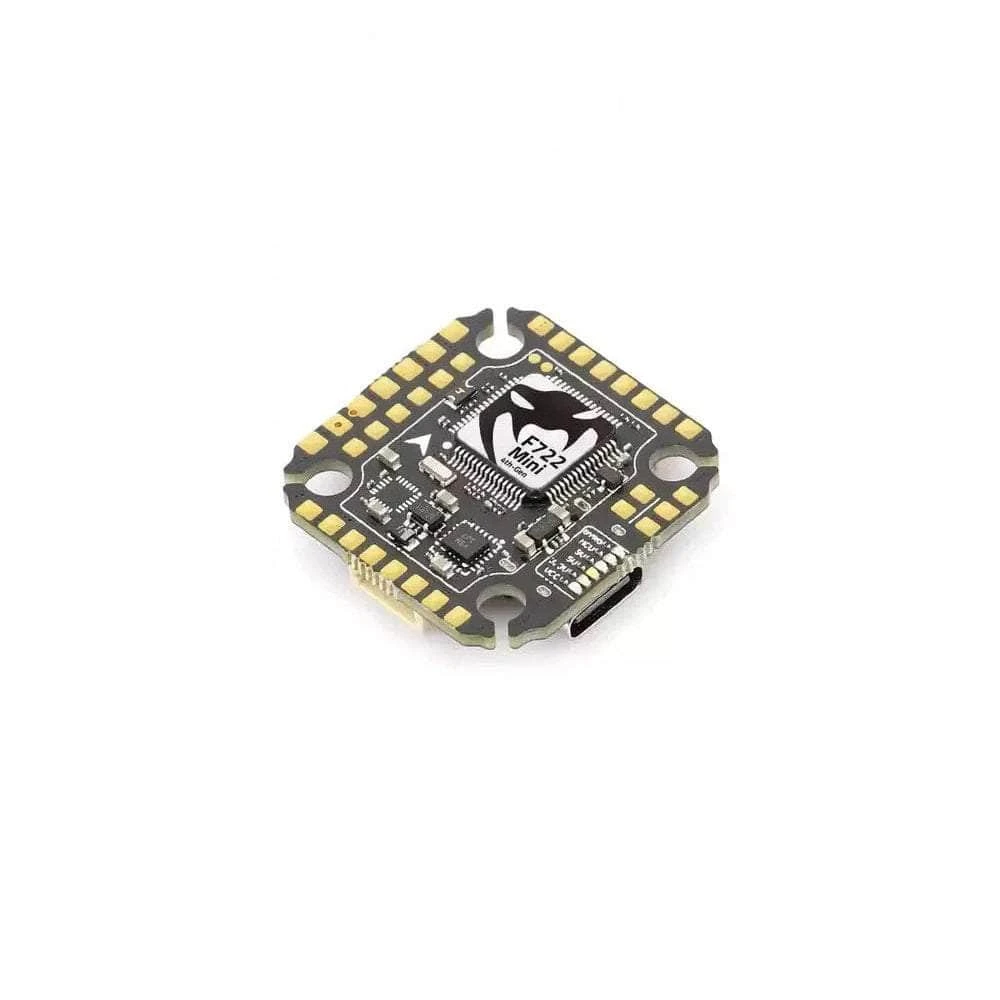

Mamba Basic Mini F722 MK4

• Input: 2-6S
• MCU: ICM42688P
• Barometer: Yes
• OSD: Yes
• Blacbox: 16M Flash Memory
• Uarts: 6Set
• Protocol: Dshot300/600/1200
• ESC Telemetry: Yes
• Power Led: Yes
• LED Controller: BF LED
• F.Port: Yes
• Buzz: Yes
• TVS Protection: Yes
• BEC: 3.3V 0.5A & 5V 2.5A
• Mounting Pattern: 20×20 M3/M2

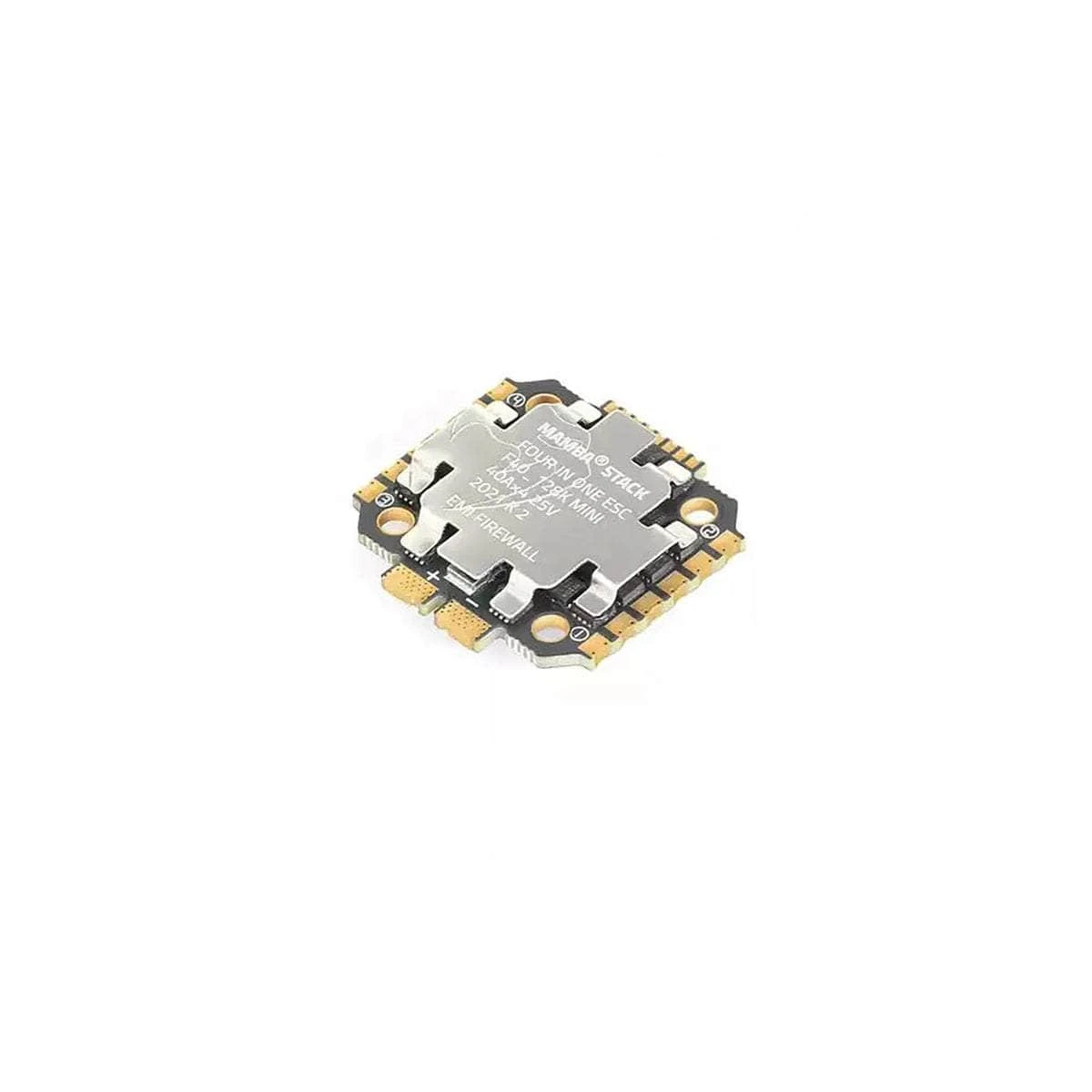

Mamba F40 128k

• Input Voltage: 3-6S Lipo
• Max Continuous Current: 40A
• Max Burst Current: 45A
• BEC: No
• Target：BLHeli_32 MAMBA F40_128K_MINI
• Protocol: Dshot300/600/1200
• PWM Range: 24~128K
• TVS Protection: Yes
• Mounting Pattern: 20×20 M2/M3

Includes

• 1x Diatone Mamba Basic MK4 F722 Mini F40_128k 2-6S 20×20 Stack/Combo
• 5x M2 Silicone Grommets
• 5x M3 Silicone Grommets
• 5x M2 ESC Isolation Columns
• 5x M3 ESC Isolation Columns
• 1x 8 Pin single-ended cable for flight controller
• 2x 8 Pin Cable
• 1x 6 Pin Air Unit Cable
• 1x XT60
• 1x Capacitor

Wiring Diagram
