Diatone Mamba MK4 F740 3-6S AIO Whoop/Toothpick Flight Controller W/ 40A 32Bit 4in1 ESC – BASIC
Original price was: $13.00.$9.10Current price is: $9.10.
- Efficiency meets excellence in customer care.
- Your needs, our top priority.
- Best price, safe shopping guarantee
- Fast reliable delivery options

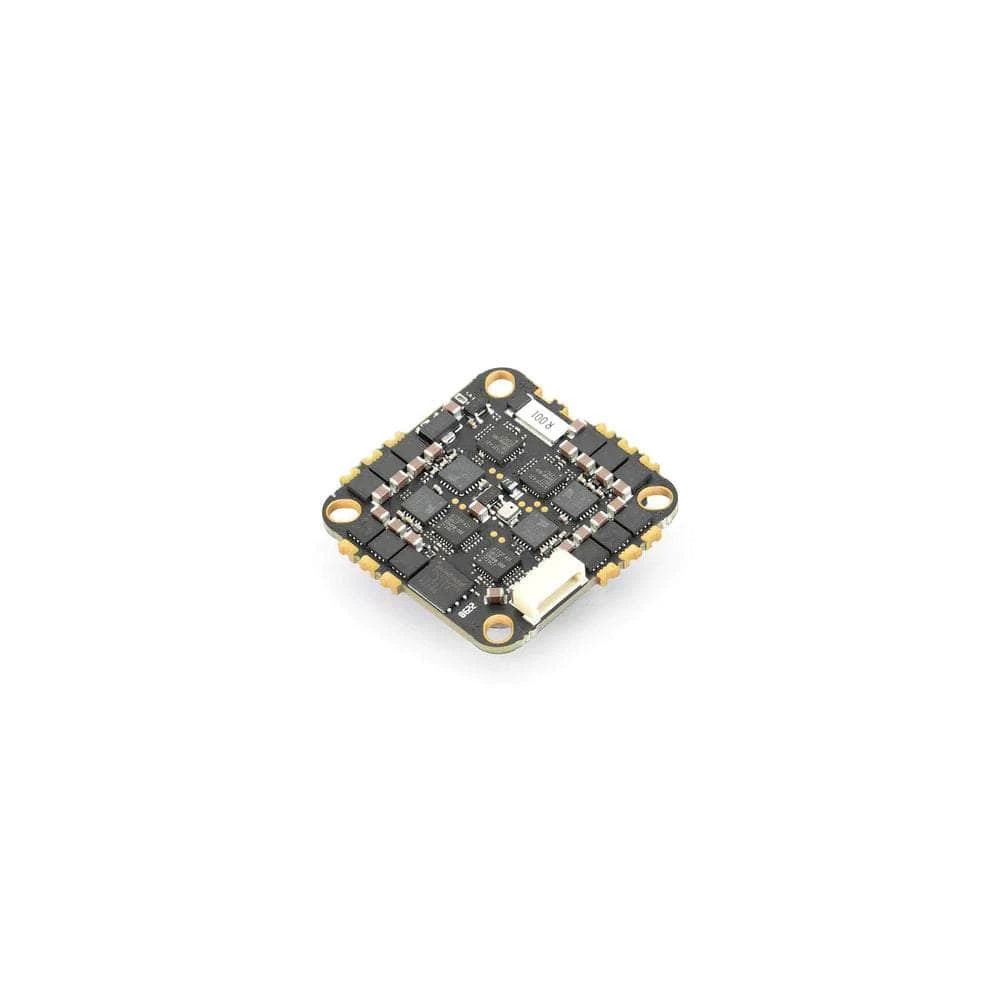

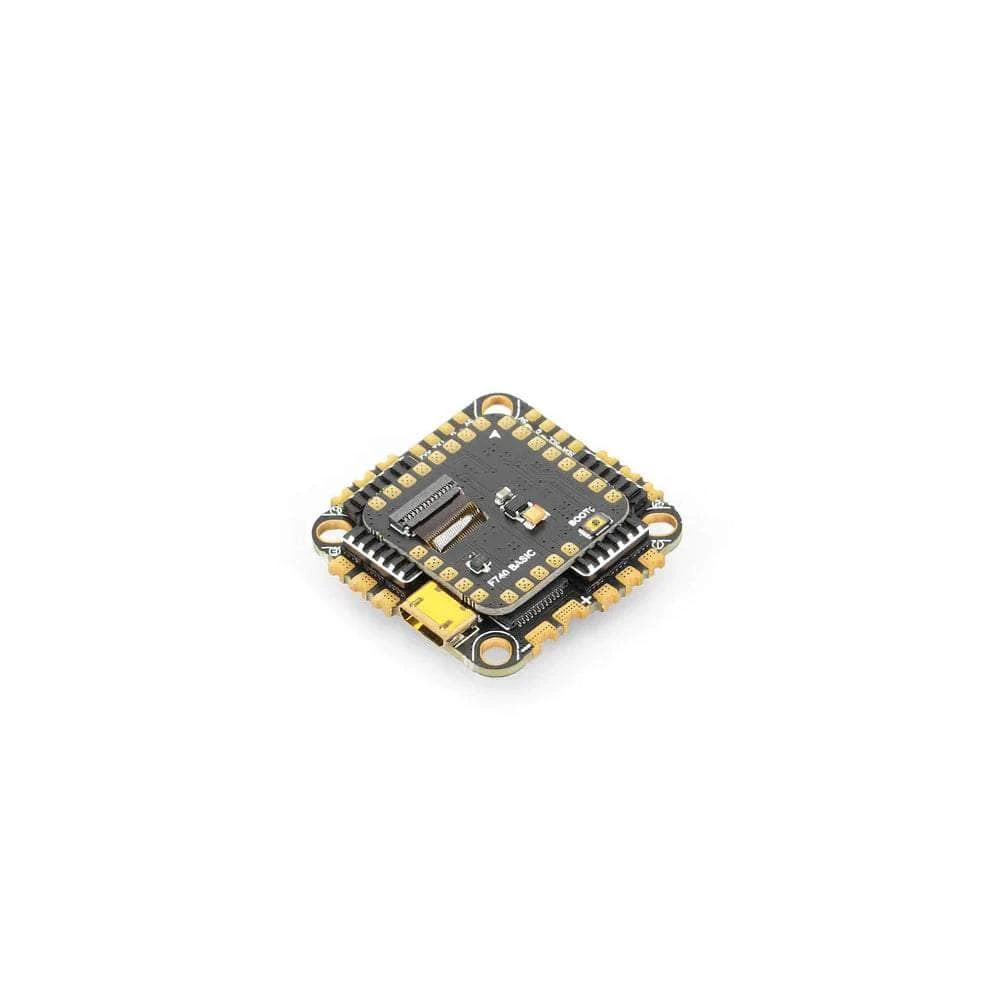

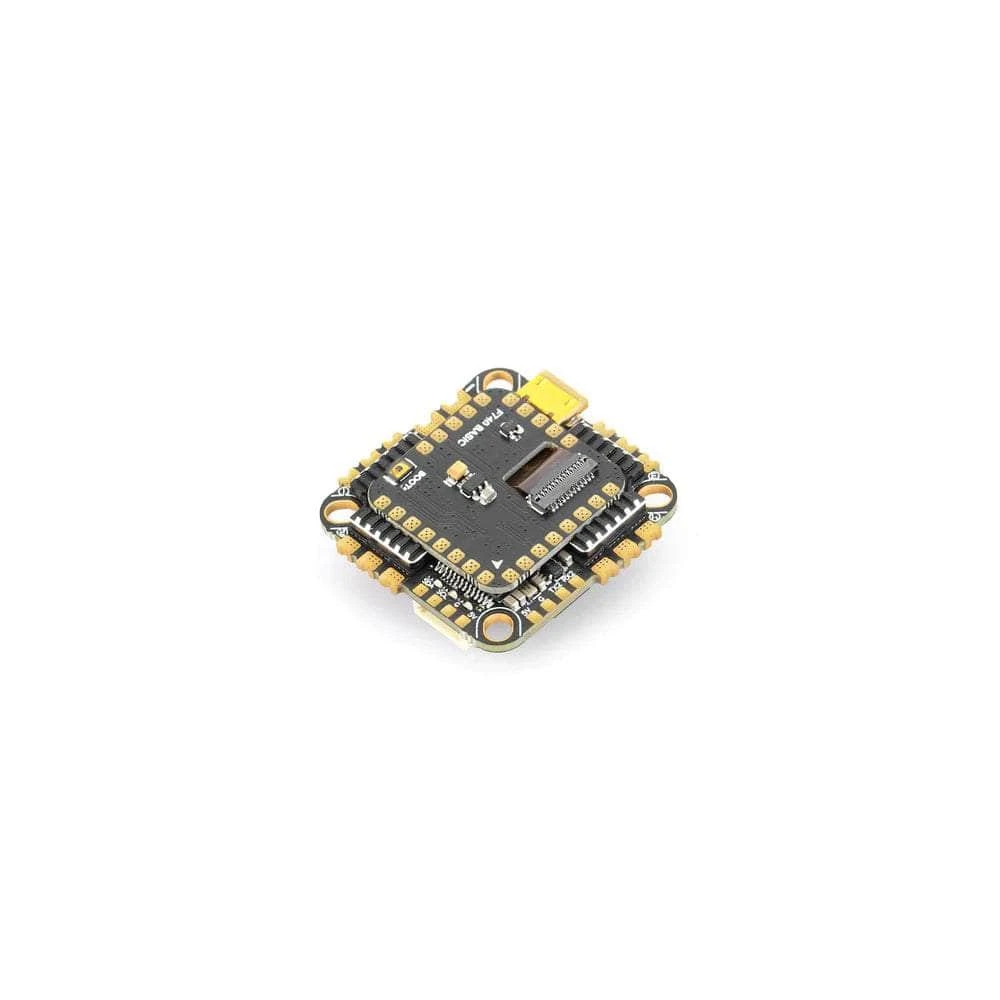

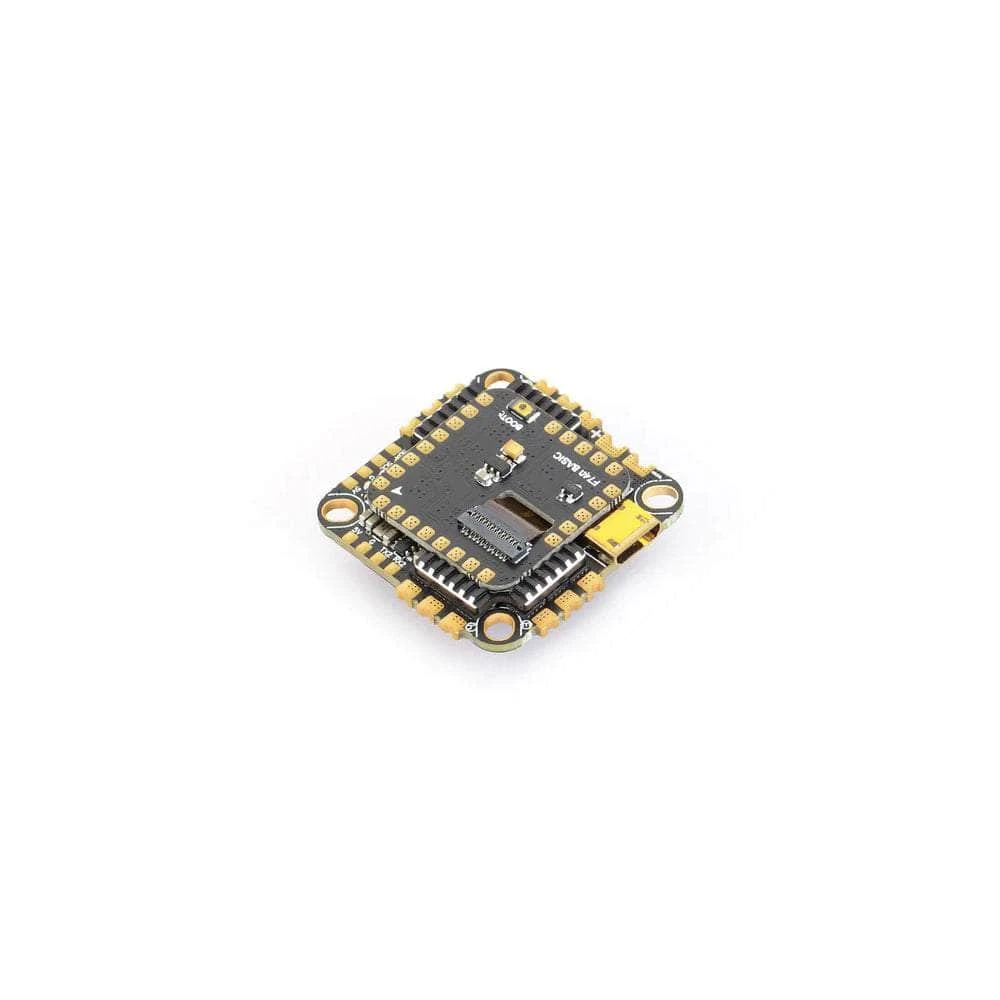

Now this is something truly special for its size and capability – Introducing the Diatone Mamba MK4 F740 AIO. The Diatone Mamba MK4 F740 AIO is a powerful, all-in-one flight controller and ESC for sub 250g 3, 4, and 5 inch quads. It is equipped with an F7 processor, a 32Bit 4in1 ESC of up to 40A, a barometer and OSD chip, and 16M of Blackbox memory. Connecting a video transmitter is easy and efficient, giving you a reliable and versatile system.
Check out all our
Whoop/AIO Flight Controllers
and our full
Diatone collection!
.
FC Specifications
- Target: MAMBA F722_2022B
- MCU: 216MHz STM32F722
- GYRO: ICM-42688-P
- Barometer: Yes
- OSD: Yes
- Blacbox: 16MB Flash
- Uarts: 6 Set
- Motor Signal: 4 Set
- ESC Soft: Dshot300/600
- ESC Telemetry: Yes
- Power Led: Yes
- LED Controller: BF LED
- AIR UNIT Port: Yes
- WIFI: No
- F.Port: Yes
- RSSI: No
- Buzz: Yes
- Input: 3~6S Lipo (12.6~25.2V)
- BEC Protection: Yes
- Receiver Protection: Yes
- TVS Protection: Yes
- BEC: 3.3V 0.5A & 5V 2A
- Mounting size: 25.5 x 25.5mm/M2
ESC Specifications
- Input: 3~6S Lipo (12.6~25.2V)
- Continue Current: 40Ax4
- Burst current: 45A (10 Seconds)
- Target：BLHeli_32 MAMBA F40_128K
- SOFT: Dshot300/600
- PWM:24~128K
Include
- 1x Diatone Mamba MK4 F740 3-6S AIO Whoop/Toothpick Flight Controller w/ 40A 32bit 4in1 ESC – BASIC
- 1x High Frequency 470uF/35V
- 1x AIR UNIT sh1.0
- 1x 16AWG 60mm
- 1x AMASS Original XT60
Wiring Diagram
