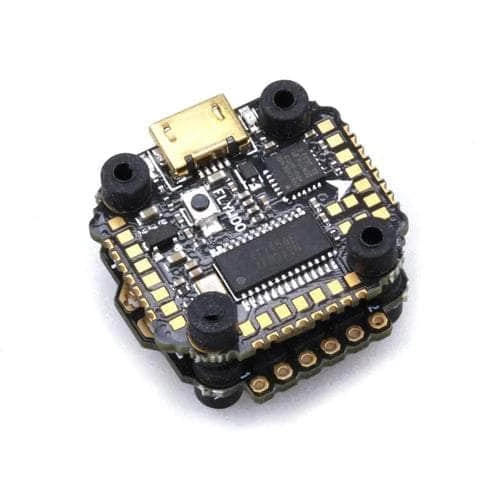

Flywoo GOKU GN405 2-4S 16×16 Stack/Combo (GN405 NANO FC / 13A 4in1 ESC)

With an already impressive lineup of flight controllers, Flywoo has released the GOKU GN405 Nano. An economical and durable stack, the GN405 is packed with features including a barometer, 16MB black box, 6 complete hardware serial ports, I2C functionality, and WS2812 LEDs on each corner.

It is specifically designed to be pin mounted to the GOKU BS13A / 35A 4-in-1 16×16 ESCs but can also be soldered via pads. The programmable WS2812 LED on each corner provides low-profile lighting for this tiny FC

Check out all our

16×16 stacks,

 and our

Flywoo gear selection

!

Specifications

GN405 NANO FC

• Dimensions: 22x22mm
• Weight: 2.3g
• Mounting Pattern: 16×16, M3 Holes
• MCU: STM32F405 BGA
• UARTS: 6 1/2/3/4/5/6
• I2C: SCL/SDA
• GYRO: ICM42688
• BARO: BMP280
• BEC: 5V 2A
• LED: 4x WS2812
• FLASH: 8M
• Input Voltage: 2-6S
• Firmware: FLYWOOF405NANO

BS13A 4-IN-1 ESC

• Support: Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
• Input Voltage: 2-4S Lipo
• Continuous Current: 13A
• Firmware: BLHELI_S
• Mounting Pattern: 16x16mm
• Weight: 2.5g

Includes

• 1x GOKU GN405 &  BS13A 2-4S 16×16 Stack/Combo





Wiring Diagram
