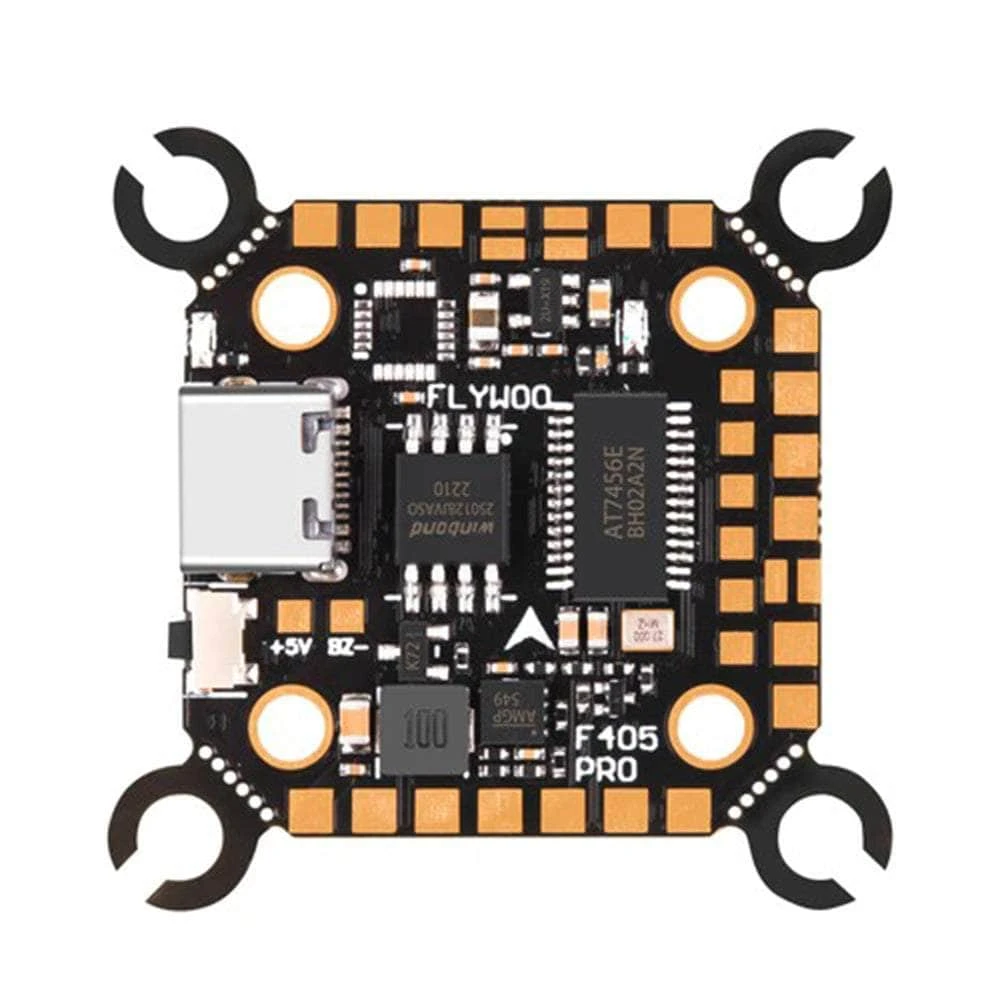

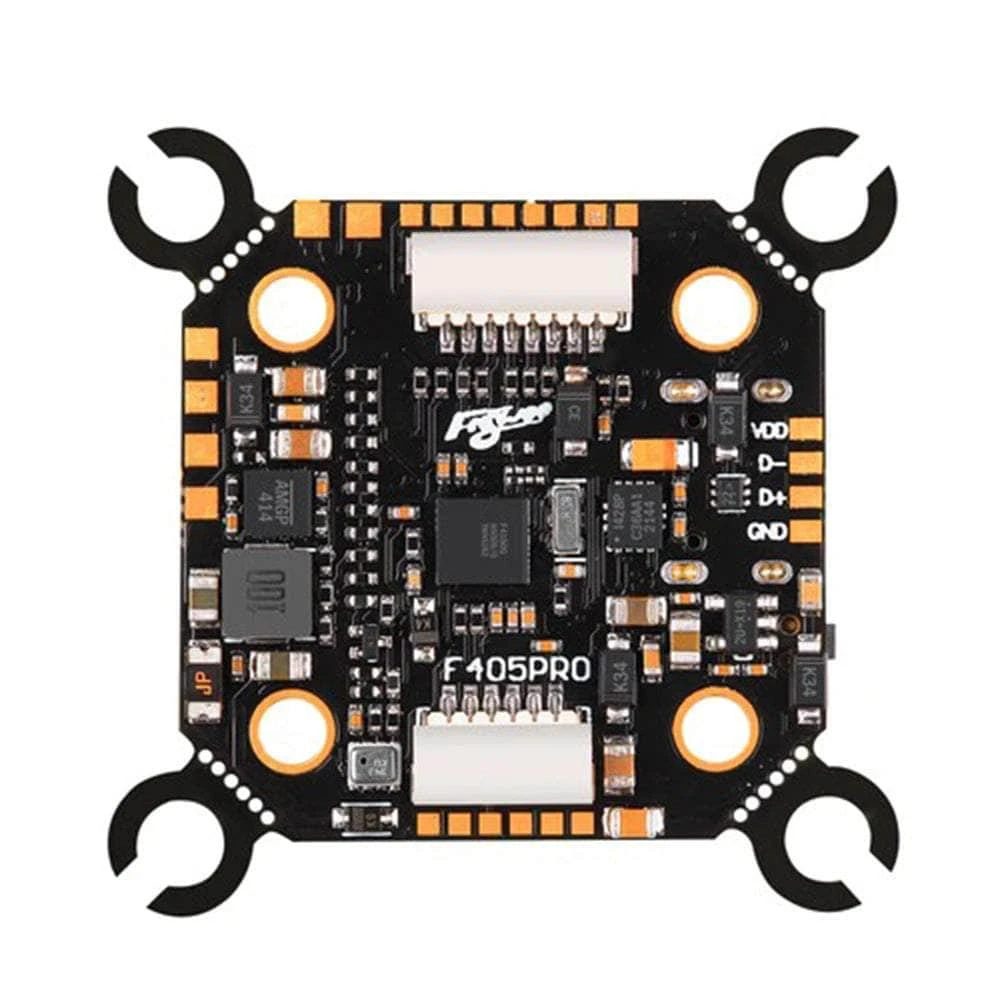

Flywoo Versatile F405 PRO 2-6S 20×20 / 30×30 Flight Controller For DJI

GOKU Versatile F405 PRO FC is a versatile and powerful flight control equipped with the smallest but most powerful f405 BGA Chipsets instead of ordinary QFP (Big Size) MCUs. Perfect for any 20×20 / 30.5 x30.5 build. DJI Plug & Play plug (Older Air Unit and the DJI O3 Air Unit) and so many UARTs that most people wouldn’t even use them all. Compatible with digital and analog FPV, onboard Barometer for possible long-range flights, and much more.

Check out all our

30×30

 and

20×20

FCs and all our

Flywoo products

!

Features

• Perfect for any 20x20mm, 30.5×30.5mm build.
• The FC has super big pads, very easy to solder everything
• Including a barometer, black box, 6 complete hardware serial ports, I2C functionality.
• Dual BEC 5V 2A / 10V 2A
• Universal USB Type C connector instead of micro USB
• Support Betaflight INAV Autopilot

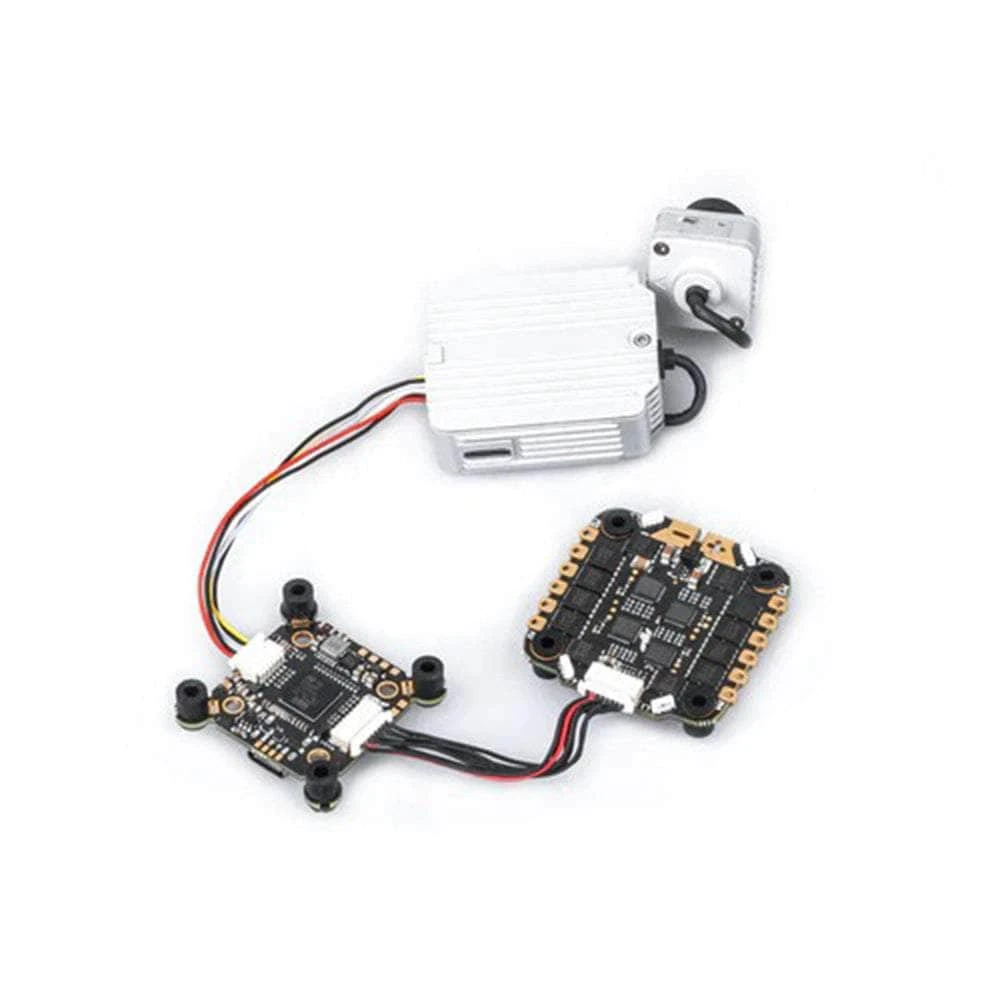

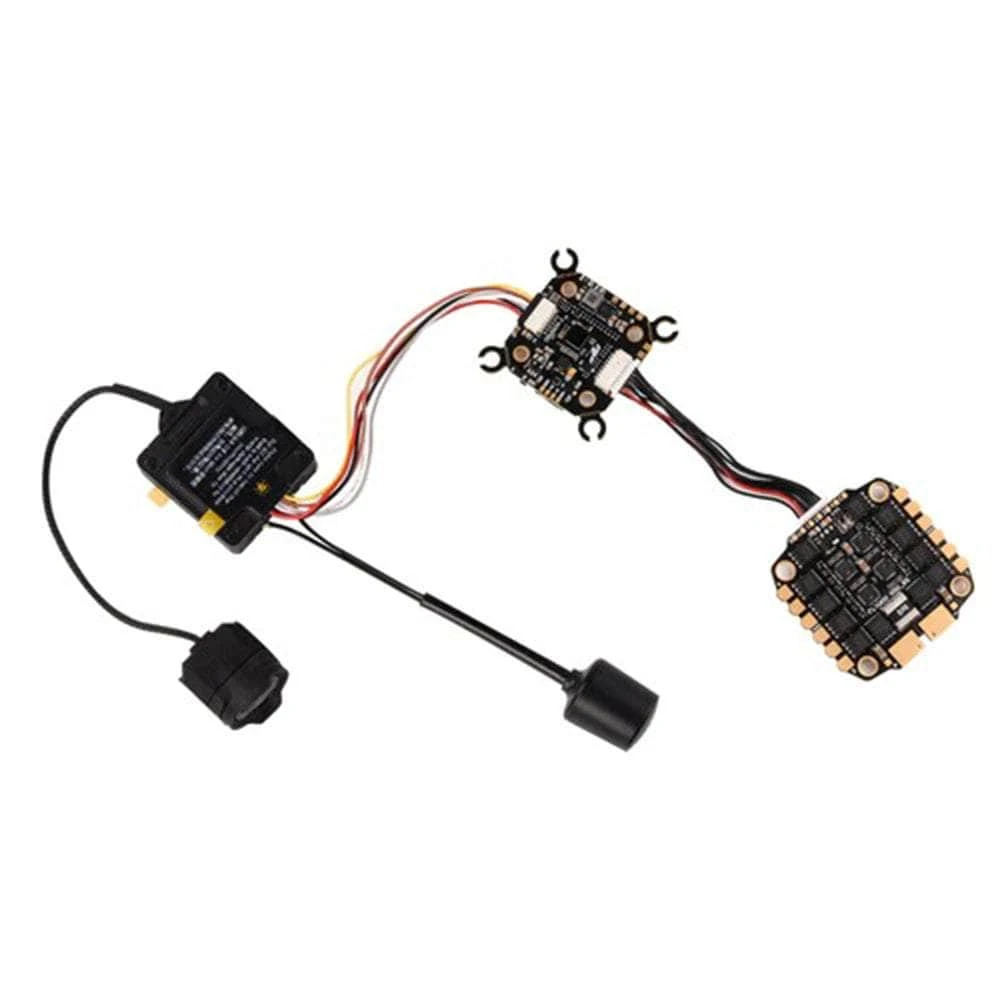

• Connections to both the older Air Unit and the O3 Air Unit

Specification

• MCU: STM32F405BGA
• GYRO: ICM42688
• UARTS: 6 Uarts
• I2C: SCL/SDA
• Barometer: BMP280
• BEC: 5V 2A / 10V 2A
• Blackbox: 16M
• Input Voltage: 2-6S
• Firmware: FLYWOOF405PRO
• Mounting: 20x20mm M3 / 30.5×30.5mm
• ESC Soft: Dshot300/600
• ESC Telemetry: Yes
• LED Controller: BF LED
• USB: TYPE USB
• F.Port: Yes
• RSSI: Yes
• Buzz: Yes
• Input: 2~6S Lipo (8.4~25.2V)
• TVS Protection: Yes
• Weight: 5.5g

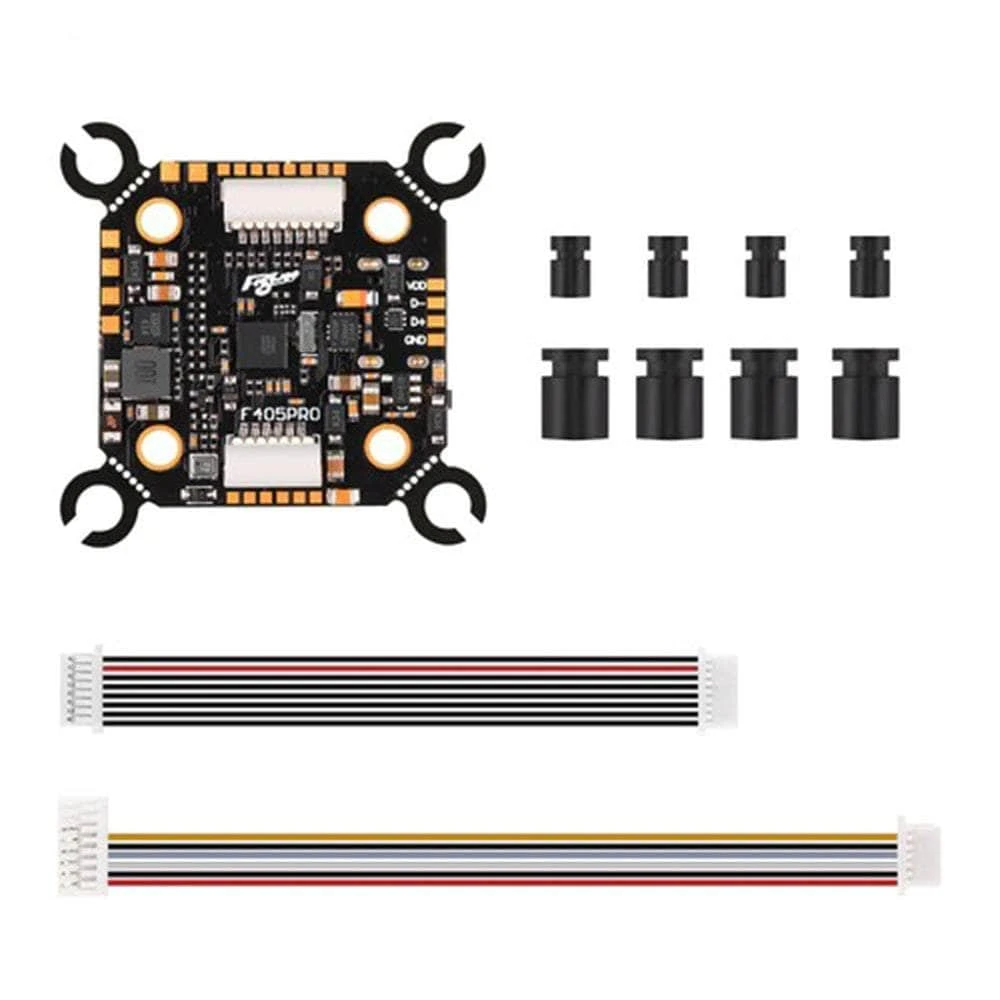

Includes
