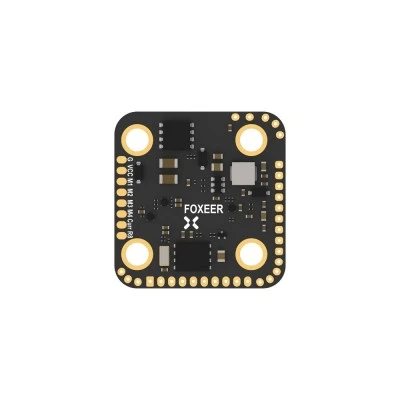

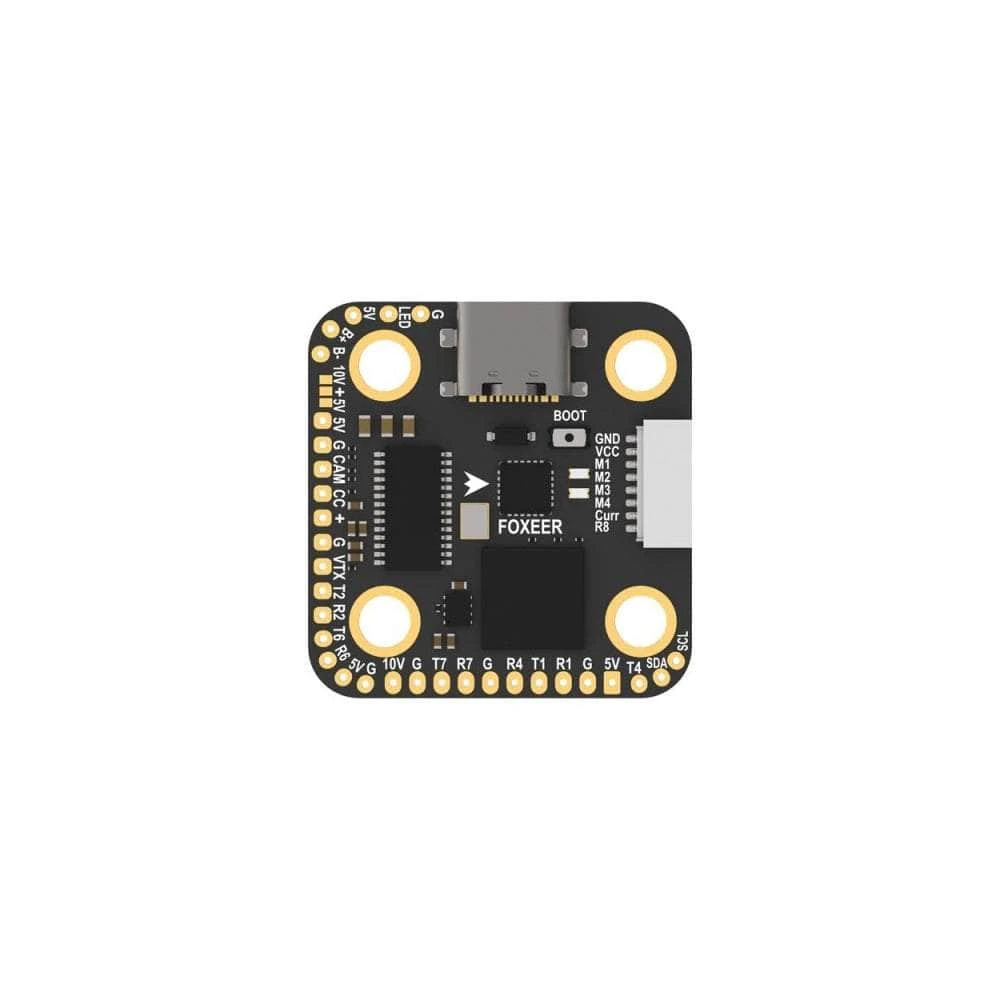

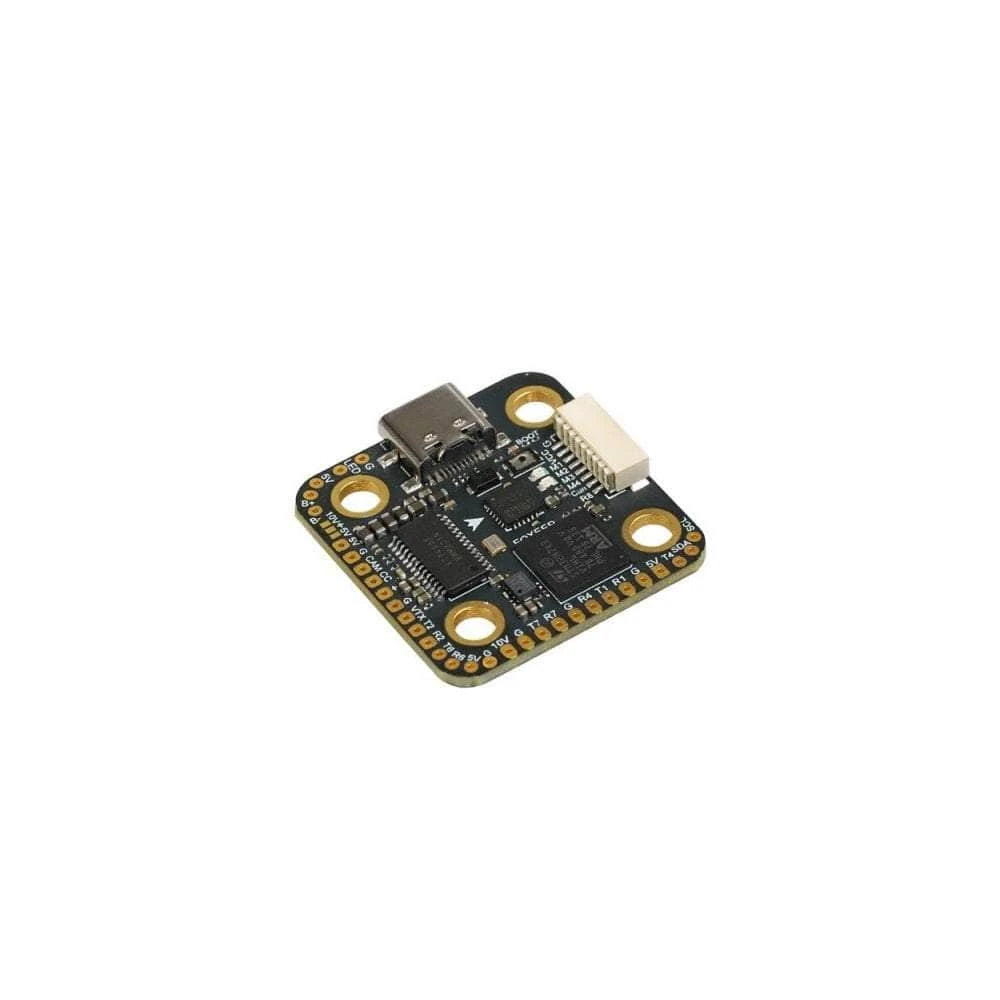

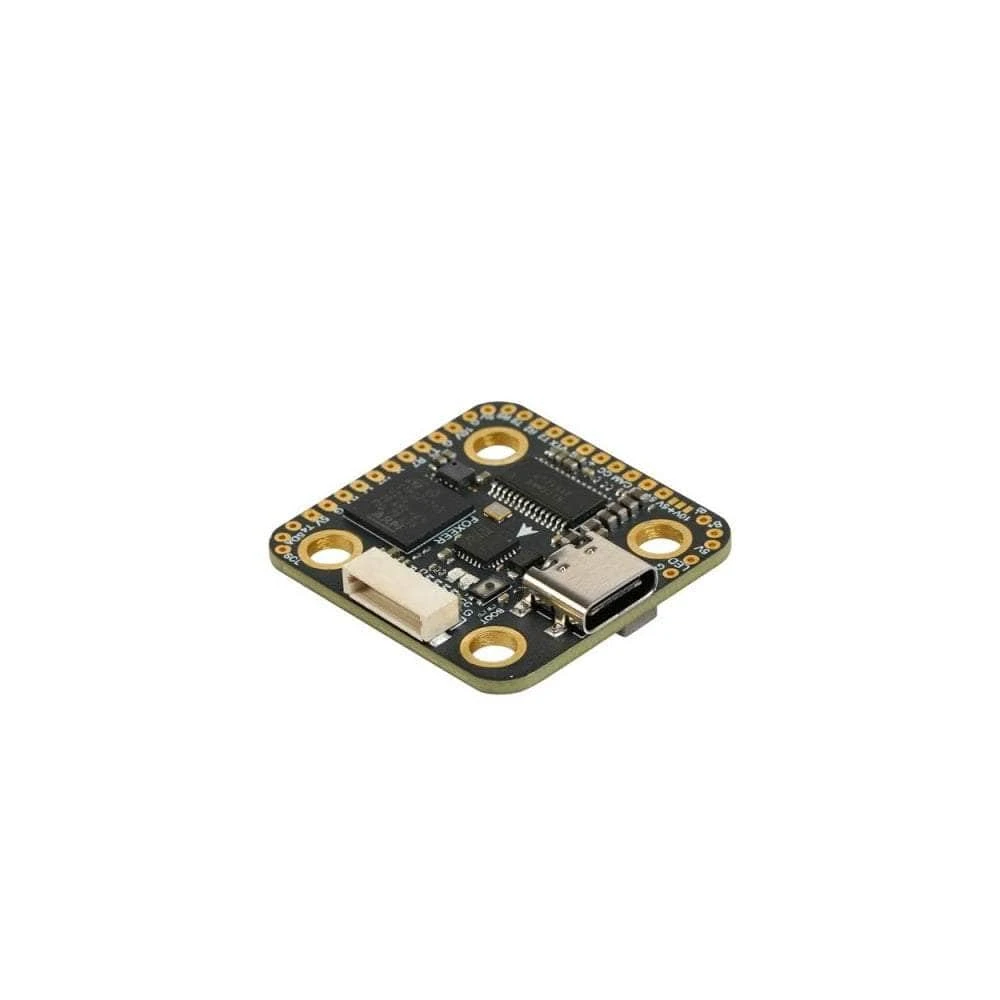

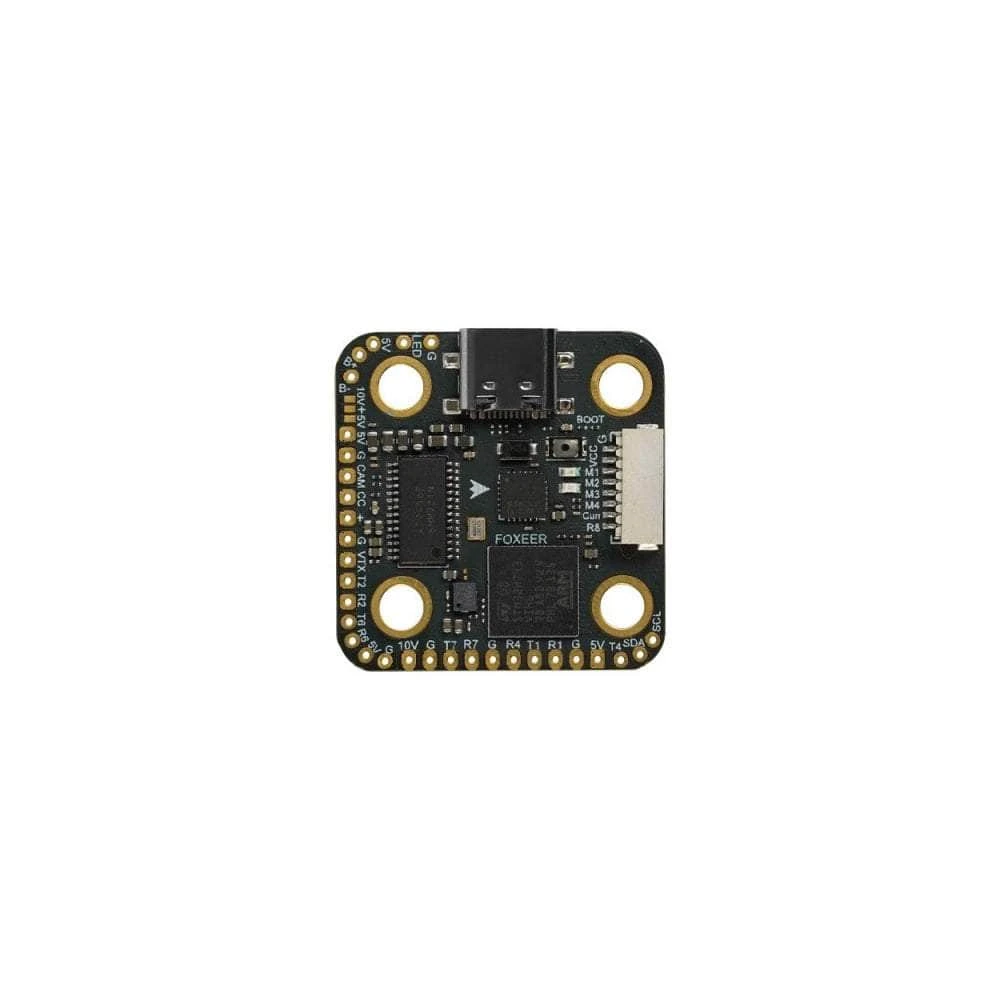

Foxeer H743 Mini X8 4-8S 20×20 Dual BEC Barometer Flight Controller – MPU6000
Original price was: $13.65.$9.56Current price is: $9.56.
- Efficiency meets excellence in customer care.
- Your needs, our top priority.
- Best price, safe shopping guarantee
- Fast reliable delivery options
The Foxeer H7 Mini X8 20×20 Flight Controller offers reliable performance with its dual BECs and MPU 6000 gyro. It’s capable of operating on 4-8S batteries and boasts a barometer for improved stability and altitude control, making it a great choice for drone enthusiasts.
Check out our
20×20 FCs
, as well as
Foxeer Collection!
Specifications
- Model: Foxeer H7
- CPU: STM32H743
- Gyro: MPU6000
- Barometer: DPS310
- Power Supply: 4-8S Lipo
- BEC Output: DC5V/2A; DC10V/2A
- OSD: BF OSD
- Black Box: 16M Flash Memory
- UART: 6 Sets+Rx8
- ESC Telemetry: RX8
- Buzzer: Yes
- Smart Audio: Yes
- LED: 1 Set 2812 LED
- USB: Type-C
- Servo: S1,S2
- X8: Supported
- Firmware(BetaFlight): FOXEERH743
- Size: 30X31mm
- Mounting Hole: 20 x 20mm, Φ4mm
- Weight(g): 5.6g
- Working Temperature: -20℃ ~ +55℃
- Working Humidity: 20～95%
- Storage Temperature: -20℃ ~ +70℃
Includes
- 1x Foxeer H743 Mini X8 4-8S 20×20 Dual BEC Barometer Flight Controller – MPU6000
- 4x Rubbers Columns
