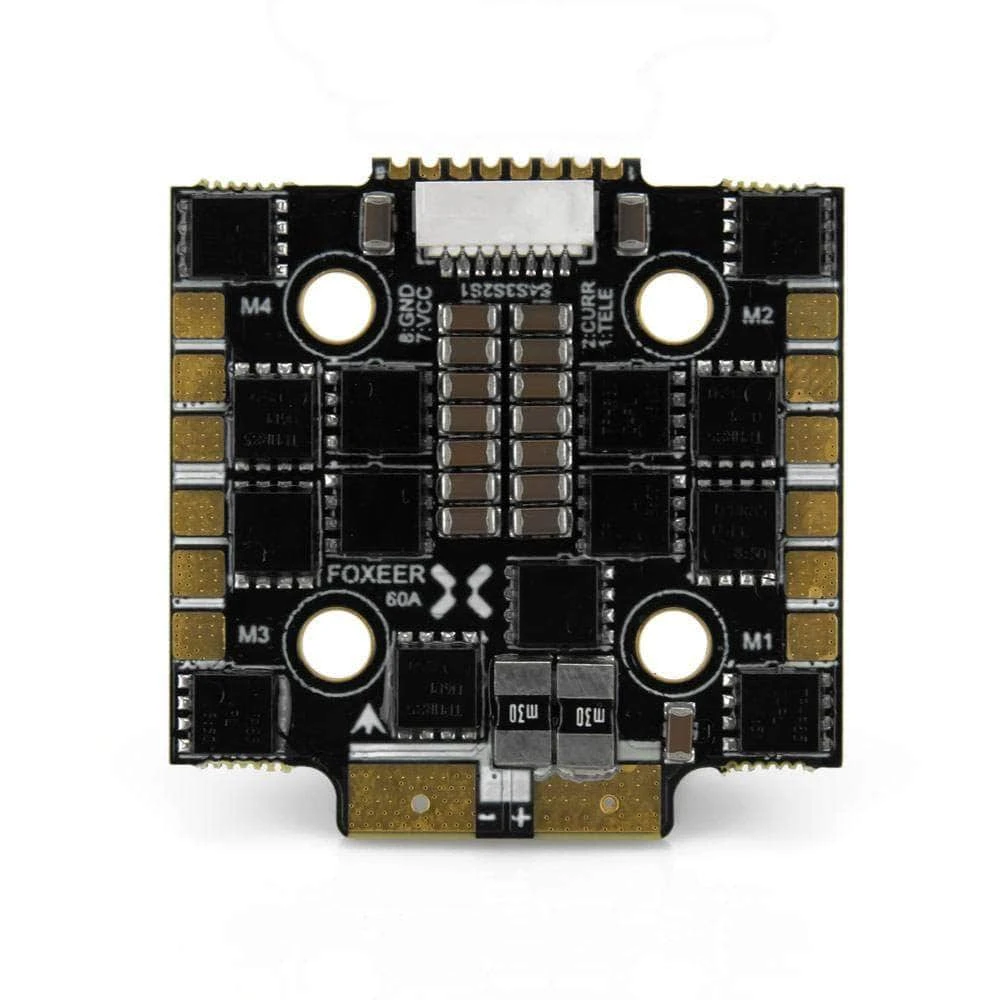

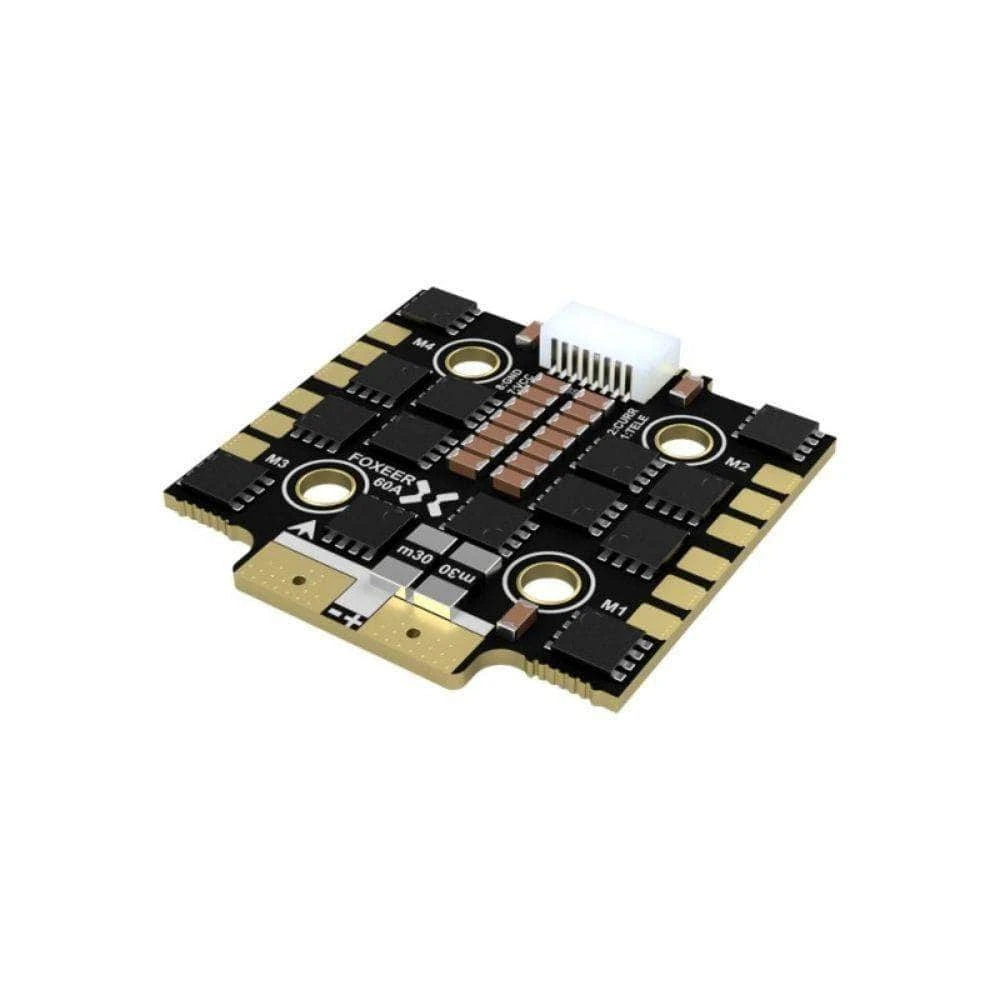

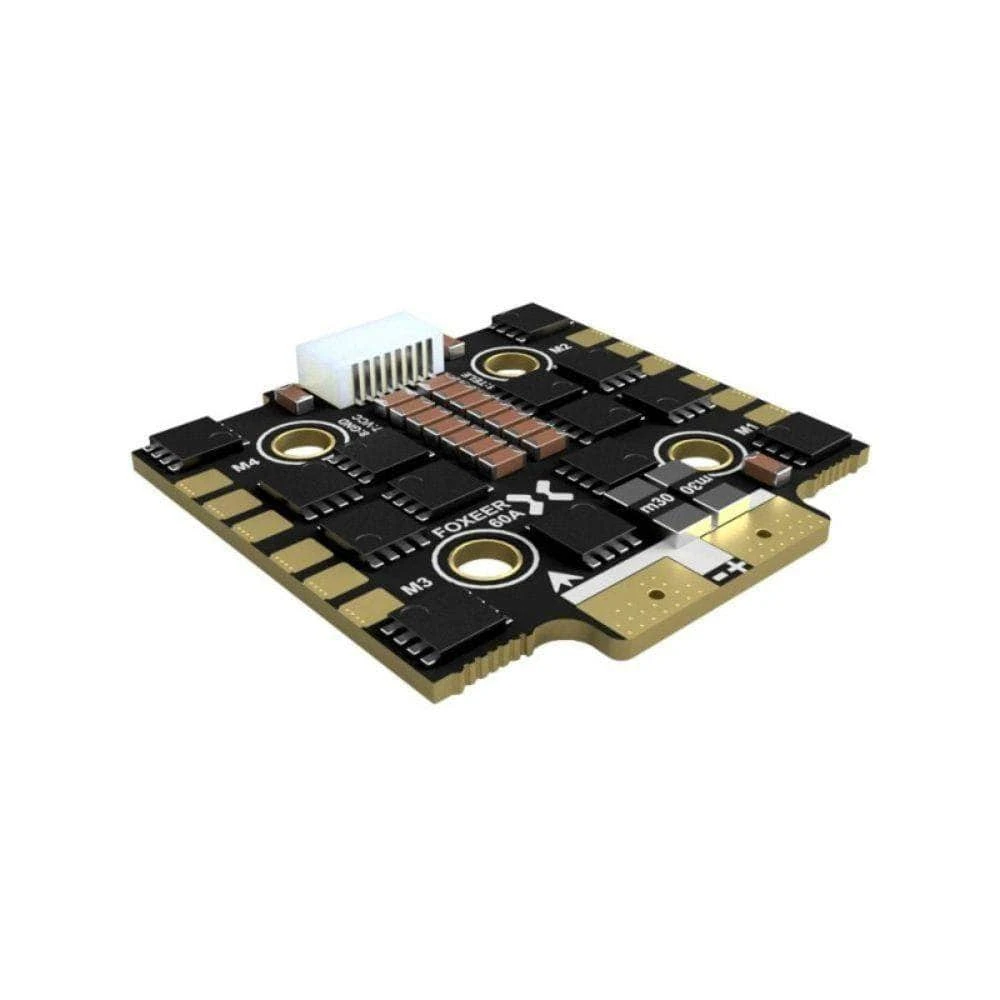

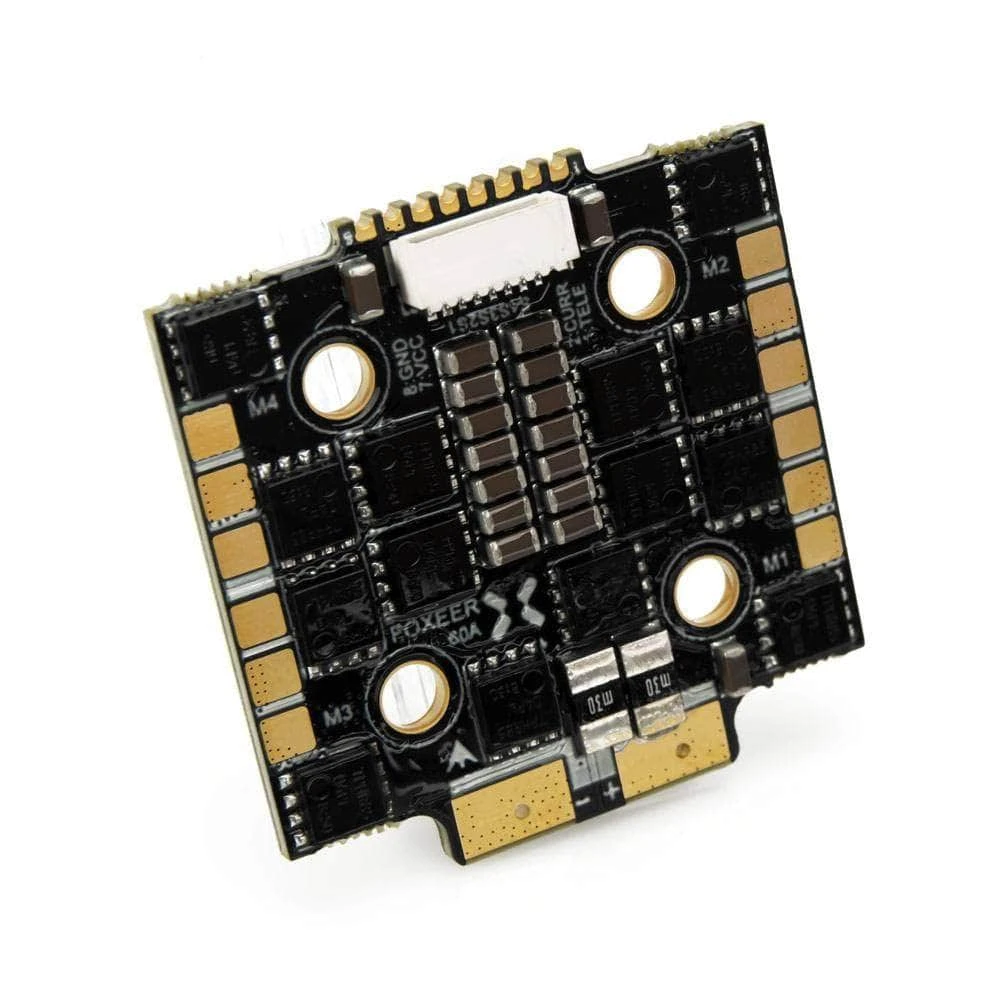

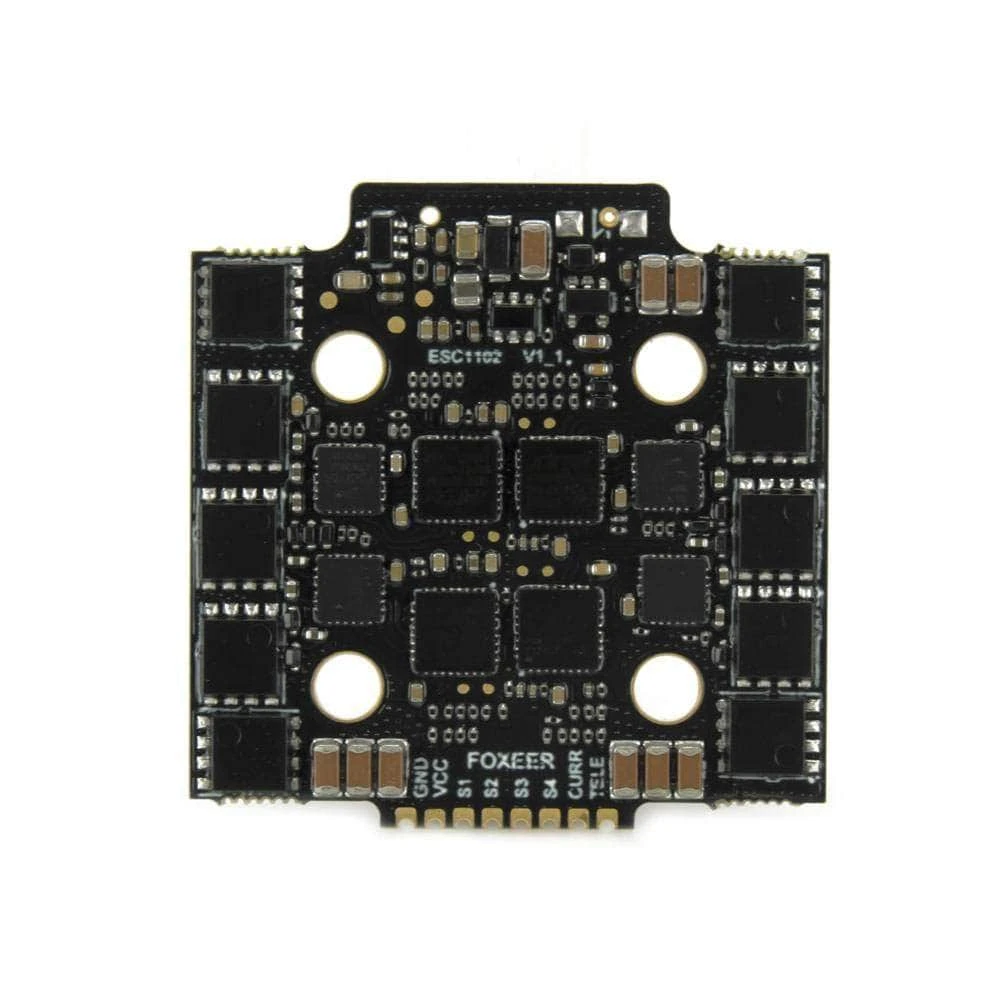

Foxeer Reaper F4 Mini 128k 32bit 60A 3-8S 20×20 4in1 ESC

We’ve come to expect the best out of Foxeer and the Foxeer Reaper series is their flagship series with high-quality electronics. The Foxeer Reaper F4 Mini ESC is precisely what we come to expect out of our ESCs. Fewer desyncs thanks to the powerful F4 chip. Bigger, high-quality MOSFETs, super smooth flights and supports input voltage up to 40V. It’s no wonder why Foxeer is a leader in the industry with their excellent Reaper series.

Check out the rest of our

20×20 ESCs

, as well as the rest of our

Foxeer

 offerings!

Features

• 3-8S LiPo Compatibility
• 60 Amperage
• F4 Processor

Specifications

• Firmware: FOXEER_ReaperM4IN1_F4_60A_128_Multi_32_9
• Continuous /Burst Current: 60Ax4 / 100Ax4
• Input Voltage: DC 9V~40V (3-8S Lipo)
• BEC: No
• Telemetry: Supported
• ESC Programming: BLHeli32
• Current Scaling: 70
• Input Signal: DShot 150/ 300/ 600/ 1200 /MultiShot/ OneShot etc.
• Working Temperature: -20℃ ~ +55℃
• Working Humidity: 20～95%
• Storage Temperature: -20℃ ~ +70℃
• Mounting Hole: 20×20mm, Φ4mm/ M3
• Dimension: 40.5×40×5.5mm
• Weight: 13.5g

Includes

• 1x Foxeer Reaper F4 32bit 60A 3-8S 20×20 4in1 ESC
