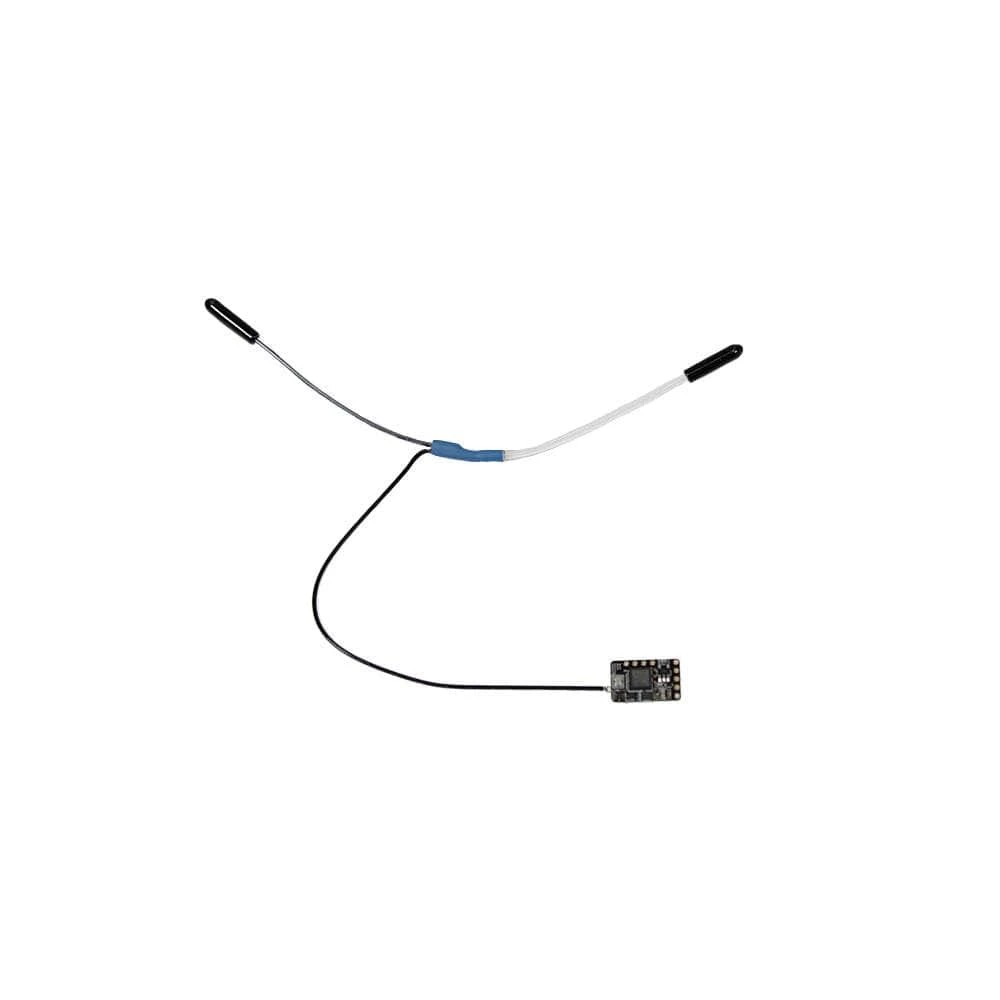

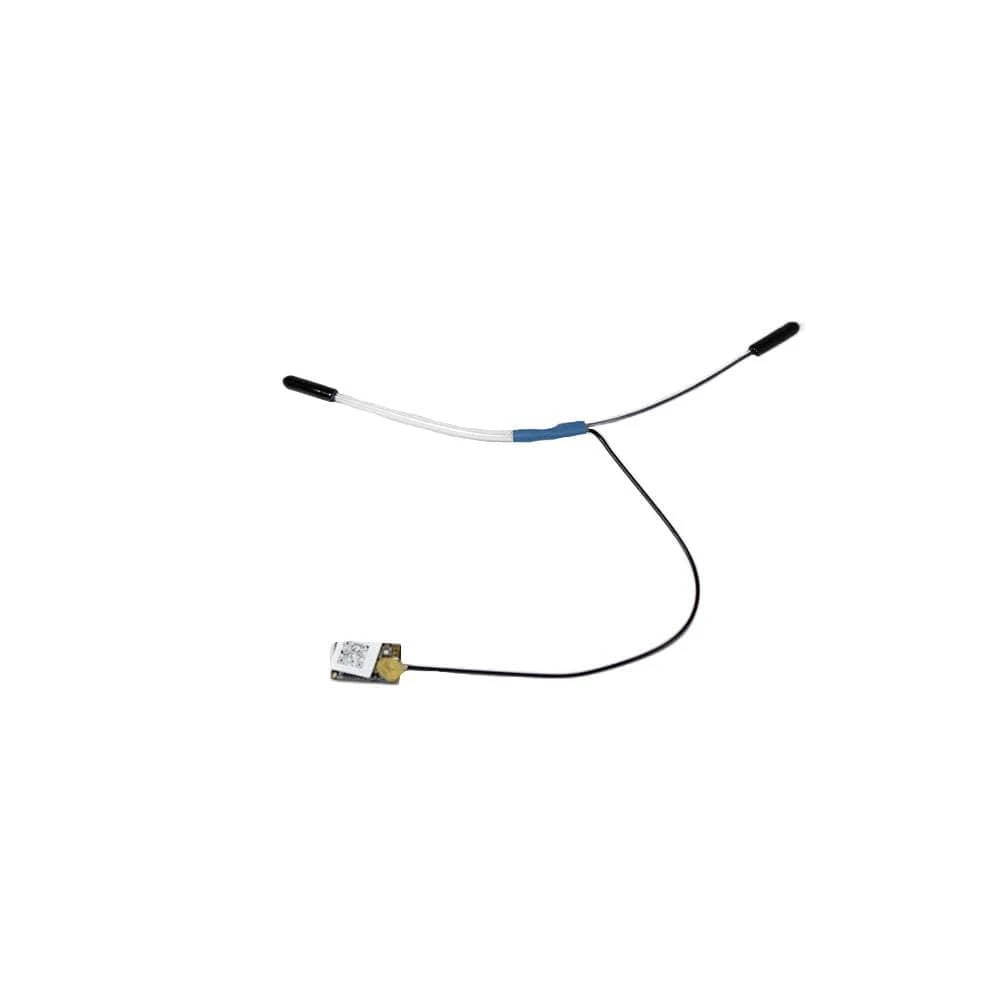

FrSky R9MM OTA 900MHz Micro Receiver – ACCESS

The 900MHz R9 MM-OTA receiver implements the ACCESS protocol and brings the user improved performance and features. The R9 MM-OTA supports wireless firmware updates over the air making binding to receivers even easier. As well as the convenience of checking the current receiver firmware version. The R9 MM’s compact form factor design is also carried over to the OTA version, and the R9 MM-OTA supports inverted S.Port as well.

This receiver is compatible with the new release

R9M Lite Pro module

,and the other 915MHz modules will also be supported when the ACCESS firmware is available.

We also carry the

R9 Mini OTA receiver

if you prefer redundancy function instead of inverted S.Port.

Check out the entire

R9 900MHz Long Range RC System

!

Features

• 915MHz (Non-LBT Version)/ 868MHz (LBT Version)
• Mini size and super lightweight
• Supports OTA firmware update
• Supports firmware version check
• S.Port enabled and support telemetry data transmission
  (Support F.Port, download firmware to support the function)
• Inverted S.Port enabled
• Low latency and high precision
• With RSSI output in SBUS
• Battery voltage detection supported
• Detachable Ipex connector antenna

Specifications

• Dimension: 16 x 10 x 2.8mm (L×W×H)
• Weight: 0.7g (without antenna)
• Number of Channels:
  Non-LBT Version: 4/16CH (Telemetry)
  LBT Version: 4/16CH (Telemetry) / 4/16CH (No Telemetry)
• Operating Voltage Range: DC 3.5V – 10V
• Operating Current: 100mA@5V
• Operating Range: Up to 10km or above
• Compatibility: R9 series 900MHz module (ACCESS protocol)

Includes

• 1x FrSky R9MM OTA SBUS Long Range 900MHz Micro Receiver
• 1x T Dipole Antenna
