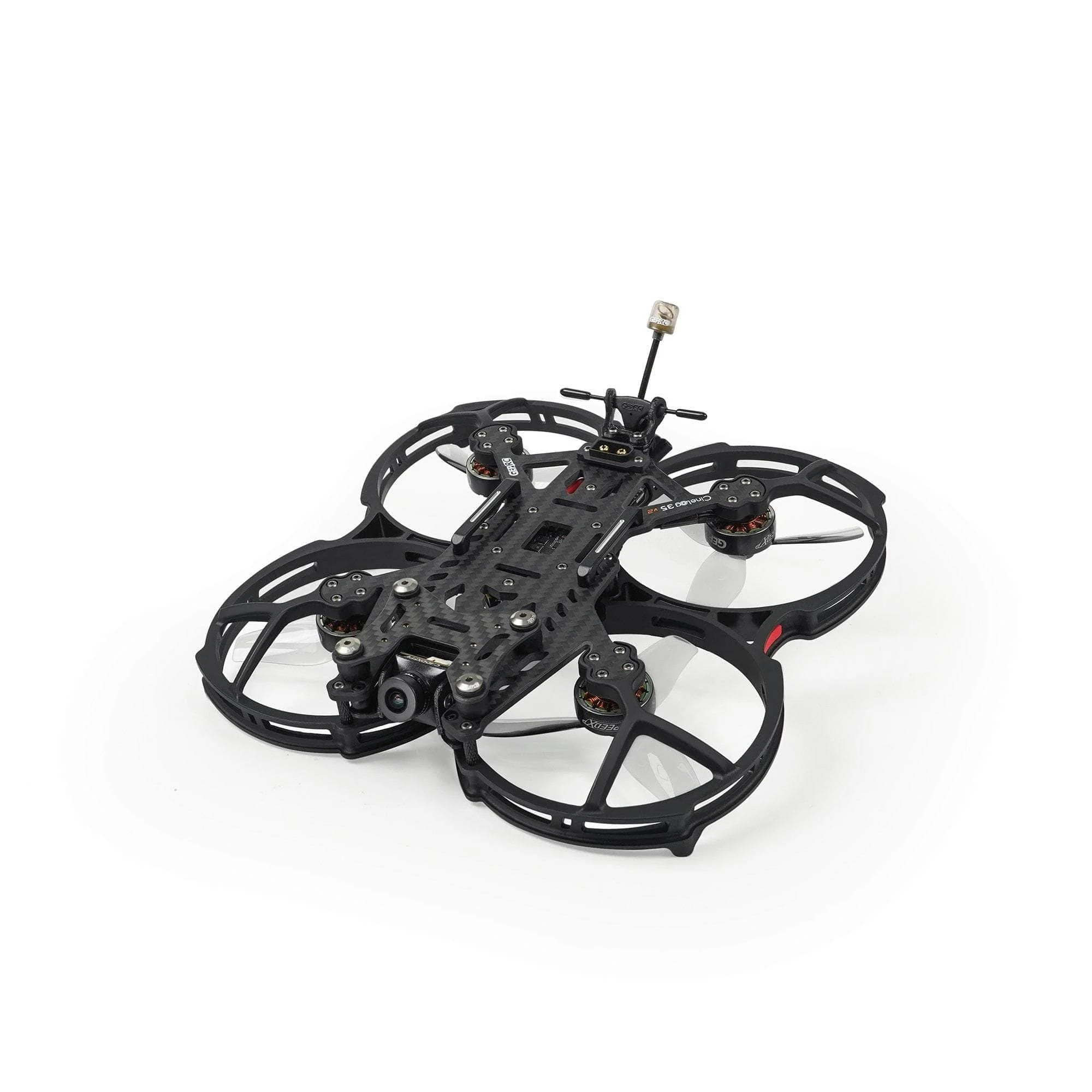

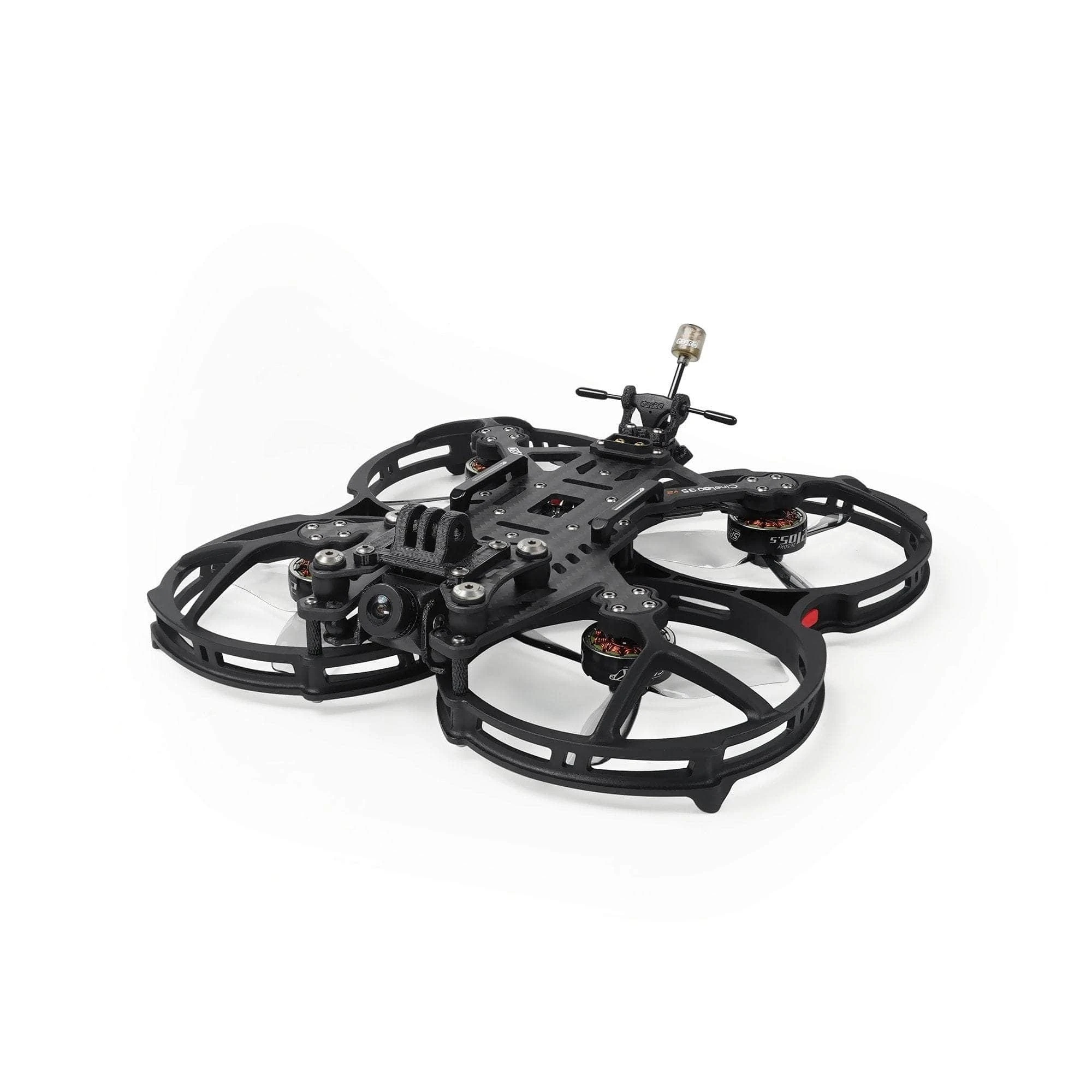

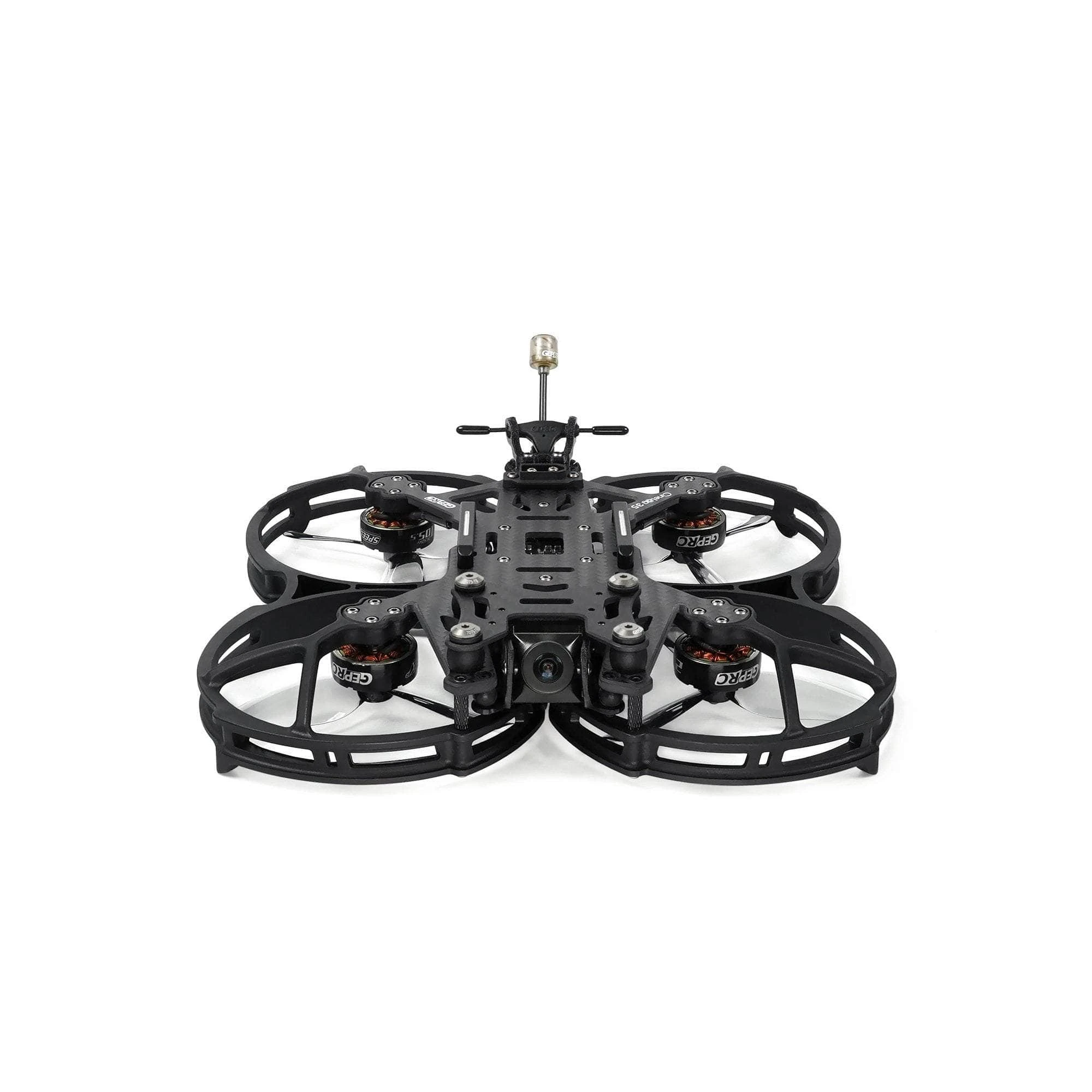

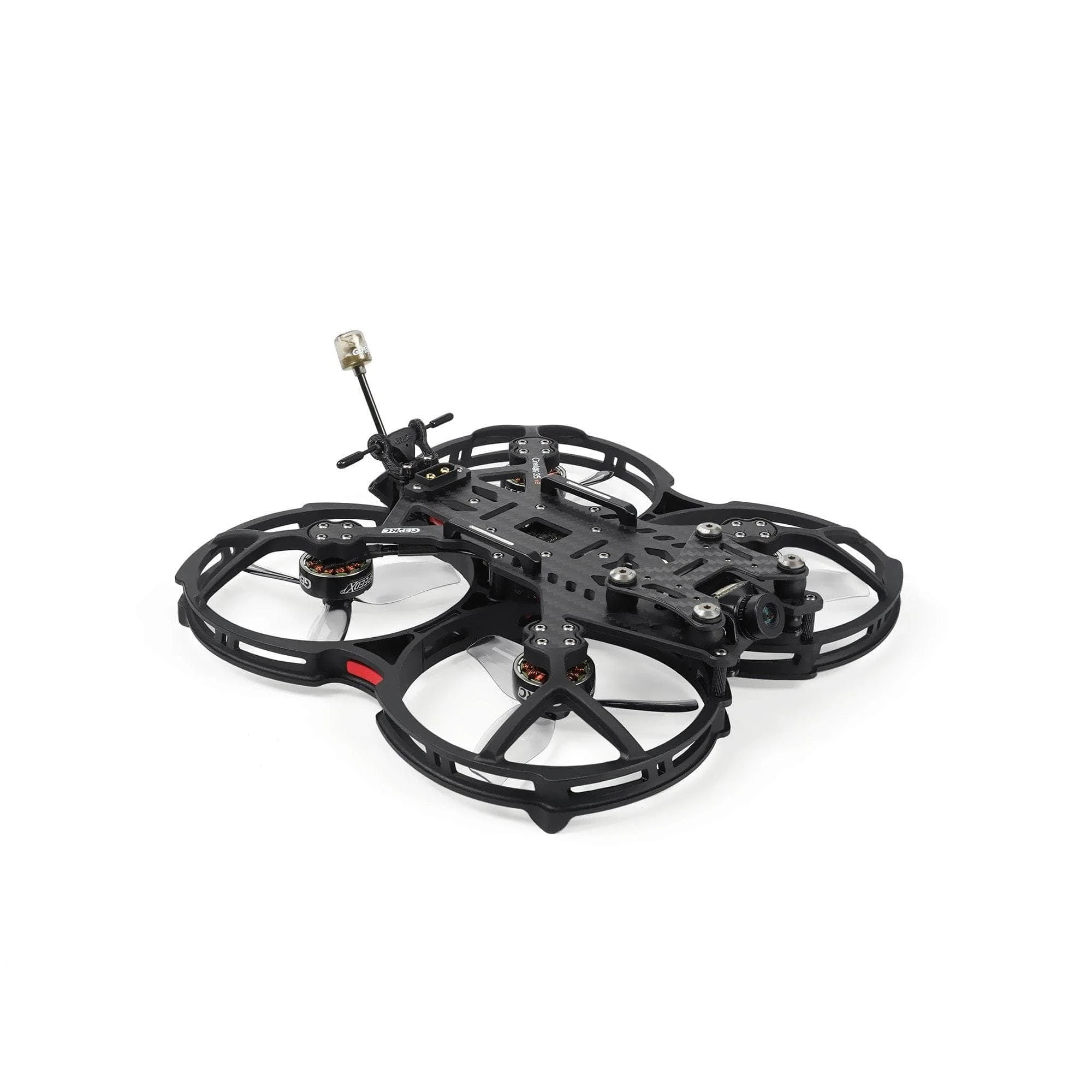

GEPRC BNF CineLog35 V2 Analog 6S 3.5″ Cinewhoop – ELRS 2.4GHz (GPS)

Features

• New appearance design, strengthening carbon plate, hollow design, injection protection frame, noise reduction design, flight safety, silent.
• Adopts the GEP F722-45A AIO V2 high performance flight controller.
• SPEEDX2 2105.5 motor with HQ DT90 propeller, stable power output, and smooth flight feel.
• Power cable using XT60E1-M plug and carbon plate integrated design, convenient application.
• Battery installation method using a tie with 7075 aluminum parts fixed, solid and stable.
• Carefully tuned 3.5-inch cinematic FPV quad with flexible and delicate flight feeling.
• Pre-Installed with a M8U GPS



Specifications

• Model: Cinelog35 V2 Analog
• Frame: GEP-CL35 V2
• Wheelbase: 142mm
• Gimbal Plate: 2.0mm
• Top Plate: 3.5mm
• Bottom Plate: 1.5mm
• FC system: GEP-F722-45A AIO V2
• MCU: STM32F722RET6
• Gyro: ICM 42688-P
• OSD: Betaflight OSD w/AT7456E chip
• ESC: 8Bit 45A
• VTX: GEPRC RAD 1W(UFL)
• Camera: Caddx Ratel2
• Antenna: GEPRC Peano 5.8 RHCP UFL
• Motor: SPEEDX2 2105.5-2150KV (6S)
• Propeller: HQProp D-T90MM
• GPS: GEP-M8U
• Receiver: ELRS2.4G
• Weight: 262g
• Recommended battery: LiPo 1050mah-1300mah
• Flight time: 5′00″ – 8′ 30″

Includes

• 1x GEPRC BNF CineLog35 V2 Analog 6S 3.5″ Cinewhoop – ELRS 2.4GHz (GPS)
• 2x HQProp D-T90MM（2 pairs）
• 2x M20 x 250mm battery strap
• 2x Battery Silicone Pads
• 1x Set of screws
• 1x L-shaped screwdriver (1.5mm)
• 1x L-shaped screwdriver (2mm)
• 1x L-shaped screwdriver (3mm)
• 1x M5 wrench
• 1x plastic tweezers
• 1x Antenna fixed tube (pair)
• 1x Keychain
• 1x GP Camera Mounting Base
• 1x Naked GP Camera Mounting Base
• 1x Antenna Mounting Base
