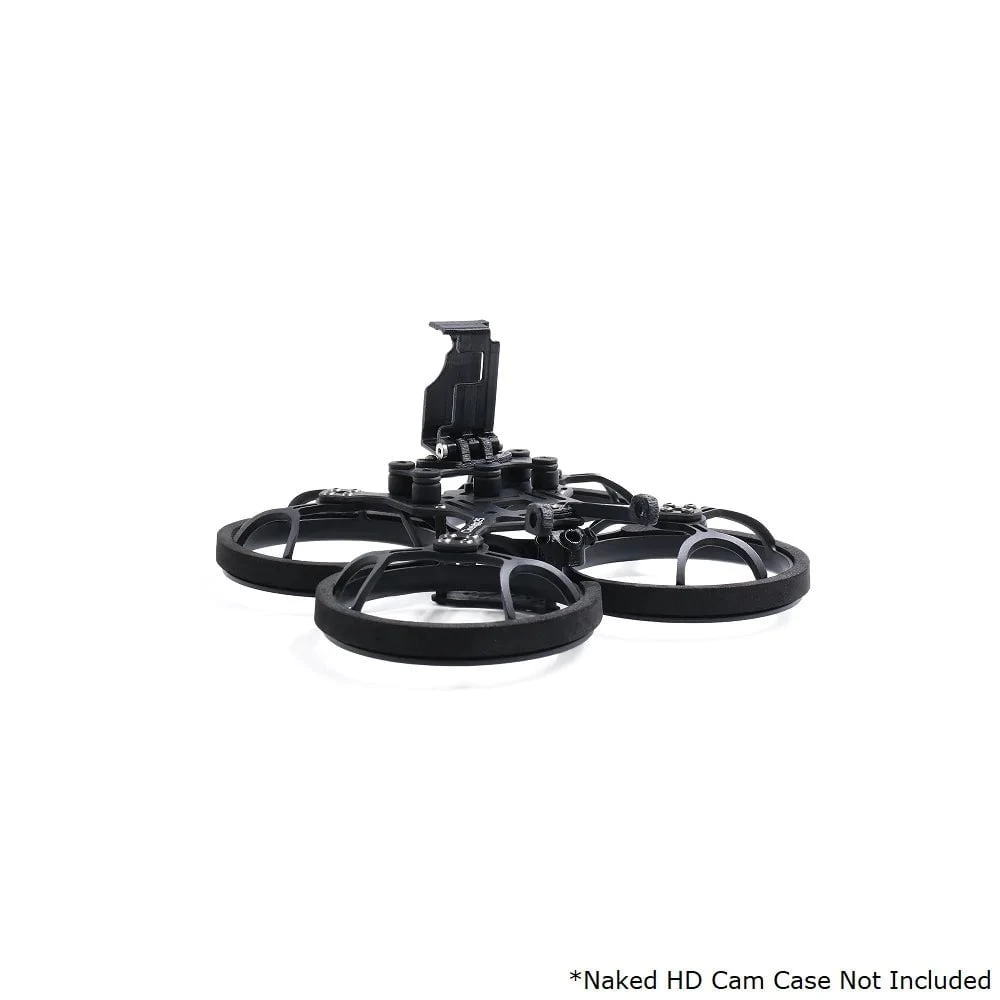

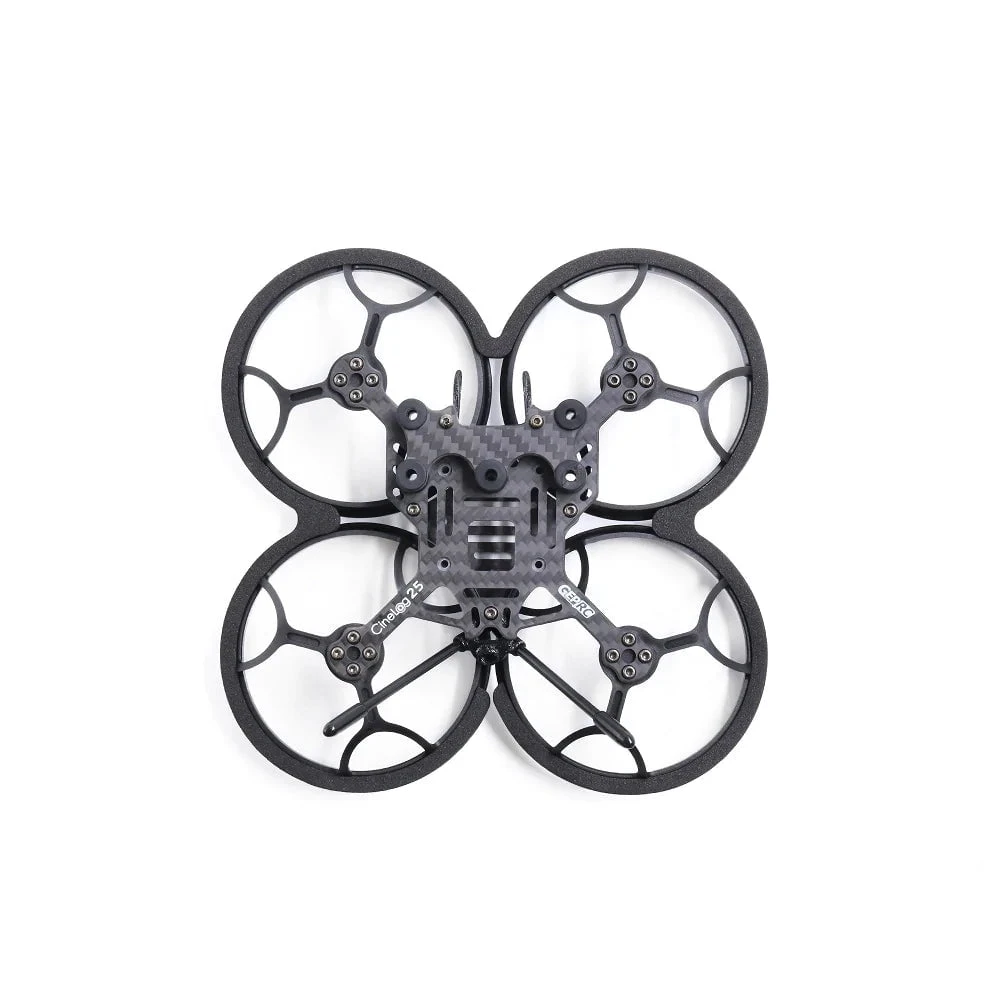

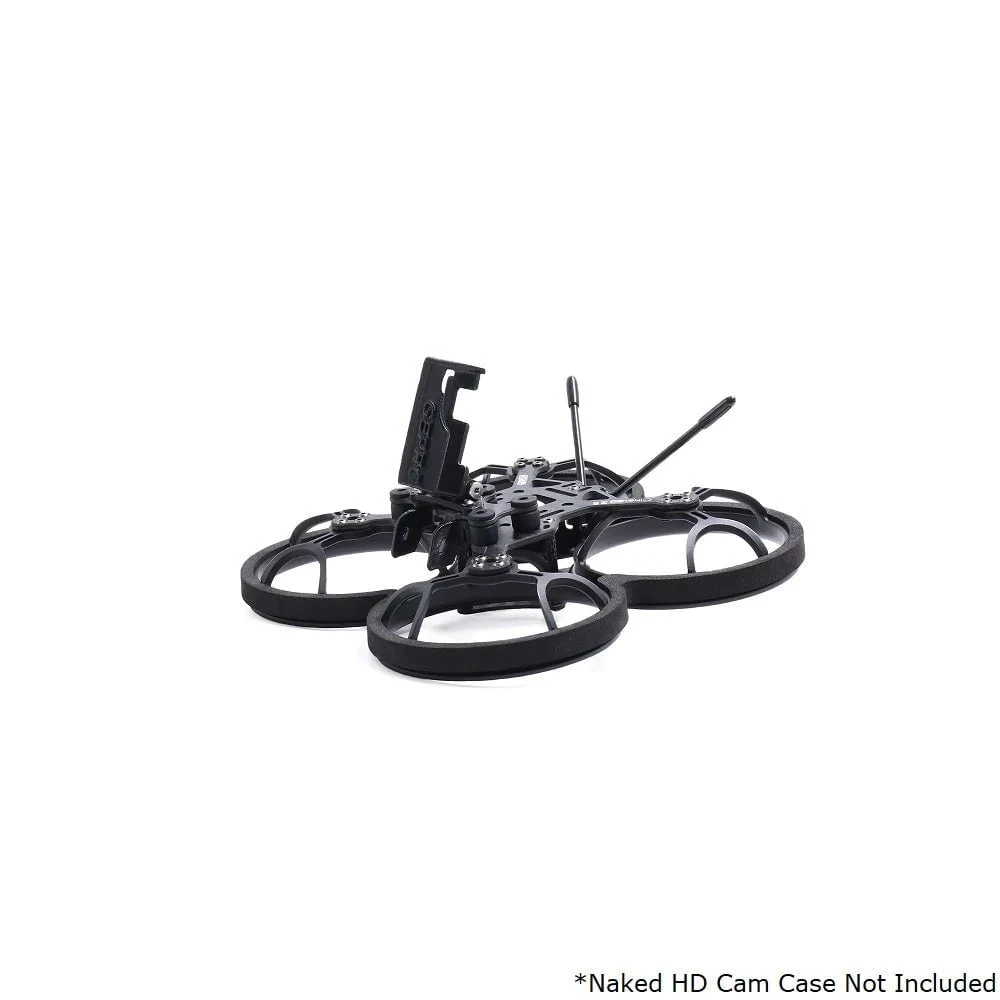

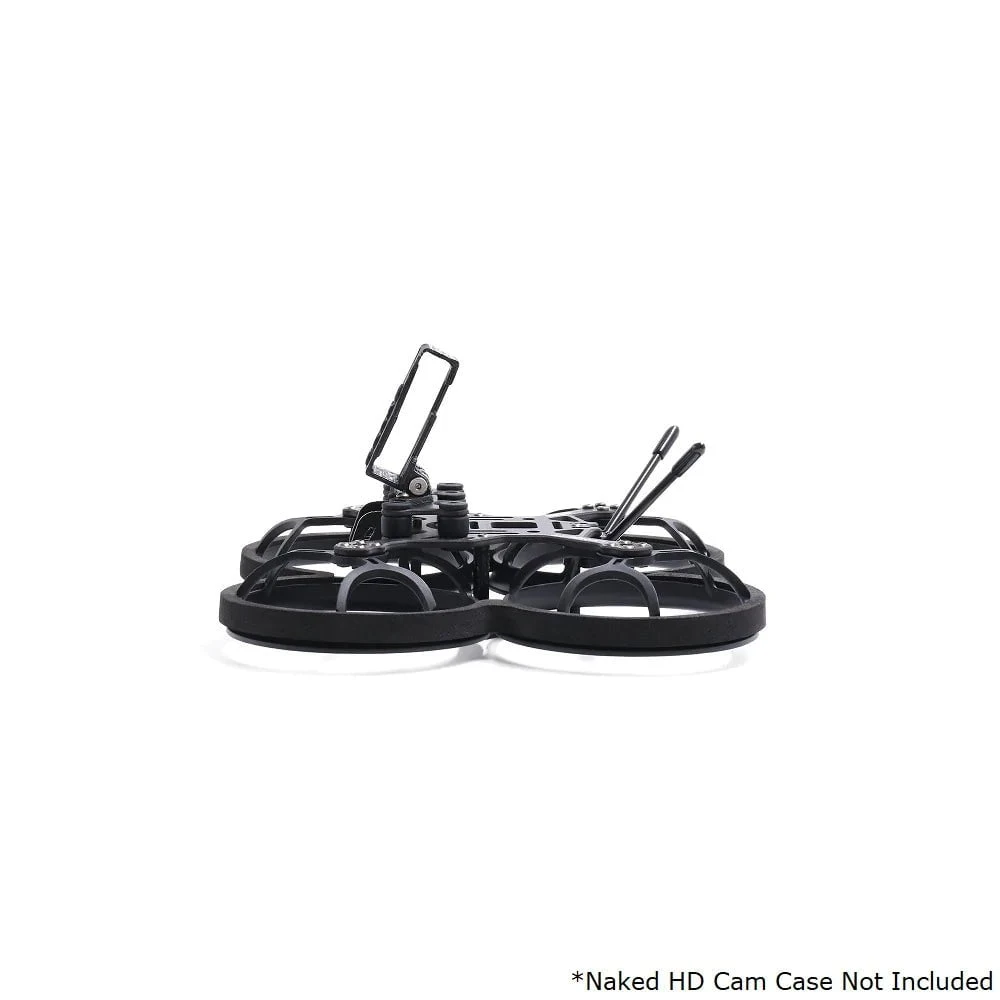

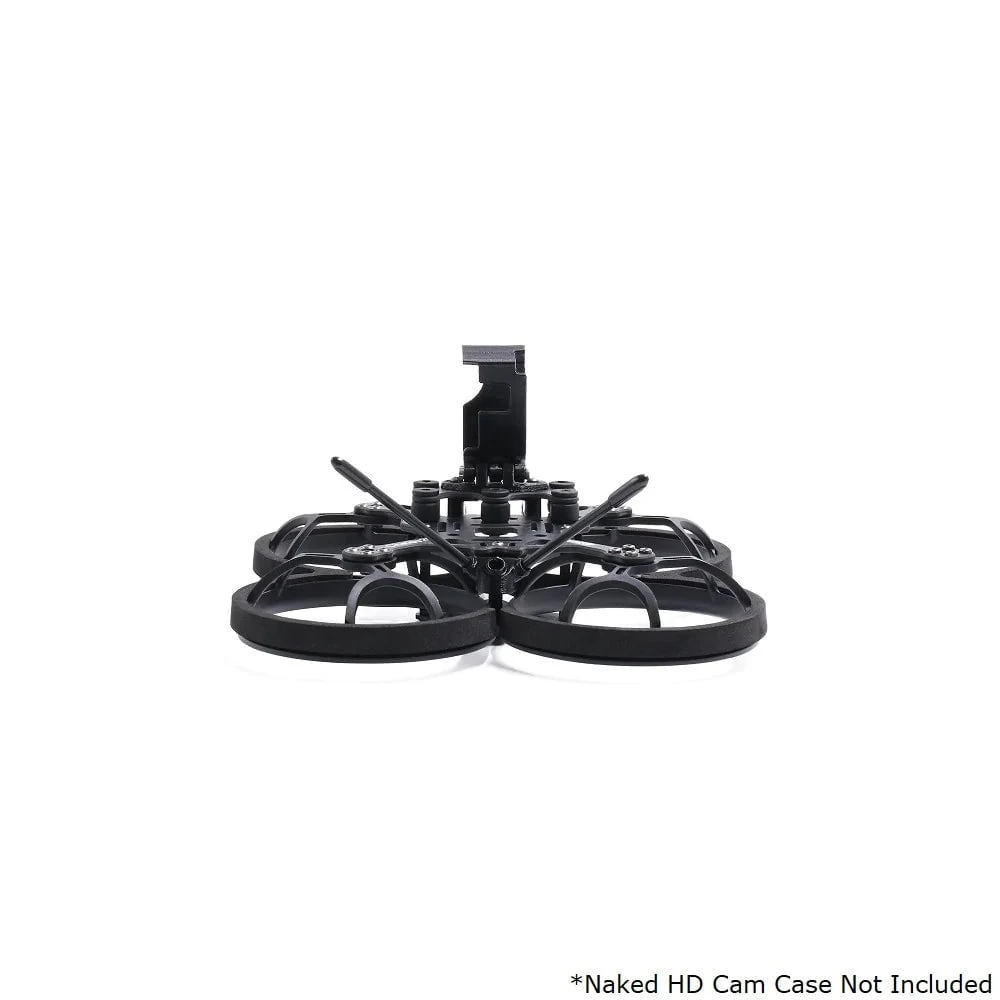

GEPRC CL25 Cinelog25 Cinewhoop 2.5″ Micro Frame Kit

Does not come with naked Gopro mount. Please refer to the includes list at the bottom of the listing for all included items.

The classic CL25 Frame, designed by the GEPRC team, has been upgraded. They’ve redesigned the shock absorption structure of the camera mount, eliminated the jelly coming from the FPV camera, and you can now use 3, 4, and 5 damping rings according to the flight state to obtain the best stability in vibration and noise. The CL25 can be used for Vista HD digital image transmission system or Analog image transmission system. The center of gravity of the quadcopter is in the middle,

Check out all our

DJI-compatible frames, electronics, and accessories

 as well as our whole

GEPRC product line

!

Specifications

• Dimensions: 109mm
• Frame Style: Cinewhoop
• Top Plate: 2.5mm
• Bottom Plate: 1.5mm
• Bottom Plate(camera): 2mm
• Stack Size: 26.5×26.5mm
• Motor Mount: 9x9mm (compatible with 1105/1204/1206 motors)
• Camera Mount: 14-20mm (Nano and Micro-sized)
• Weight: 47.8g

Recommended:

• Motor:

  BetaFPV 1404 4500Kv Micro Motor 4 Pack

• FC/ESC:

  GEPRC F411 2-6S AIO Flight Controller w/ 35A 4in1 ESC

• Prop:

  Gemfan D63 Ducted Durable Tri-Blade 2.5″ Cinewhoop Prop 8 Pack

• LiPo:

  RDQ Series 14.8V 4S 650mAh 80C LiPo Micro Battery

Includes

• 1x Top plate 2.5mm
• 1x Bottom plate 1.5mm
• 1x Bottom Plate (Camera)1.5mm
• 4x (M2x3.5x25mm) Aluminum posts
• 2x (M2x3.5x8mm) Aluminum posts
• 28x (M2x6mm) YFS Round head screws
• 2x (M2x8mm) YFS Round head screws
• 4x (M2x12mm) YFS countersunk head screws
• 16x (M2x2mm) Nylon Nuts
• 4x (M2x18mm) YFS countersunk head screws
• 5x Damping Rings
• 1x (19x19mm) Mount of camera
• 1x (14x14mm) Mount of camera
• 1x 3D print part of XM antenna
• 1x 3D print part of TBS antenna
• 1x Naked Camera Mount (This is just the base, NOT the actual camera case)
• 2x Batteries pads
• 2x EVA Landing pads
• 4x 2.5-inch Guards
• 1x EVA Damping Ring of Guard
• 2x Antenna Tubes
• 2x Batteries straps (M15x150mm）
