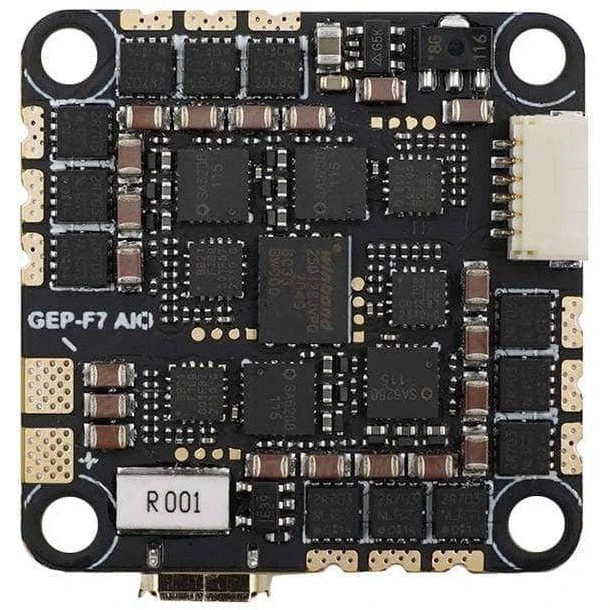

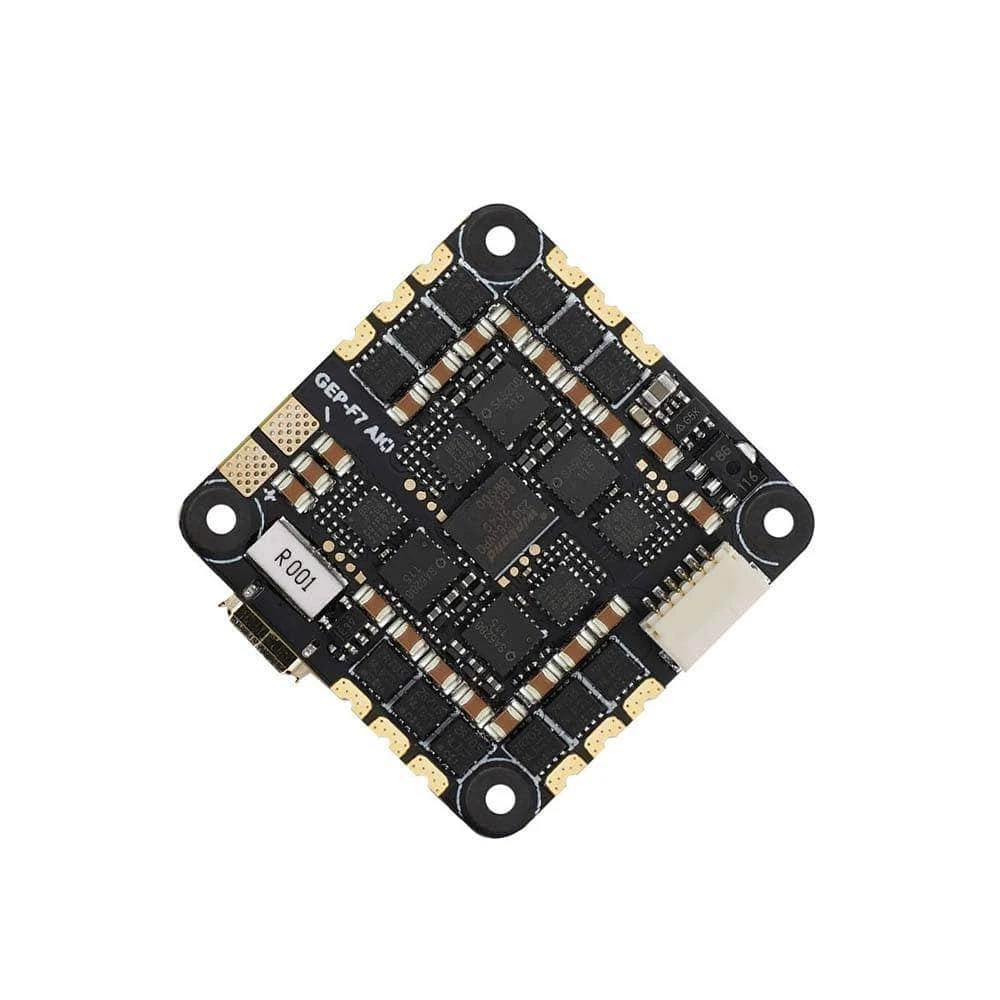

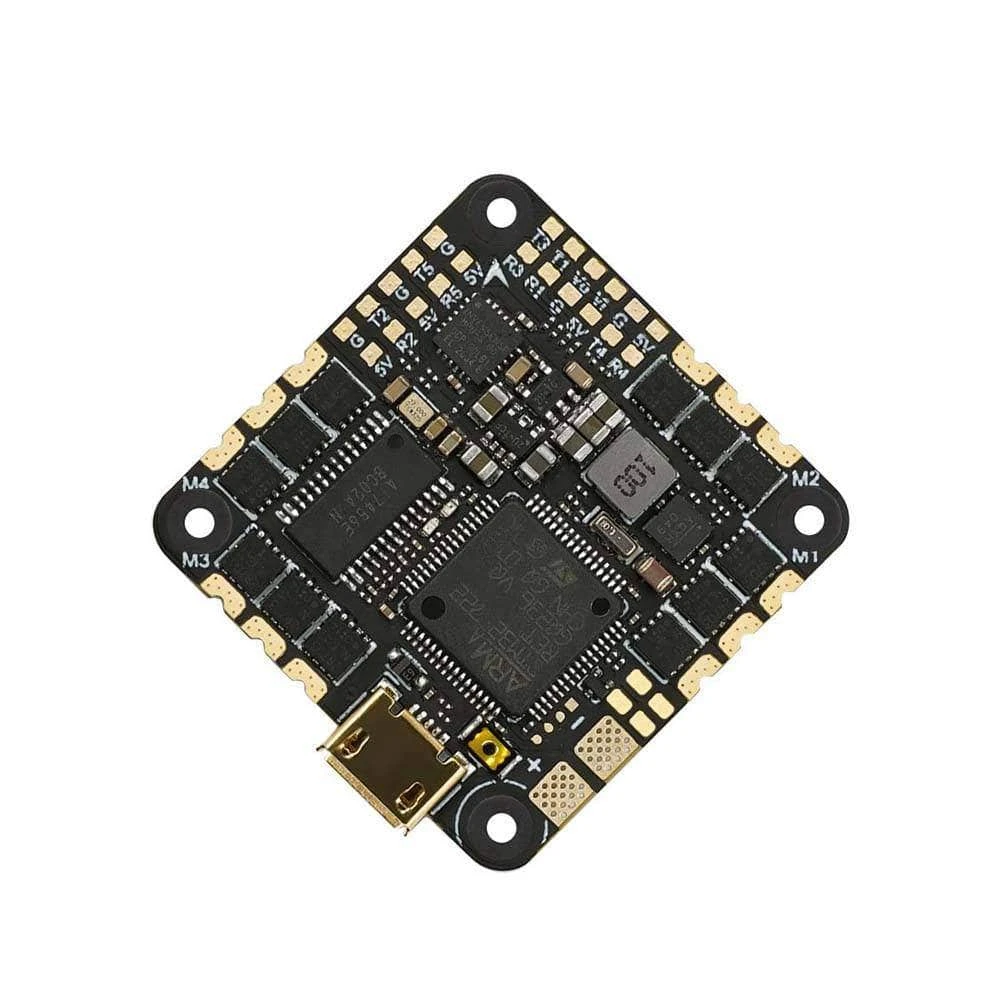

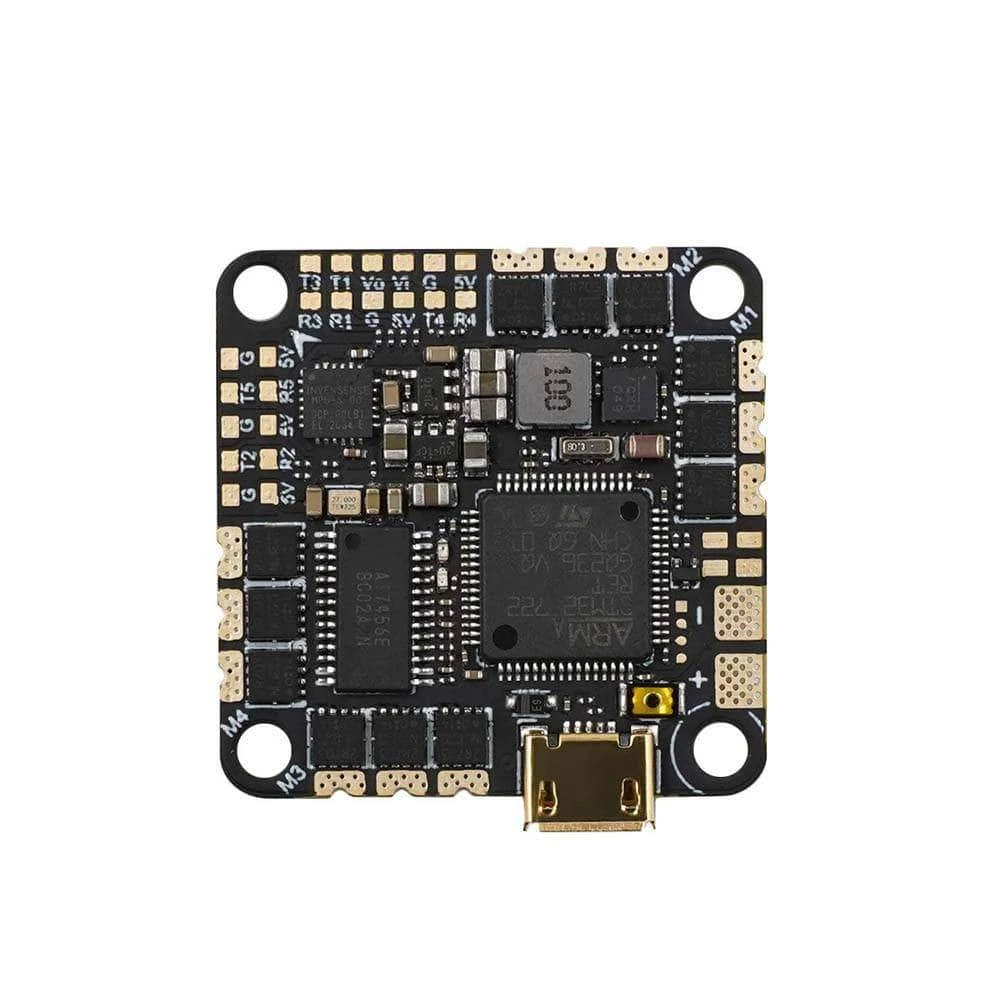

GEPRC F722 2-6S F7 AIO FC W/ 35A 8Bit 4in1 ESC

The GEPRC F722 AIO is equipped with an F722 FC and 35A 2S-6S BLS ESC. This AIO stack adopts MCU STM32F722, which gives a powerful performance and higher computing speed. It features 5 full UART ports and can connect more external devices. GEPRC designed a 6-pin connector for the DJI Air Unit, just plug and play.

The BLheili_S 35A ESC can handle 35A continuous current (40A burst), supports 2-6S lipo batteries, and brings the drone a stronger flight performance. Support OSD parameter adjustment, buzzer, led, and other functions. It is 8.8g, ultra-lightweight, and 25.5×25.5mm mounting hole, suitable for most of the frames on the market!

Check out all our

whoop flight controllers

, and our

GEPRC products

!

Features

• MCU: STM32F722, with strong performance and higher computing speed.
• It has 5 full UART ports, which connect more external devices
• 6-pin connector for DJI Air Unit module, and just plug and play.
• The BLheili_S 35A ESC can handle 35A continuous current (40A burst).
• Support OSD parameter adjustment, buzzer, led, and other functions.
• 8.8g ultra-lightweight
• 25.5×25.5mm mounting hole, suitable for most frames

Specifications

GEPRC F722 AIO

• Model Name: GEP-F722-35A AIO
• MCU: STM32F722
• IMU: BMI270/42688
• Firmware target: GEPRC_F722_AIO
• OSD: Betaflight OSD w/ AT7456Ev
• UART Ports: R1 T1 / R2 T2 / R3 T3 / R4 T4 / R5 T5
• Beeper: YES
• LED: YES
• USB: Micro USB
• BEC output: 5V@1A
• Integrated LC Filter
• ESC MCU: 8BB21F16G
• Continuous current: 35A
• MAX current: 40A (10s)
• Input: 2-6S
• Supports: Dshot600, Oneshot, Multishot
• BlackBox: 16Mb
• Target: G_H_30
• Size: 32x32mm Board
• Installing Hole: 25.5×25.5mm, M2

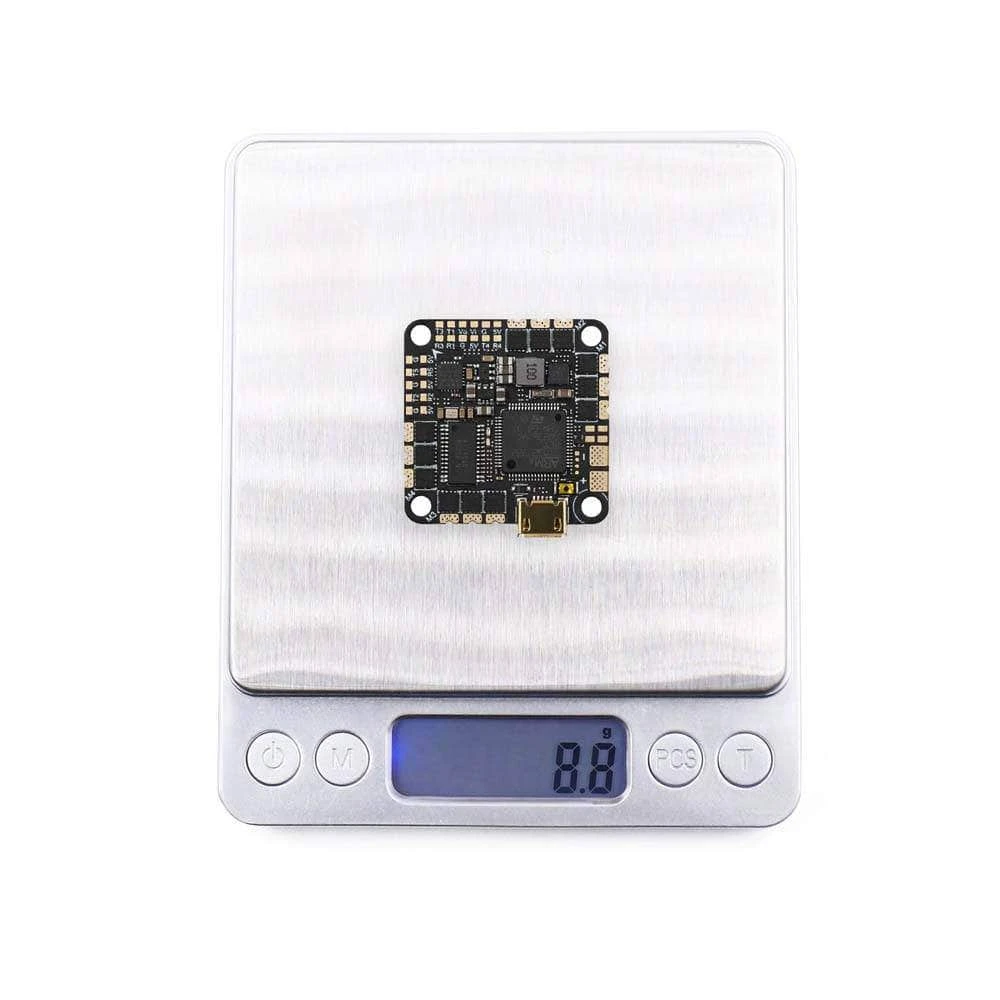

• Weight: 8.8g

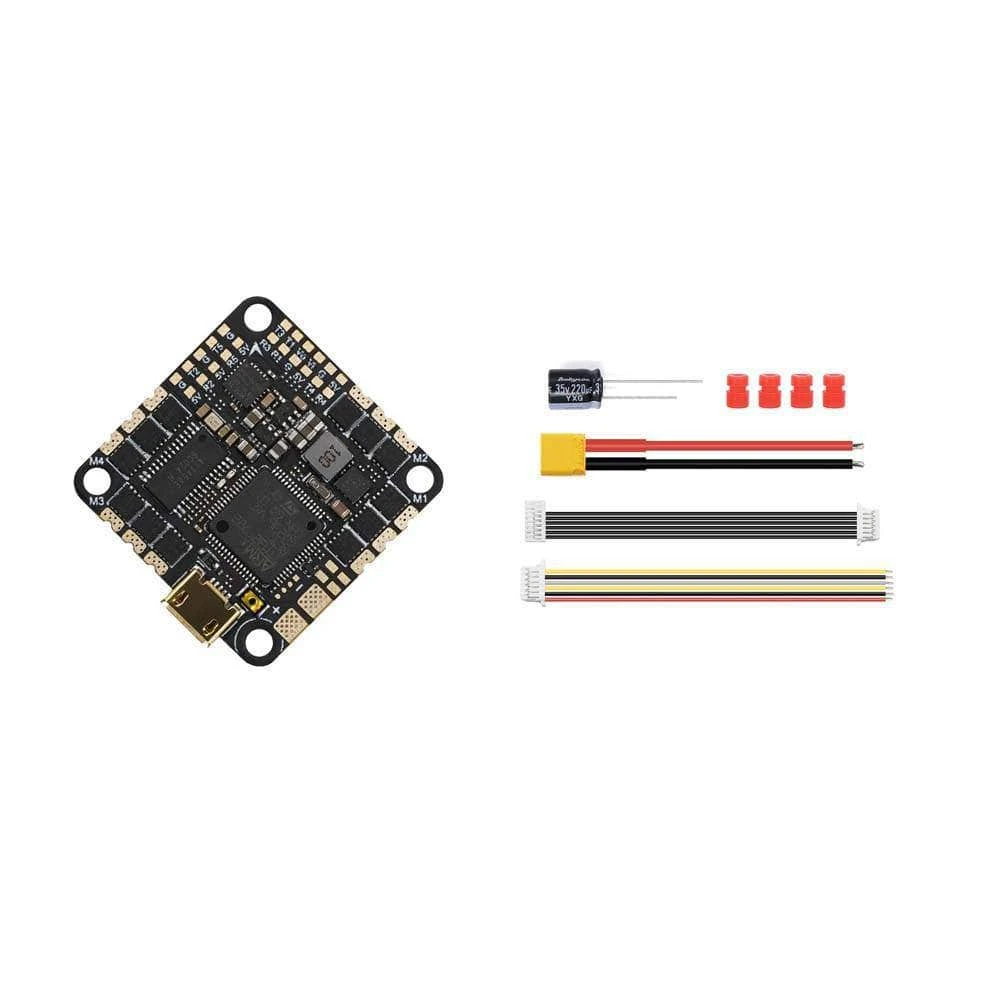

Includes

• 1x GEP-F7-35A AIO
• 1x XT30-7CM-18AWG Power cables
• 1x 35V220UF capacitance
• 1x SH1.0-6Pin to GH1.25-8Pin cables
• 8x M2*6.5mm Damping ring
