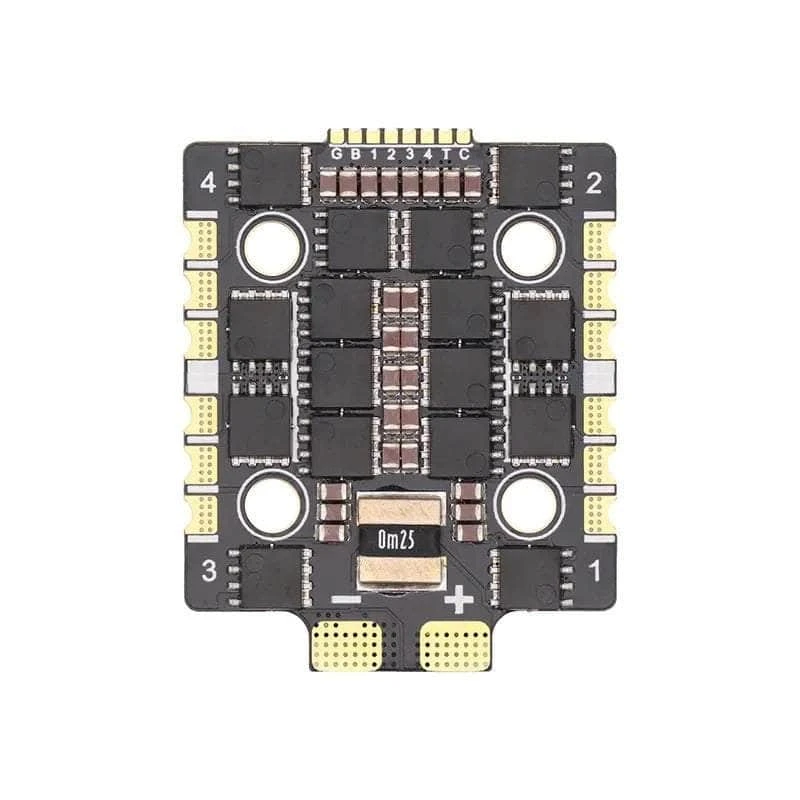

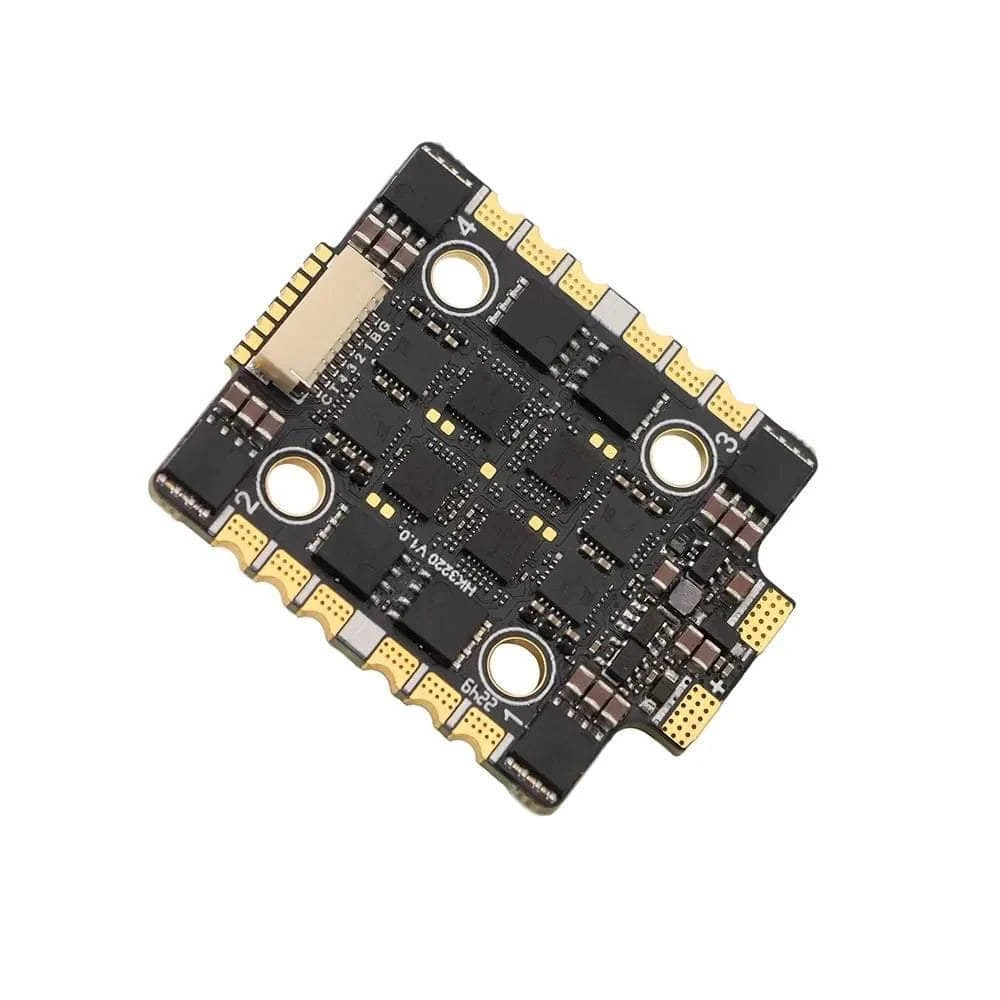

HAKRC HK3220 32Bit 60A 2-8S 20×20 4in1 ESC

The HAKRC HK3220 2-8S BLHELI_32 60A 4in1 20×20 ESC is an advanced ESC featuring a AT32F421 main control chip with operating frequency of up to 128MHz, Japan imported MOS and 3-in-1 IC driver FD6288Q driver, imported Murata capacitors, 8-layer 2-ounce copper PCB, hardware PWM drives, Damped Light technology and Active Freewheeling technology for smoother throttle response, regenerative braking and power recycling.

Check out the rest of our

20×20 ESCs

, as well as

HAKRC products

 for sale at RaceDayQuads!

Features

• PCB adopts high-end 8-layer 2oZ thickened copper skin, which has stronger overcurrent capability and good heat dissipation.

• MOS adopts imported high current resistance MOS, long life with strong load capacity.

• Adopt industrial grade LDO, high temperature resistance.

• Using 40 50V high-quality Japanese Murata capacitors, strong filtering performance

• PWM frequency up to 128k, high frequency for higher throttle
  Runs smoother.

Specifications

• ESC firmware: HAKRC_AT4G_Multi_32.9 Hex

• Protocol support: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600

• Input voltage: 2S-8S Lipo

• Continuous current: 60A

• Peak current: 70A
• Size: 34 x 42mm (20mm-20mm mounting hole)

• Product net weight: 11g

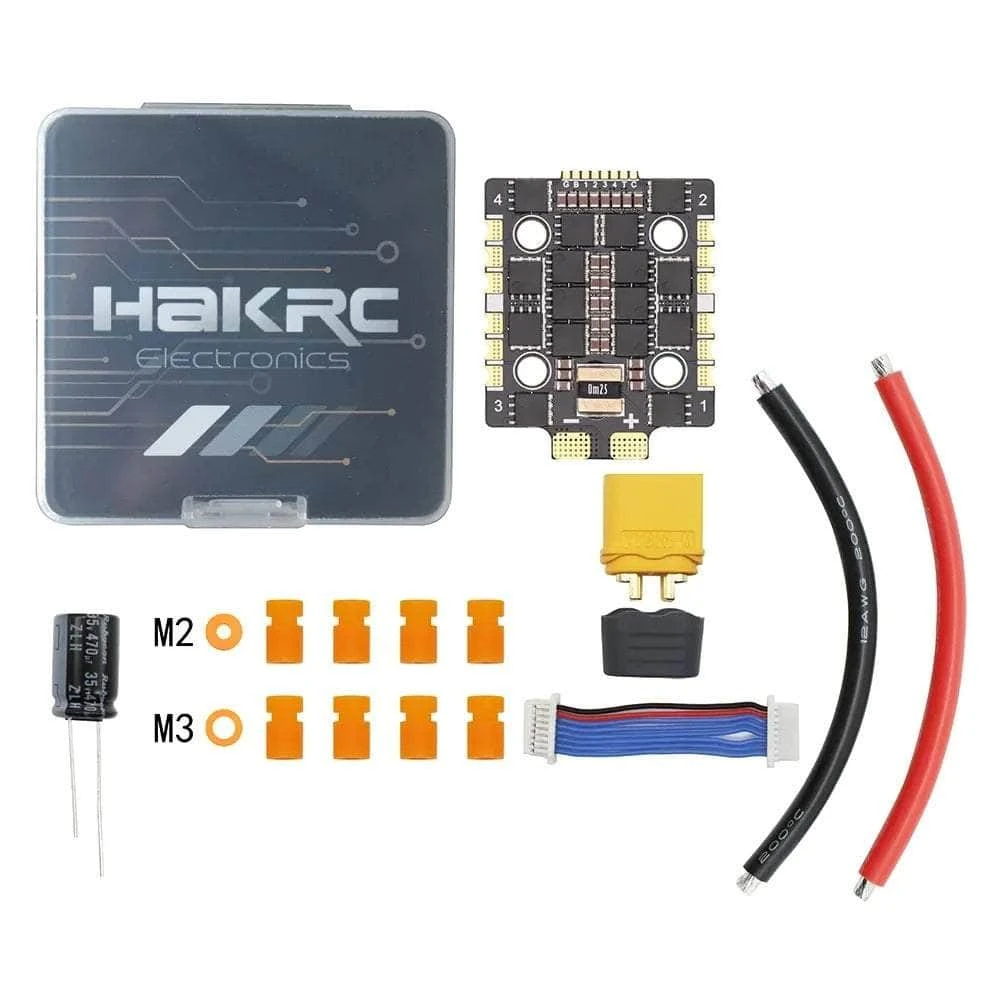

Includes

• 1x HAKRC HK3220 BLHELI_32Bit 60A 2-8S 20×20 4in1 ESC
• 1x XT60 Connector

• 1x 12AWG 6cm Power Cable

• 1x 35V 470uF Capacitor

• 1x 8Pin JST ESC to FC cable

• 4x M3 Grommets.
• 4x M2 Grommets
