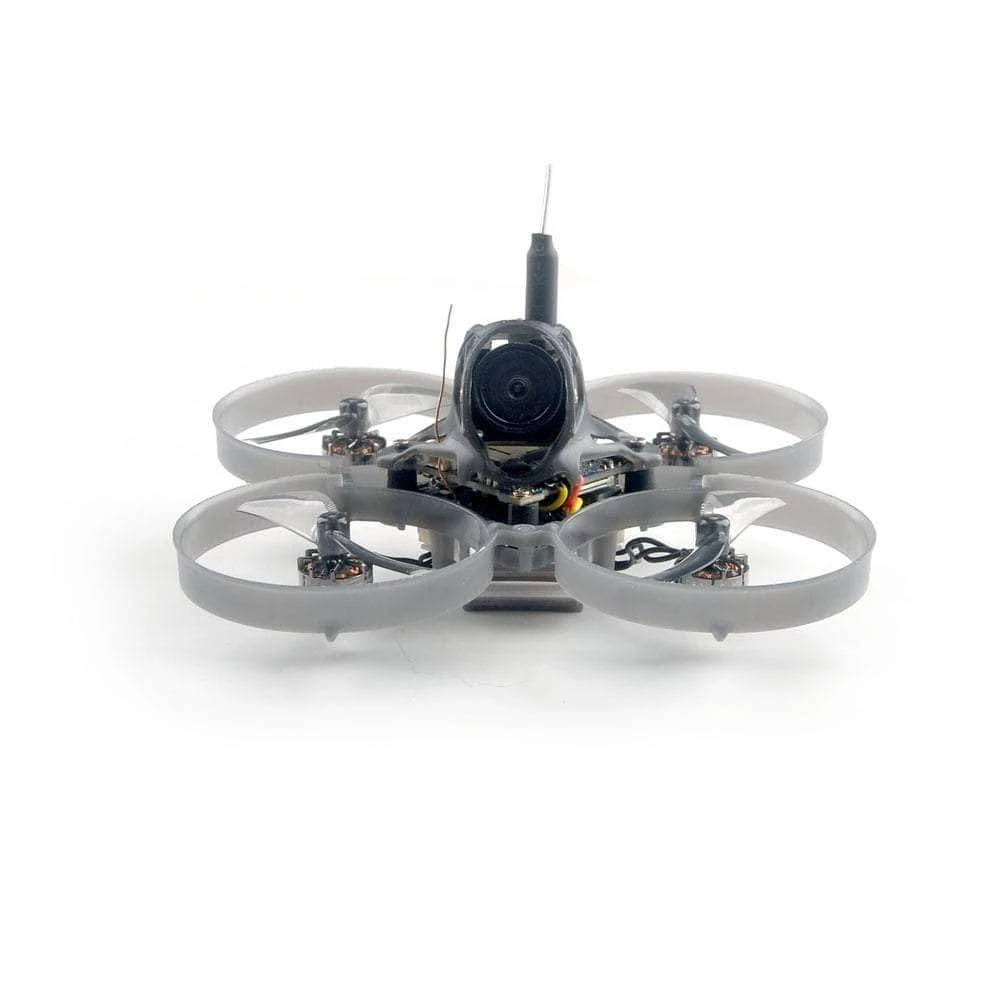

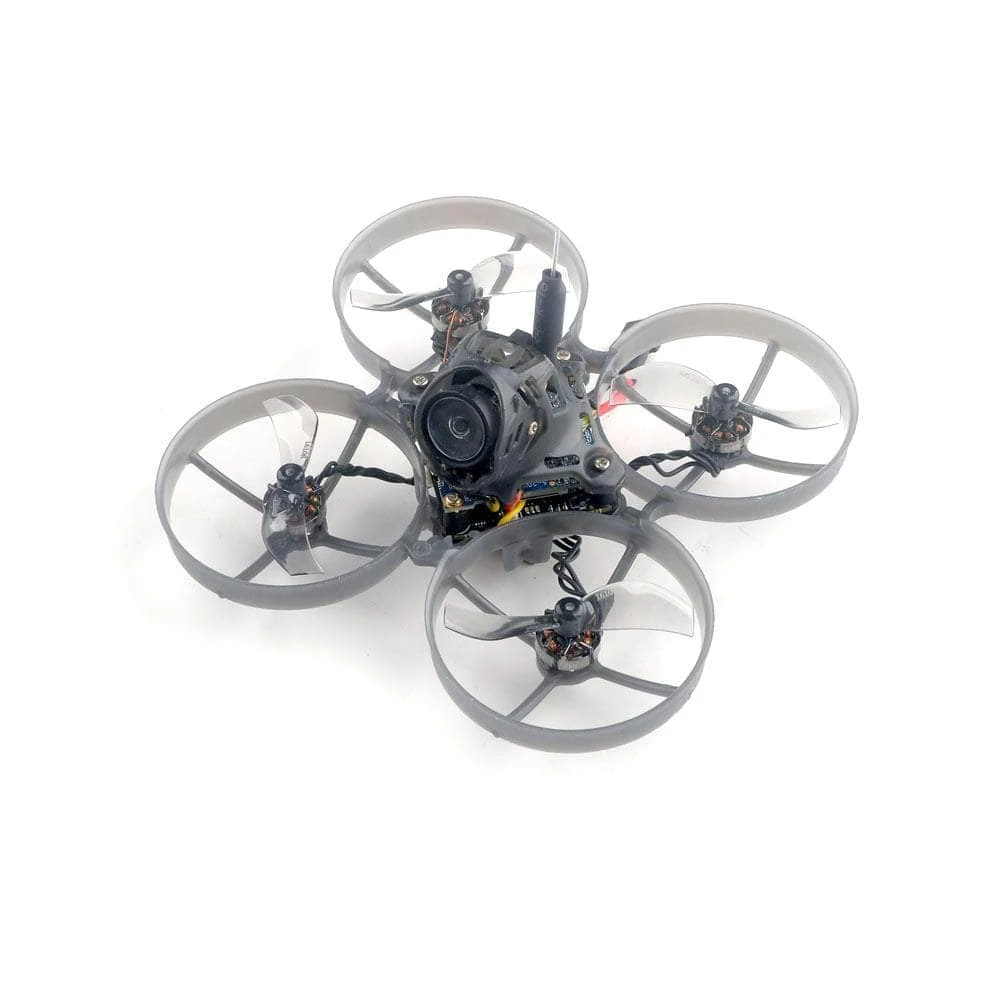

HappyModel BNF 1S Mobula7 HD Analog Whoop – Choose Version

 The HappyModel BNF 1S Mobula 7 HD Whoop version is a light and efficient 75mm brushless whoop which provides 1080P HD video recording functionality. HappyModel added blackbox for this 1s 75mm HD recording whoop so that you now have gyroflow functionality. Unlock the ultimate smooth flights with a combination of the Mob 7 HD and gyroflow!

Check out the rest of

pre-built quads

 and our

HappyModel selection

!

Specifications

HappyModel X12 AIO

• Input Voltage: 1-2S
• MCU: STM32F411CEU6 (100MHZ, 512K FLASH)
• Gyro: MPU6000 or ICM20689 or BMI270
• Max Continuous Current: 12A
• VTX Output Power: 25-400mW
• Antenna Connector: U.FL
• OSD: Yes
• Betaflight Target: ELRS Version: CRAZYBEEF4SX1280, PNP Version: CRAZYBEEF4DX
• ESC Firmware: Z_H_30_REV16_7
• Mounting Pattern: 25x25mm
• Weight: 5.1g

HappyModel RS Motor

• Input Voltage: 1S
• KV: 20000KV
• Shaft Diameter: 1.0mm
• Configuration: 9N12P
• Stator Diameter: 8mm
• Stator Length: 2mm
• Motor Dimension: Φ10.5×13.5mm
• Wire length(include connector): 30mm
• Weight: 2g

Runcam Split 3 Lite

• Video Resolution: 1080@60fps/1080@50fps/1080@30fps/720@60fps
• Field of View(FOV): Recording FOV 165°(FPV FOV: 165 ° @16:9, 130 ° @4:3)
• Video File Format: MOV
• Image Resolution: 2MP
• Signal System: NTSC (720*480)/PAL (720*576) Switchable
• Interface: JST 1.25mm / UART and SH 1.0mm

Includes

• 1x HappyModel BNF 1S Mobula 7 HD Whoop
