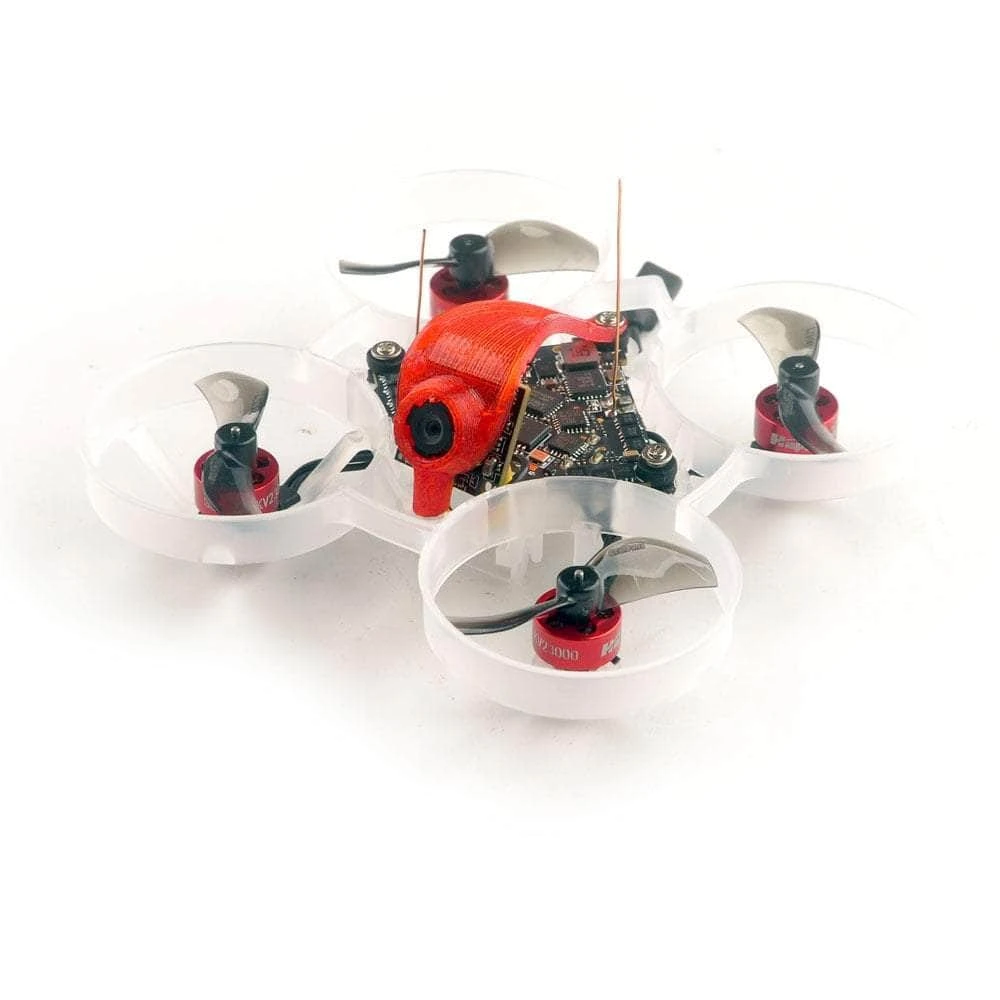

HappyModel BNF Mobeetle 1S Analog Whoop – Choose Version

All products containing lithium batteries must be shipped by a ground shipping method.

Everything you love about the Mobula6 but now with even more features! The new HappyModel BNF Mobeetle 1S Whoop comes with a spare 65mm toothpick frame to transform this indoor whoop into an outdoor beast!

Check out the rest of

pre-built quads

 and

HappyModel selection

!

Specifications

• Input Voltage: 1S
• Wheelbase: 65mm
• Weight: 17.5g

Diamond F4 ELRS AIO

• MCU: STM32F411CEU6 (100MHZ, 512K FLASH)
• IMU: ICM20689
• ESC MCU: EFM8BB21
• Max Continuous Current: 5A
• Max Burst Current: 6A
• ESC Firmware: O_H_5_REV16_8.HEX
• Packet Rate: 50Hz/150Hz/250Hz/500Hz
• Antenna : Enameled copper wire antenna

Motors

• Stator Size: 7x2mm
• KV: 23000

RunCam Nano 3

• Image Sensor: 1/3″ CMOS
• Horizontal Resolution: 800TVL
• Lens: 2.3mm(M6.5) FOV 140°
• Signal System: NTSC
• S/N Ratio: > 50dB
• Electronic Shutter Speed: Auto
• Auto Gain Control (AGC): Auto
• Min. Illumination: [email protected]
• D-WDR: Auto
• Day/Night: color
• Power: DC 3-5.5V
• Current: 110mA@5V
• Housing Material: ABS

Includes

• 1x HappyModel BNF Mobeetle 1S Whoop
• 1x 65mm toothpick frame
• 4x Gemfan 1210 31mm propeller
• 1x Mobula6 Canopy
• 2x 1s 300mah Lipo battery
• 1x Prop Tool
• 1x Screwdriver
