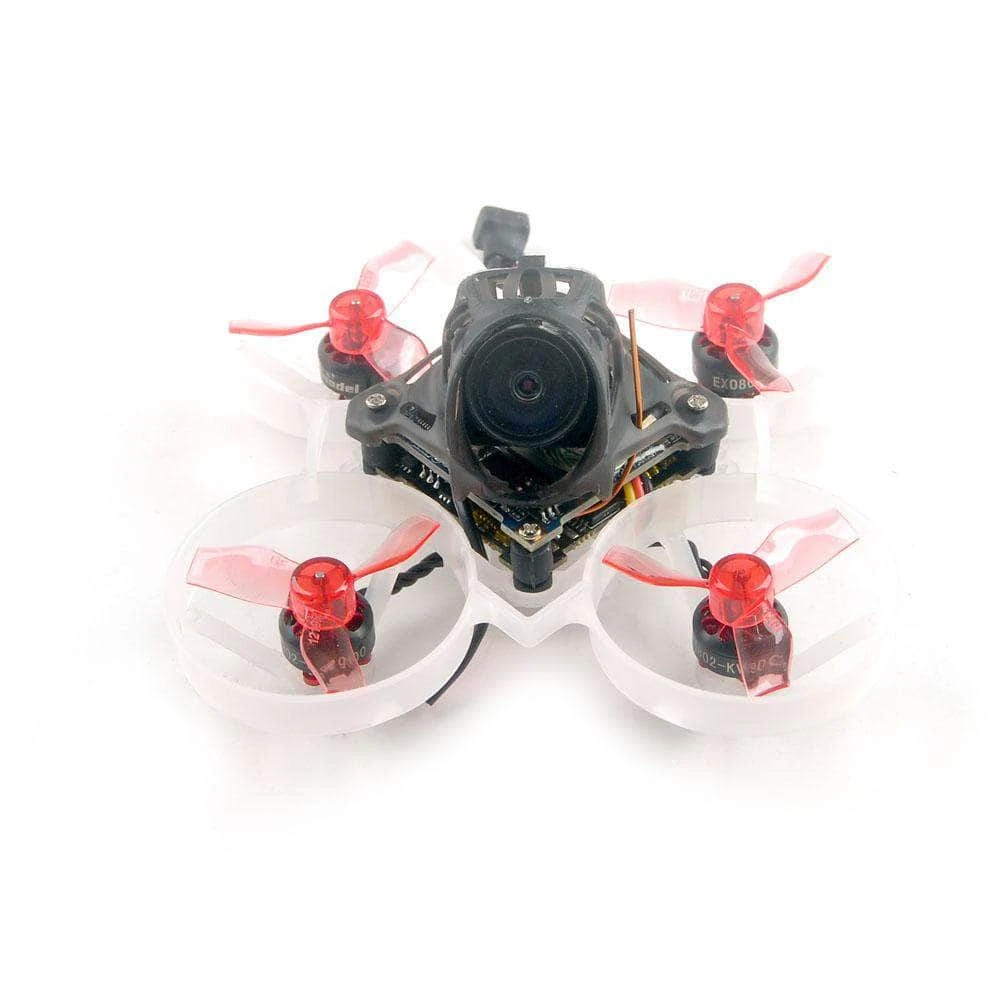

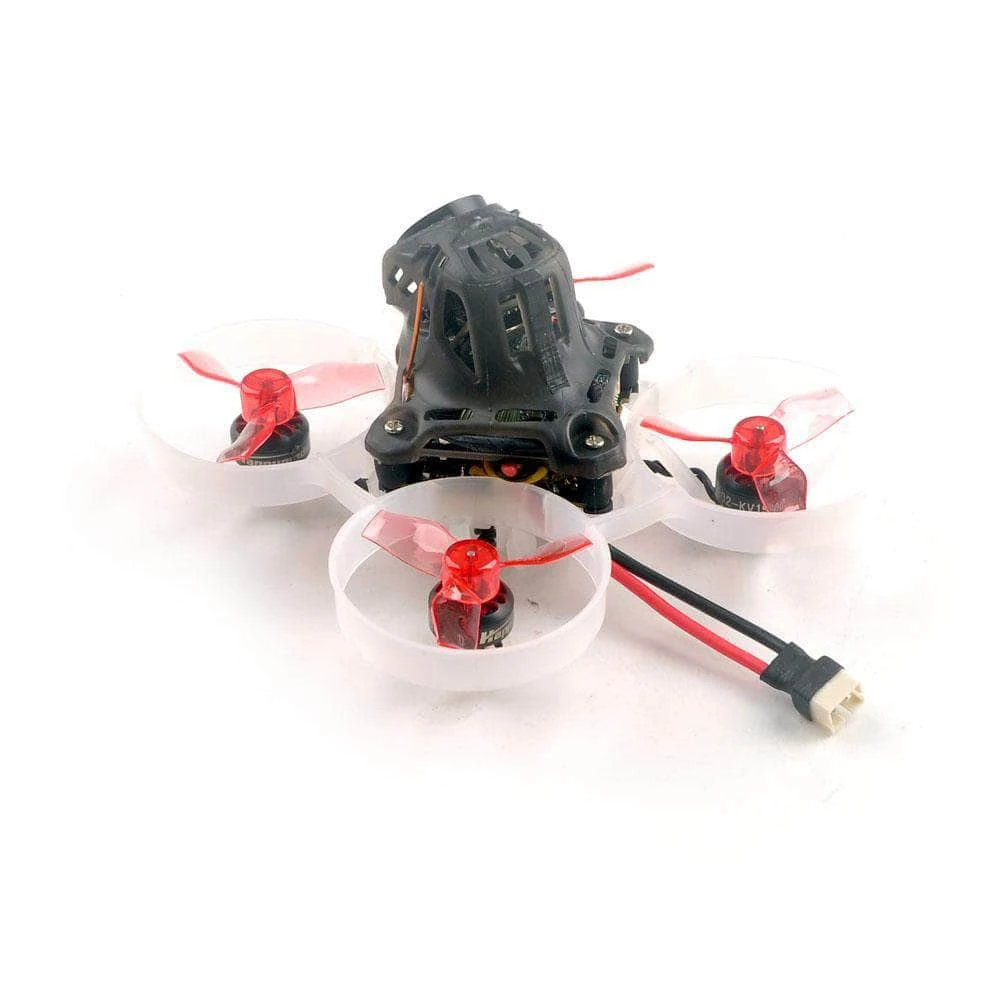

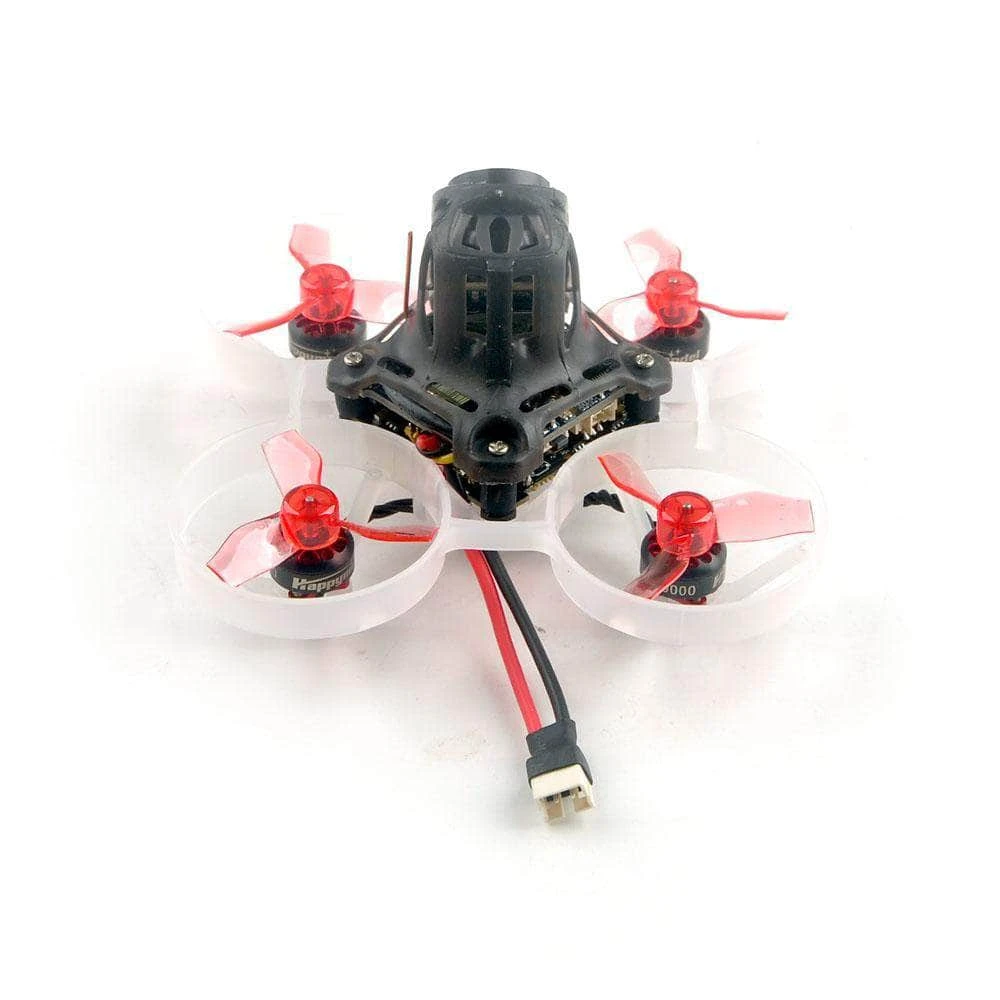

HappyModel BNF Mobula6 HD V2 1S Analog Whoop Quad – Choose Your RX

All product containing lithium batteries must be shipped by a ground shipping method. Please be aware Betaflight 4.3.1 firmware has a bug, Please do not flash version 4.3.1.

This is the V2 version of the Mobula 6 HD. This version features an ICM20689 Gyro as well as an OpenVTX 400mW VTX.

The Highly sought after Mobula6 now comes in HD! Record all your sessions in HD with the onboard RunCam split 3 Lite.

We recommend

RDQ 1S 300mAh LiPos

 for this whoop!

Be sure to check out all our

pre-built quads

, and all our

Happymodel products

!

Features

• AIO 4IN1 Crazybee F4 Lite flight controller built-in 5.8G VTX
• Extreme light 1S 65mm Brushless HD whoop only 27g
• Come with Runcam Split3-lite 1080P HD DVR
• Smooth and agile
• Compatible for 1S Lipo/LIHV
• Camera Angle adjustable

Specifications

• Wheelbase: 65mm
• Size: 80x80x40mm
• Weight: 27g
• Receiver option:
• Internal SPI Frsky version (Compatible with ACCST D8/D16, Recommend D8 mode)
• Internal SPI Flysky version(Compatible with AFHDS and AFHDS-2A Flysky transmitter)
• Internal SPI DSM2/DSMX version(Compatible with SPEKTRUM DSM2/DSMX protocol radio transmitter)
• External TBS CRSF NANO version(Compatible with TBS Transmitters)

 Motors

• Model: EX0802 19000KV
• Configuration: 9N12P
• Stator Diameter: 8mm
• Stator Length: 2mm
• Shaft Diameter: Φ1mm
• Motor Dimension(Dia.*Len): Φ10.5mm*14.9mm
• Weight(g): 1.7g
• No.of Cells(Lipo): 1S only

Flight Controller

• (Frsky SPI RX version) CRAZYBEE F4 Lite Frsky version Firmware target: CrazybeeF4FR
• (Flysky SPI RX version) CRAZYBEE F4 Lite Flysky version Firmware target: CrazybeeF4FS
• (DSM2/X SPI RX version) CRAZYBEEX DXS  DSM2/X version firmware target: CrazybeeF4DXS
• (External TBS CRSF NANO RX version) CRAZYBEE F4 Lite Firmware target: CrazybeeF4DX
• MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
• Sensor: ICM20689
• Board size: 28.5 * 28.5MM
• Power supply: 1S battery input (DC 2.9V-4.35V)
• Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
• Built-in Betaflight OSD(SPI Control)
• Built-in 5.8G 400mW VTX
• Built-in SPI Frsky/Flysky/DSMX receiver
• Built-in 5V 1A BEC
• Built-in voltage detection

ESC

• MCU upgraded to EFM8BB21
• Power supply: 1S LiPo/LiPo HVCurrent: 5A continuous peak 6A (3 seconds)
• Support BLHeliSuite programmable
• Factory firmware: O_H_5_REV16_7.HEX
• Default protocol: DSHOT600

VTX

• Output power: 25mw
• Frequency: 40CH
• Input voltage: 3.3V 5.5V
• Current consumption: 300mA(type)
• Frequency: 5.8GHz 5bands 40 channels
• With Race band Smart audio ready

Runcam Split3 Lite

• Model: RunCam Split3-Lite
• Field of View(FOV):Recording FOV 165°(FPV FOV: 165 ° @16:9, 130 ° @4:3)
• Video Resolution:1080@60fps/1080@50fps/1080@30fps/720@60fps
• Video File Format: MOV
• Image Resolution:2 MP
• TV Mode: NTSC (720*480)/PAL (720*576) Switchable
• Interface: JST 1.25mm / UART and SH 1.0mm
• Max Micro SD Card Supported 64G(need Class 6 or above, recommend Class 10/UHS-I/UHS-II/UHS-III)
• Hole Distance of Installation: 25.5*25.5mm
• PCB Size: 29*29mm
• Lens Module Size: 14*14mm
• Lens Specs: M9
• Power Input: DC 5-20V(Non-direct power supply from battery. Powered directly with battery will generate surges and burn the camera.)
• Working Current: 450mA @5V

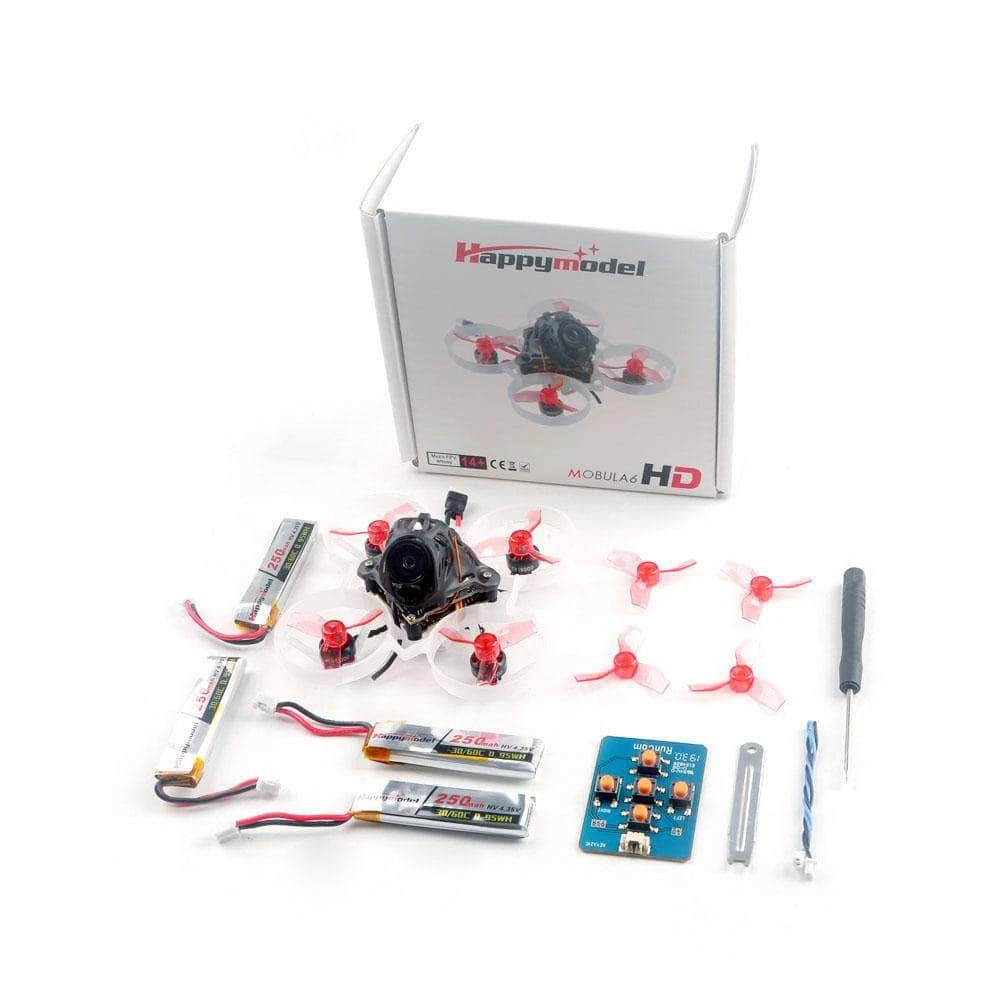

Includes

• 1x Happy Model BNF Mobula 6 HD 1S Whoop Quad – Choose Your RX
