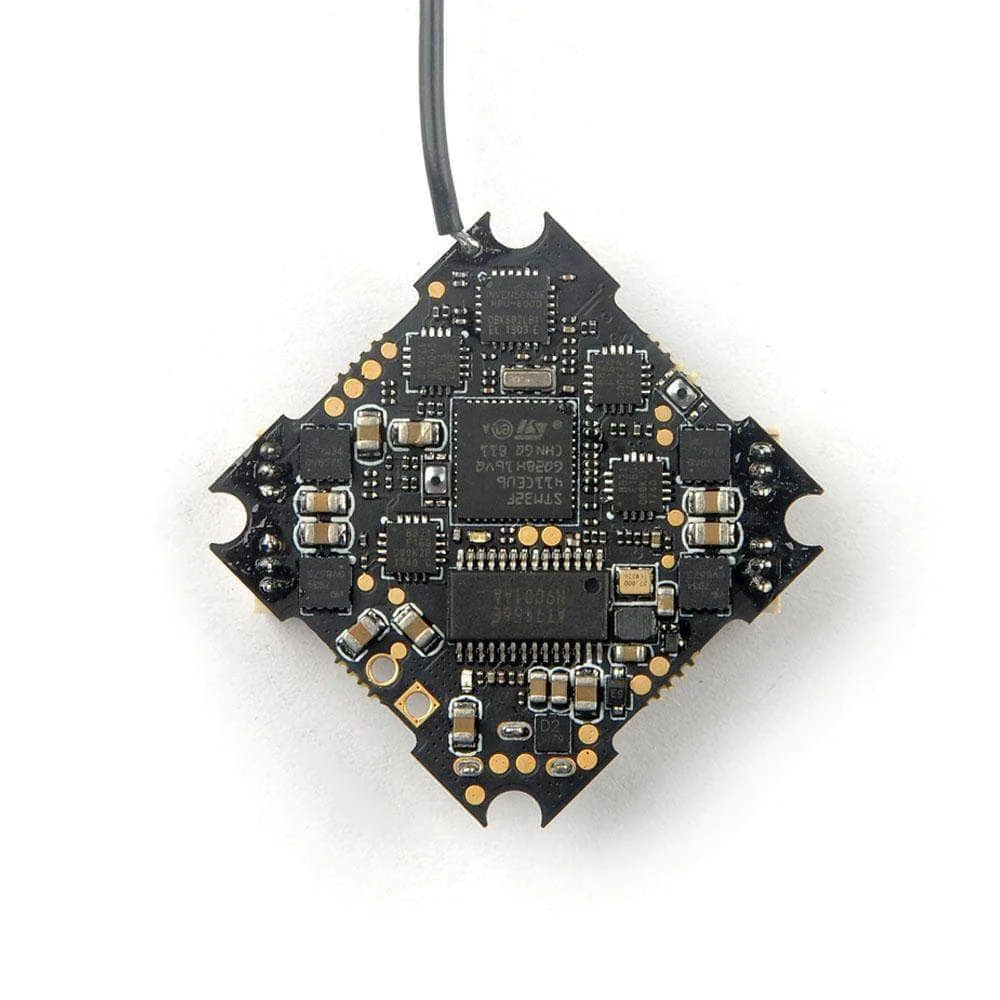

HappyModel CrazyBee F4 Pro V3 AIO Whoop Flight Controller For Larva, Sailfly, Mobula – FRSKY

This is the FrSky RX equipped version.

The CrazyBee series just got a little crazier! These AIO whoop style FCs are meant as replacements and upgrades for several HappyModel BnF/PnP quads, like the Mobula7, SailyFly, and Larva but are just as at home in your custom whoop/toothpick builds.

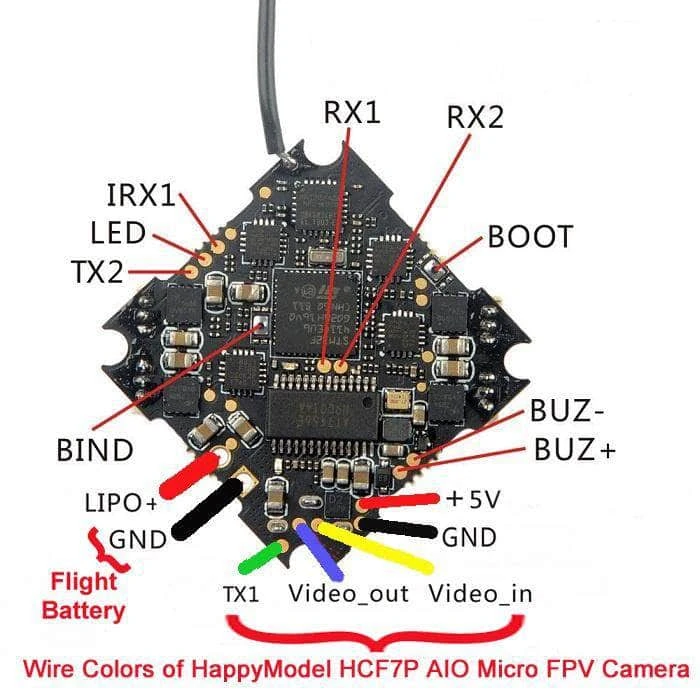

“V3.0 supports 2S – 4S LiPo, ESC upgraded to 10A. A few things have gone back to how it was before due to the lack of space: no longer using plastic connector for VTX and camera, just solder pads now; And bind and boot buttons reverted back to the original tiny ones”

 – from

Oscar Liang’s great post

all about the version differences.

Be sure to check out all our

Whoop FCs

and our

HappyModel gear collection

!

Specifications

• Board size: 28.5 * 28.5MM
• Power supply: 2-4S battery input (DC 7-17V)
• Built-in 10A(each) Blheli_S 4in1 ESC Dshot600 ready
• Frsky version Built-in SPI Frsky receiver with telemetry(D8/D16 switchable)
• Built-in Betaflight OSD(SPI Control)
• Built-in Current meter Max 70A
• Current meter scale set to 470
• Built-in 5V 1A BEC
• Built-in voltage detection
• MCU upgraded to EFM8BB21
• Power supply: 2-4S LiPo/LiPo HV (7v/17v)
• Current: 10A continuous peak 12A (5 seconds)
• Support BLHeliSuite programmable
• Factory firmware: F_H_40_REV16_5.HEX
• Default protocol: DSHOT600

FRSKY SPI BUS receiver

• Frsky D8/D16 switchable
• Compatible Non EU transmitter both D8 and D16 mode
• Channels: 8ch or 16ch
• Failsafe support
• No ground interference ( Transmitter and receiver 1 m from the ground): 300m

Firmware

• (Frsky version) CRAZYBEE F4FR PRO V3.0 Firmware target: CrazybeeF4FR

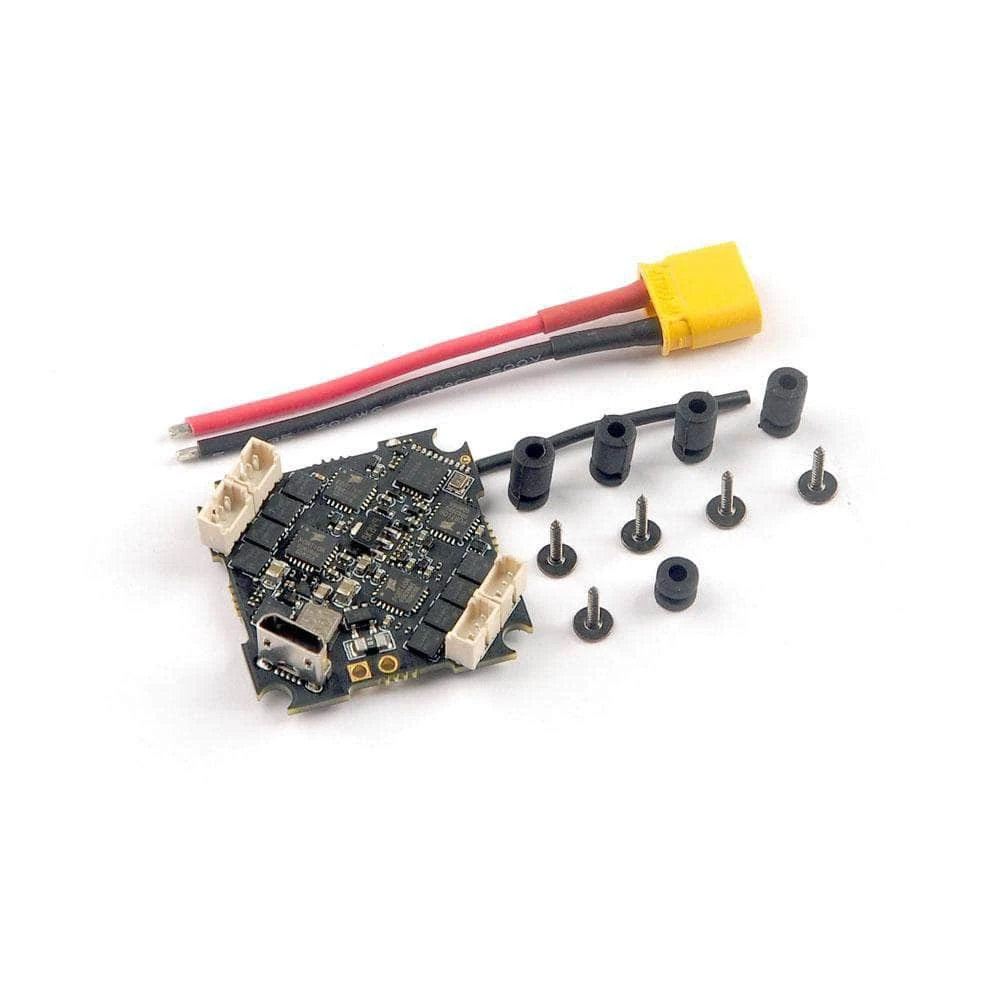

Includes

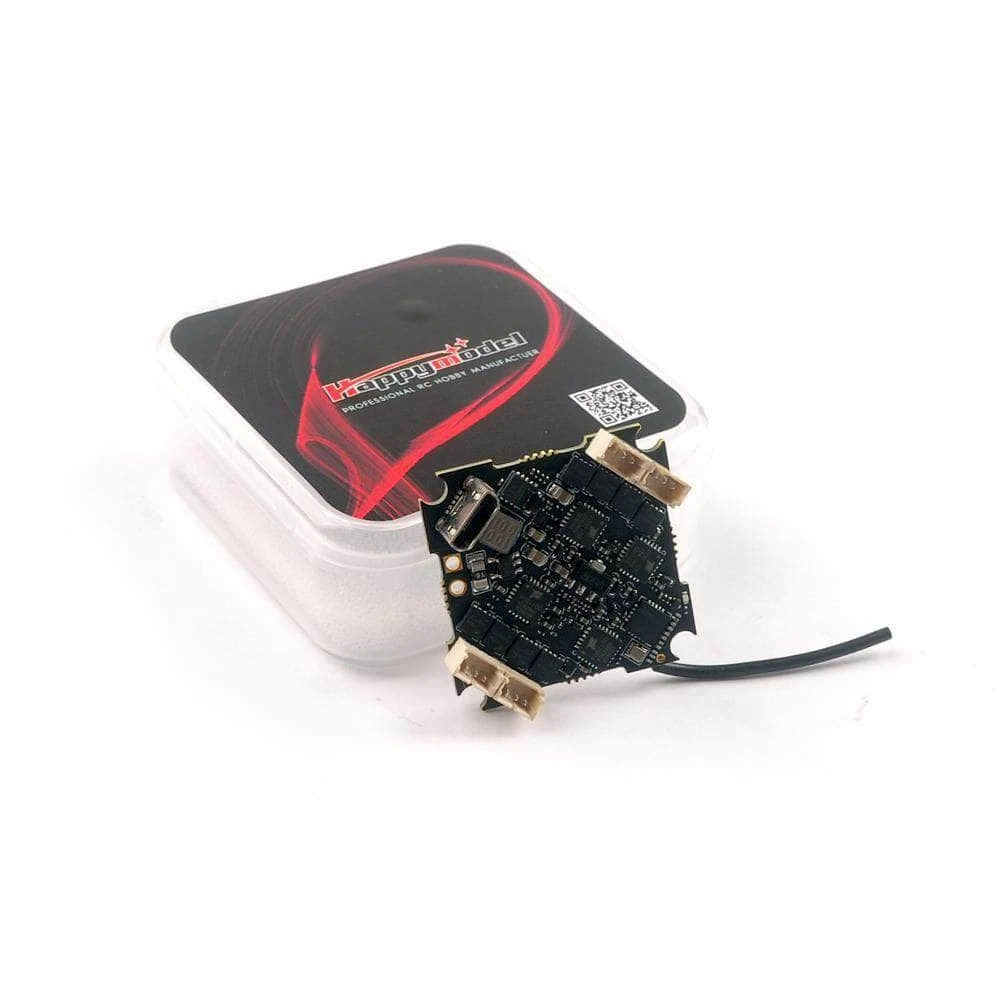

• 1x HappyModel CrazyBee F4 Pro V3 AIO Whoop Flight Controller
• 1x XT30 Pigtail
• 1x Hardware Set
