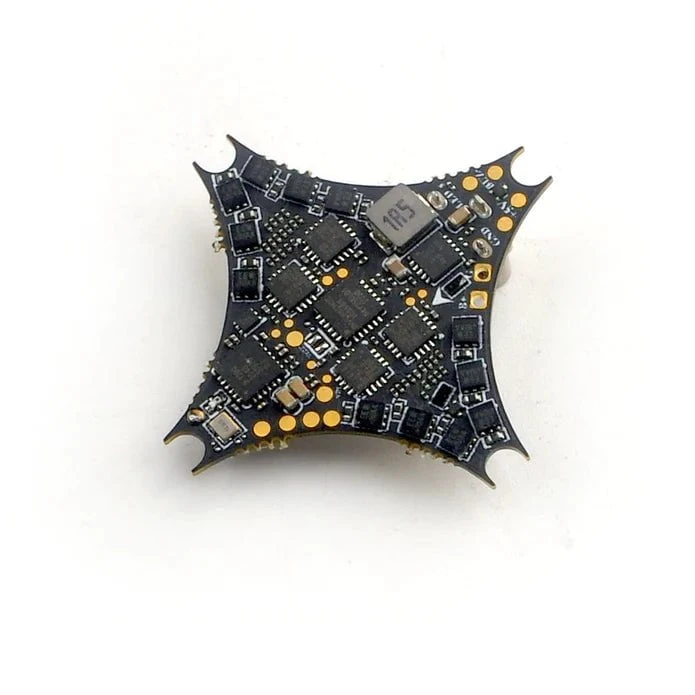

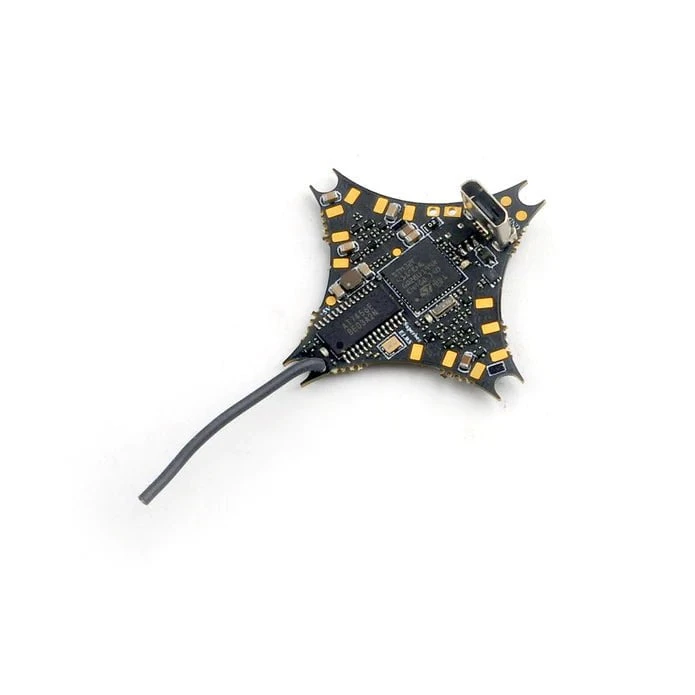

HappyModel SuperBee F4 Lite AIO Whoop Flight Controller – Choose Version

It’s finally here! The ultralight 1s 5a AIO of the future comes in at a clean 2.8g. This is the AIO that got the mobula6 HDZero whoop under 25 grams.

Be sure to check out all our

Whoop FCs

and our

HappyModel gear collection

!

Due to this flight controller being a spare part for Mobula6 HDZERO, the original default device for OSD is “MSP”

If you bought this flight controller and used it for an analog camera, you may need to change some settings. First, connect to Betaflight Configurator, then move to CLI command tab, and enter “set osd_displayport_device = MAX7456”,  then reconnect Betaflight, and upload the osd font.

Specifications

• Board size: 25 x 25
• Power supply: 1S
• Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
• Built-in Betaflight OSD(SPI Control)
• Built-in 5V 1A BEC
• Built-in voltage detection
• MCU upgraded to EFM8BB21
• Support BLHeliSuite programmable
• Factory firmware: S_H_50_REV16_8.HEX
• Default protocol: DSHOT150/DSHOT300/DSHOT600

FRSKY SPI BUS RECEIVER

• Frsky D8/D16 switchable
• Compatible Non-EU transmitter in both D8 and D16 mode
• Channels: 8ch or 16ch
• Failsafe support
• No ground interference (Transmitter and receiver 1 m from the ground): 300m

ELRS SPI RECEIVER

• Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
• RF Frequency: 2.4GHzAntenna plug: IPEX
• Telemetry output Power: <12dBm
• Receiver protocol: SPI ExpressLRS
• Could bind with ELRS V2.0 firmware TX module

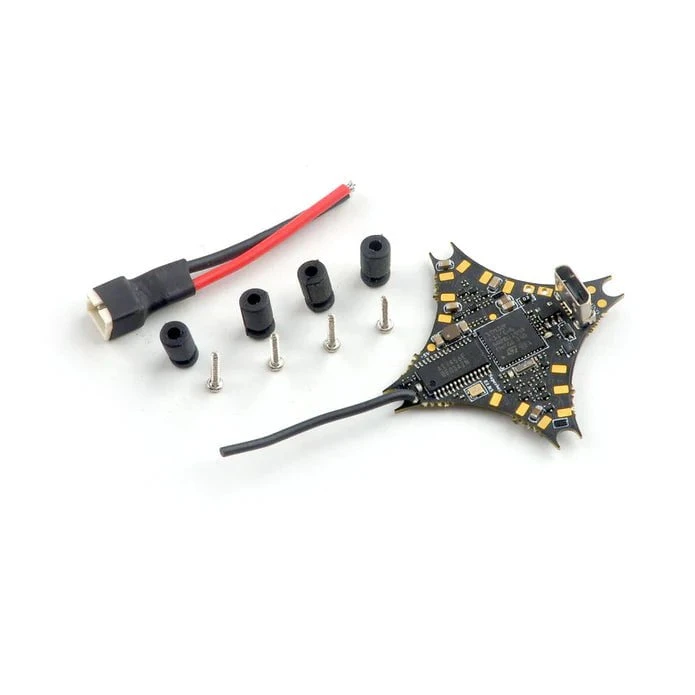

Includes

• 1x HappyModel SuperBee F4 Lite AIO Whoop Flight Controller
• 1x PH2.0 Pigtail
• 1x Hardware Set
