HappyModel X12 2S AIO Whoop Flight Controller (F4 FC / 12A 4in1 ESC / 25-400mW VTX) – Choose Version
Original price was: $8.45.$5.92Current price is: $5.92.
- Efficiency meets excellence in customer care.
- Your needs, our top priority.
- Best price, safe shopping guarantee
- Fast reliable delivery options

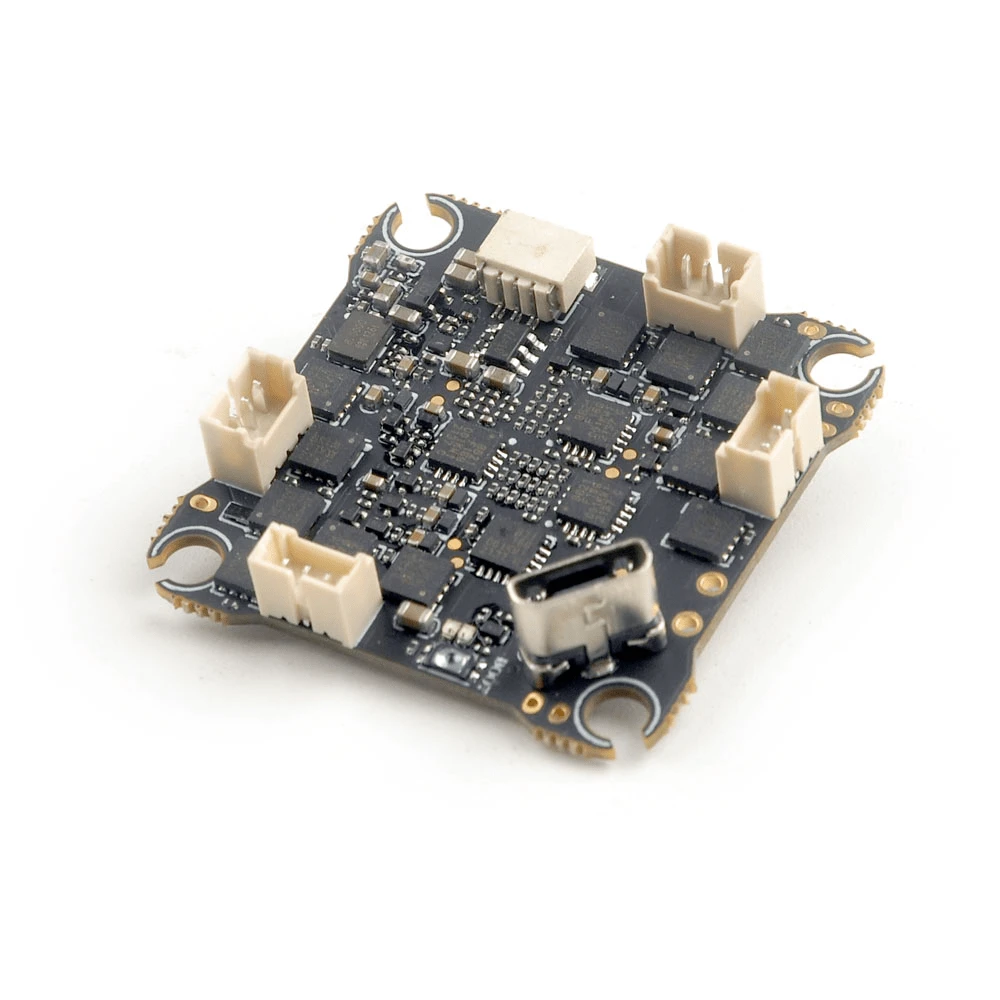

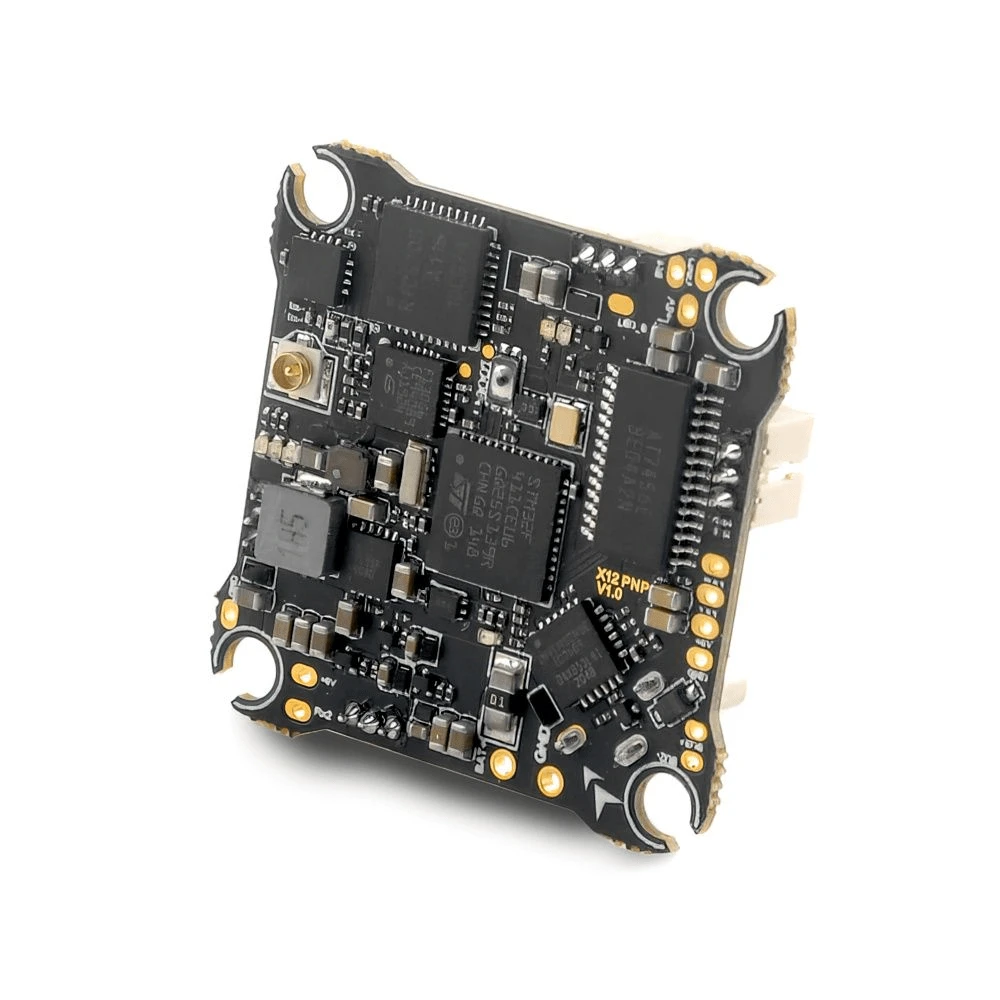

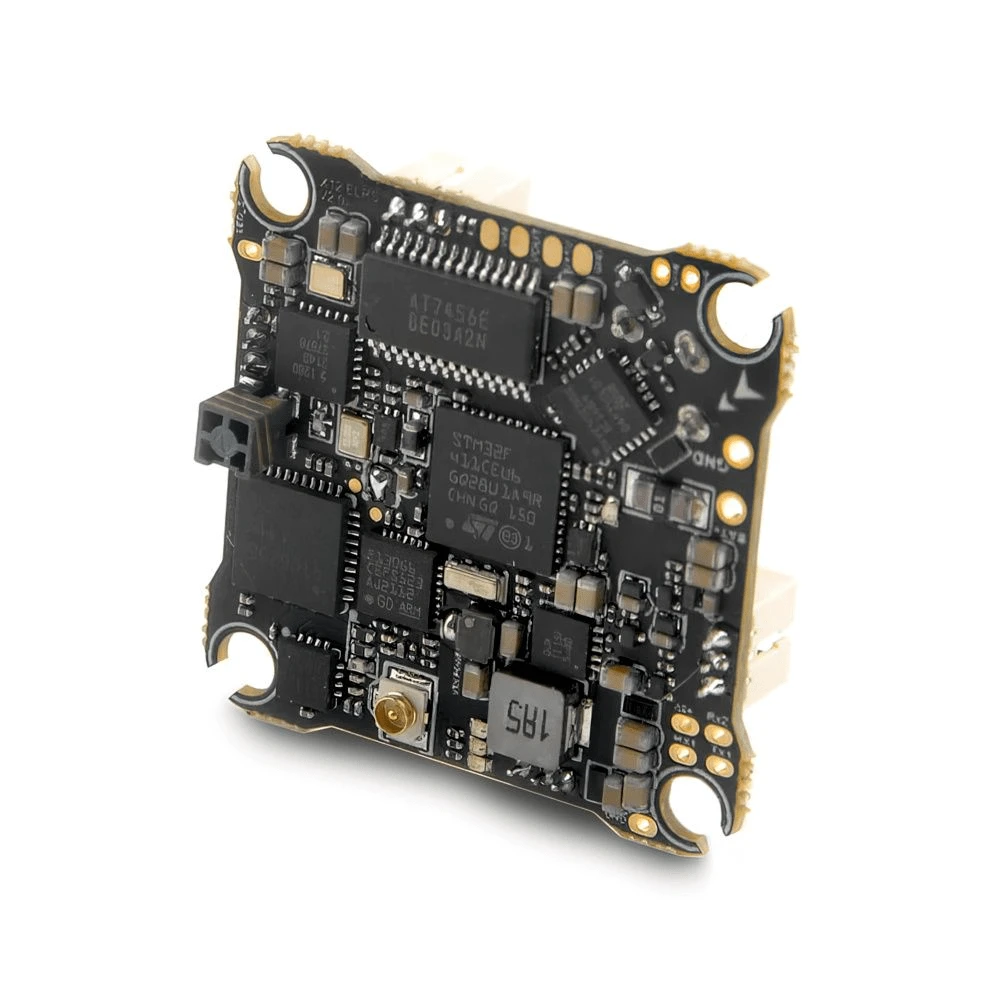

The HappyModel X12 2S AIO Whoop Flight Controller (F4 FC / 12A 4in1 ESC / 25-400mW VTX) AIO board featuring an F4 Flight Controller, onboard 12A 4-in-1 ESC, 5.8GHz OpenVTX and built-in receiver of your choice! Happymodel continues to impress with yet another fantastic AIO for whoop applications!
Browse the rest of our
Whoop AIO boards
and all our
Happymodel products
!
Specifications
- Input Voltage: 1-2S
- MCU: STM32F411CEU6 (100MHZ, 512K FLASH)
- Gyro: MPU6000 or ICM20689 or BMI270
- Max Continuous Current: 12A
- VTX Output Power: 25-400mW
- Antenna Connector: U.FL
- OSD: Yes
- Betaflight Target: ELRS Version: CRAZYBEEF4SX1280, PNP Version: CRAZYBEEF4DX
- ESC Firmware: Z_H_30_REV16_7
- Mounting Pattern: 25x25mm
- Weight: 5.1g
ELRS Version
- Packet Rate: 50Hz/150Hz/250Hz/500Hz
- ELRS Firmware Version: V2.0
- RF Frequency: 2.4GHz
- Antenna: SMD antenna
- Telemetry output Power: <12dBm

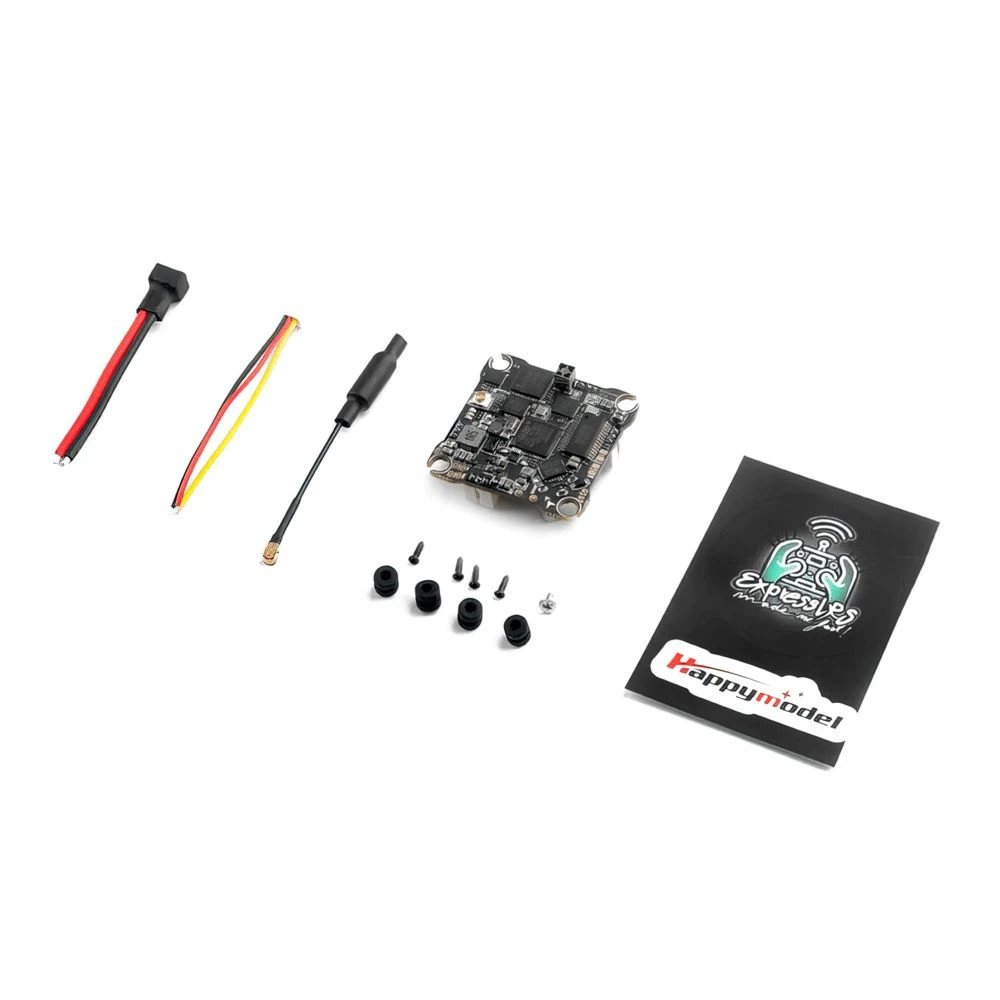

Includes
- 1x HappyModel X12 2S AIO Whoop Flight Controller (F4 FC / 12A 4in1 ESC / 25-400mW VTX)
- 1x Connecting Wires Set
- 1x Hardware Set
- 1x Antenna
| Receiver | ELRS 2.4GHz, PNP (No Receiver), FrSky |
|---|
