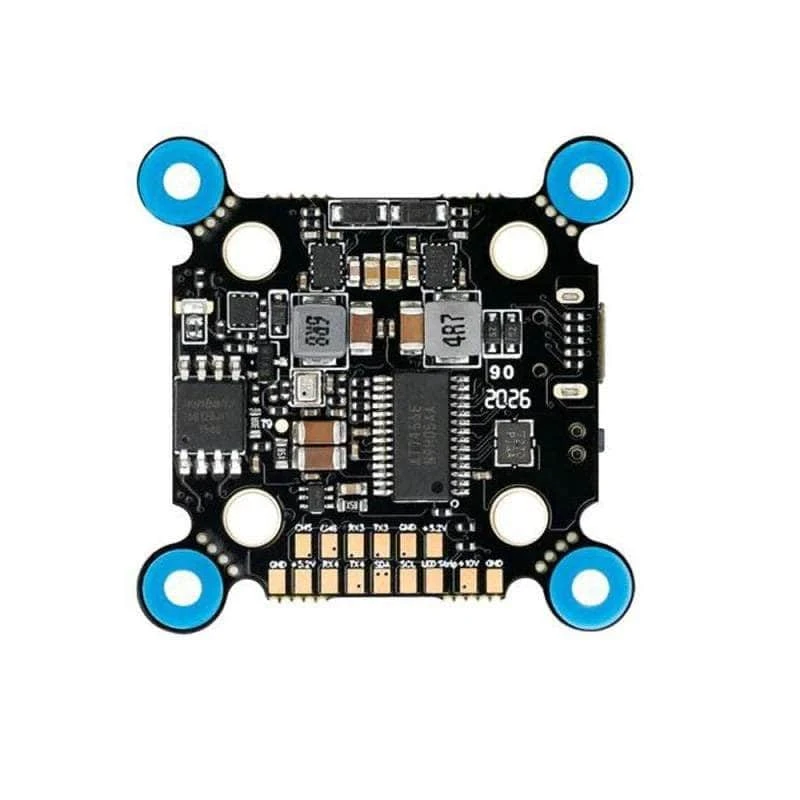

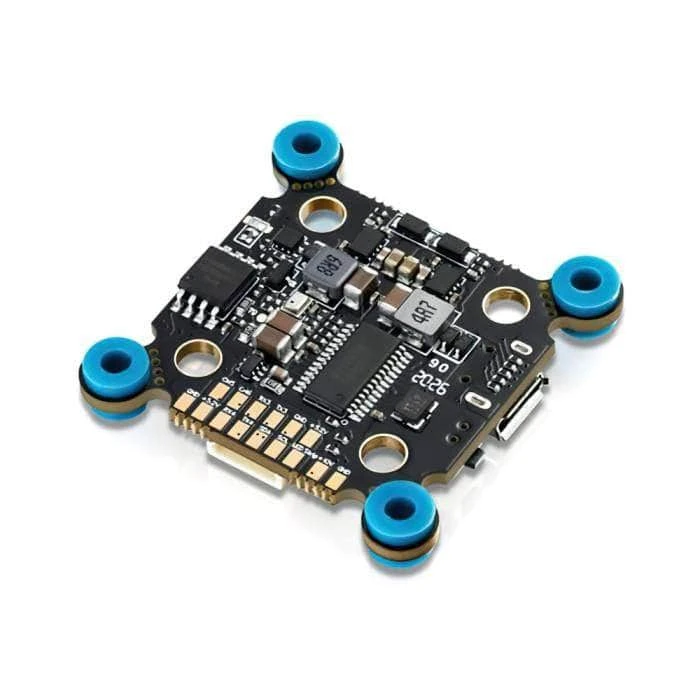

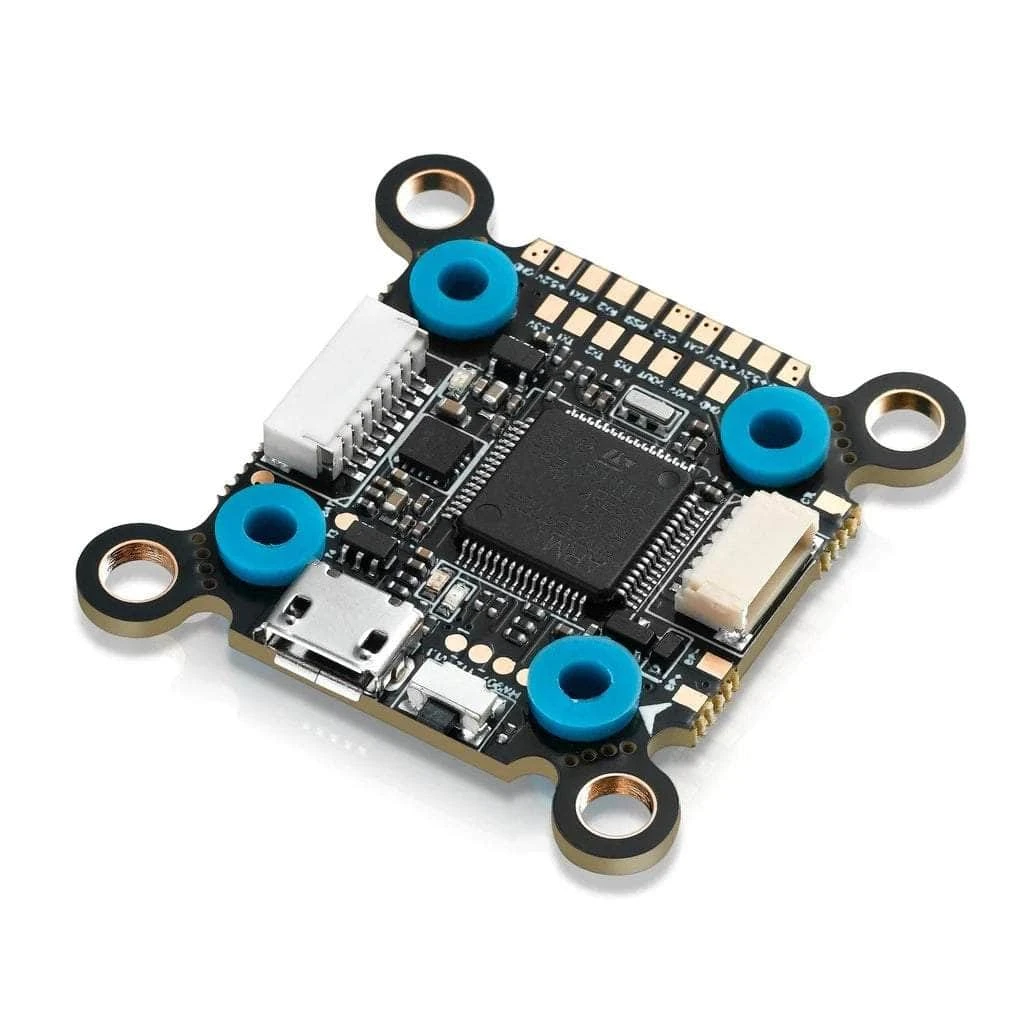

Hobbywing XRotor F7 3-6S 20×20 / 30×30 Convertible Flight Controller

Take a look at the XRotor F7 Convertible Flight Controller from Hobbywing. This FC is similar to other versions with its OSD, and voltage monitoring, but the F7 now comes with an all-new 5V & 12V dual BEC Circuit and a special interface for the DJI image transmission system. The XRotor F7 Convertible flight controller is equipped with STM32F722 MCU which has a powerful computing ability and fast running speed. High sensitivity ICM20602 six-axis motion sensor, built-in 5V & 12V double BEC, integrated OSD, and a pitch module.

Check out our other

flight controllers

, and our

Hobbywing selection

!

Features

• Equipped with STM32F722 MCU which has powerful computing ability and fast running speed, and high sensitivity MPU6500 six-axis motion sensor.
• Supports BetaFlight, Cleanflight, Butterflight, Inva, and other mainstream FPV firmware.
• DJI image transmission system port equipped with corresponding flat cable
• Supports bidirectional DShot digital throttle communication.
• Unique installation design and shock absorption structure.
• On-board large capacity Flash memory chip.
• On-board 5V & 12V dual BEC circuit.
• On-board Pit Switch module.

Specifications

• Firmware: HOBBYWING_XROTORF7CONV
• FC Programming: Supported
• Programming via Betaflight/ Cleanflight-configurator
• Compatible with (Modes) PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, PROSHOT1000
• Compatible with (Transmitters) PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL
• OSD Built-in
• Input Voltage: 3-6S
• Gyro: MPU6500
• Voltage Monitoring Supported
• Current Monitoring Supported
• External Buzzer Supported
• LED Control Supported
• BEC 5V @ 1.5A ; 10V @ 1.5A
• Mounting Pattern: 20x20mm M3 / 30x30mm M3
• Size 32x32mm
• Weight 3.3g



Manual Download

Includes

• 1x Hobbywing XRotor F7 3-6S 20×20 / 30×30 Convertible Flight Controller
• 1x Soft Mounting Grommets Set
• 1x Signal Cable
• 1x User Manual
