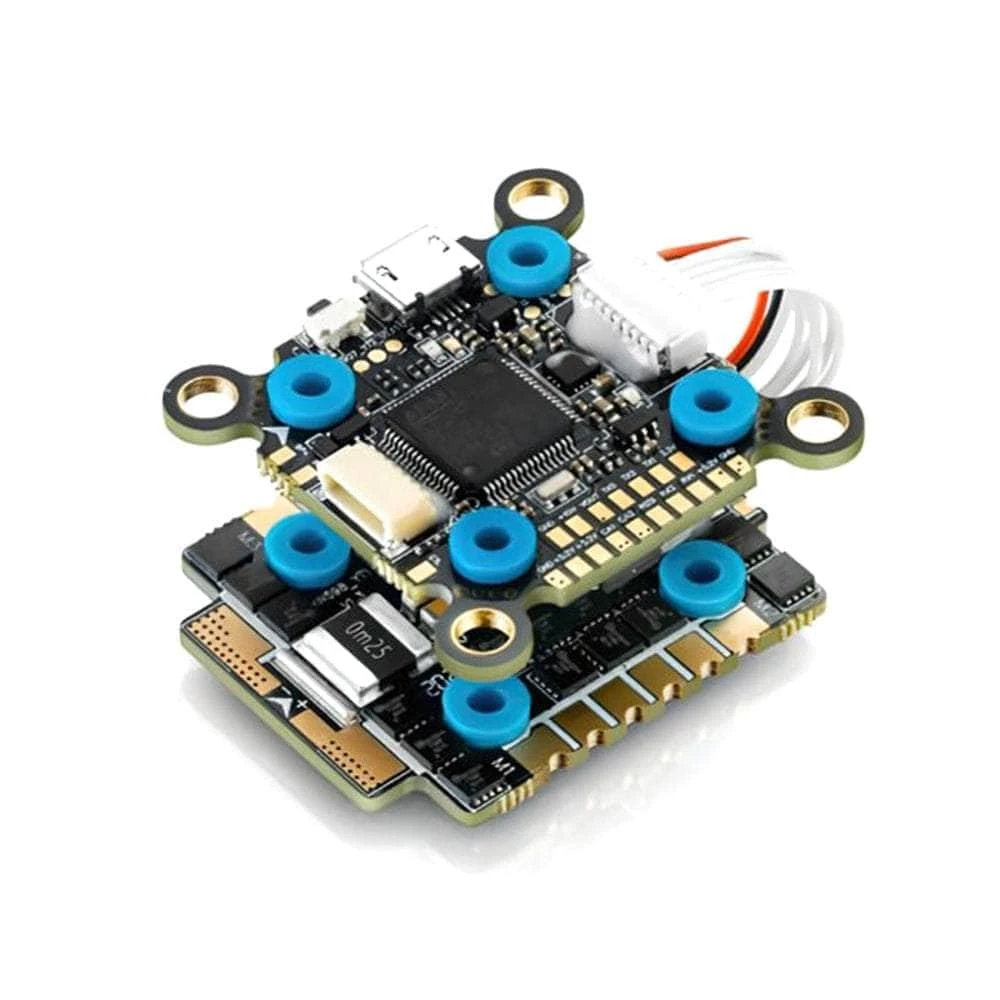

Hobbywing XRotor F722 3-6S 20×20 Stack/Combo (F7 FC / 32Bit 45A 4in1 ESC)
Original price was: $15.60.$10.92Current price is: $10.92.
- Efficiency meets excellence in customer care.
- Your needs, our top priority.
- Best price, safe shopping guarantee
- Fast reliable delivery options
Equipped with a powerful STM32F722 MCU and sensitive MPU6500 6-axis motion sensor, the XRotor F722 Stack/Combo offers bidirectional DShot digital throttle communication and a large on-board Flash memory. It also supports various FPV firmwares with adjustable parameters. Its 30/20mm double hole distance and flexible flat cable module (ideal for Hobbywing tower 4in1 ESC) with shock absorption mechanism reduce external vibration impact. For convenience, it includes a PIT switch module, dual BECs (5V & 12V), DJI image transmission port, Amp/Volt monitoring port, buzzer output port, and Micro USB port.
Check out all our
20×20 stacks
, and our
Hobbywing selection
!
Features
- Manual for the
FC
- Manual for the
ESC
- Super hardware and running speed
- Special interface for DJI image transmission system
- On-board 5V & 12V dual BEC circuit
- On-board Pit Switch module
- Perfectly support firmware of various FPV
- Unique installation design and shock absorption structure
- Perfectly match with Hobbywing ESC
- Volt/Amp monitoring port
- Buzzer output
- Micro USB
- Switch module of board load graphic transmission(VTX)
Specifications

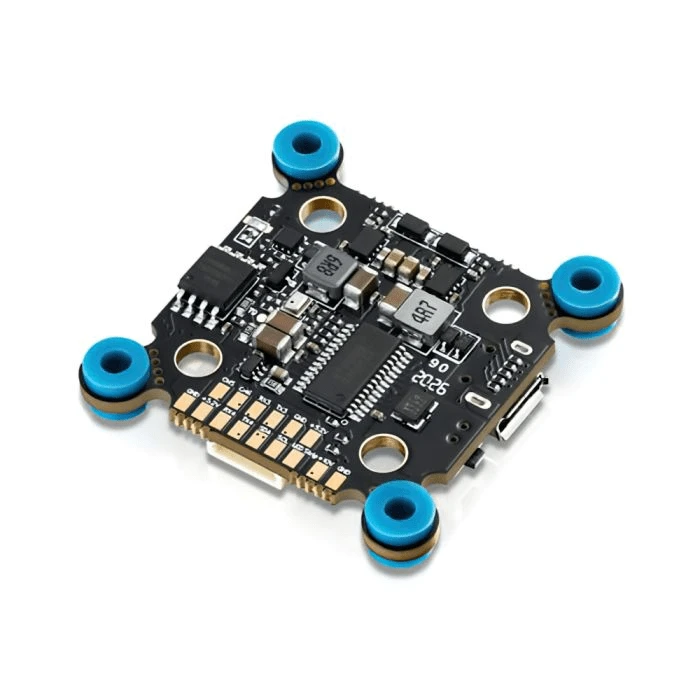

XRotor F7 FC
- MCU: STM32F722
- Gyro: MPU6500
- Barometer: No
- OSD: Yes
- Blackbox: Onboard
- UARTS: 4 Sets
- ESC Software: DShot300/600/12000
- ESC Telemetry: Yes
- Led Controller: Yes
- Input Voltage: 3-6s Lipo (12.6-25.2V)
- BEC: 5V 2A / 10V 2A
- Mounting Pattern: 20x20mm M3 / 30x30mm M3

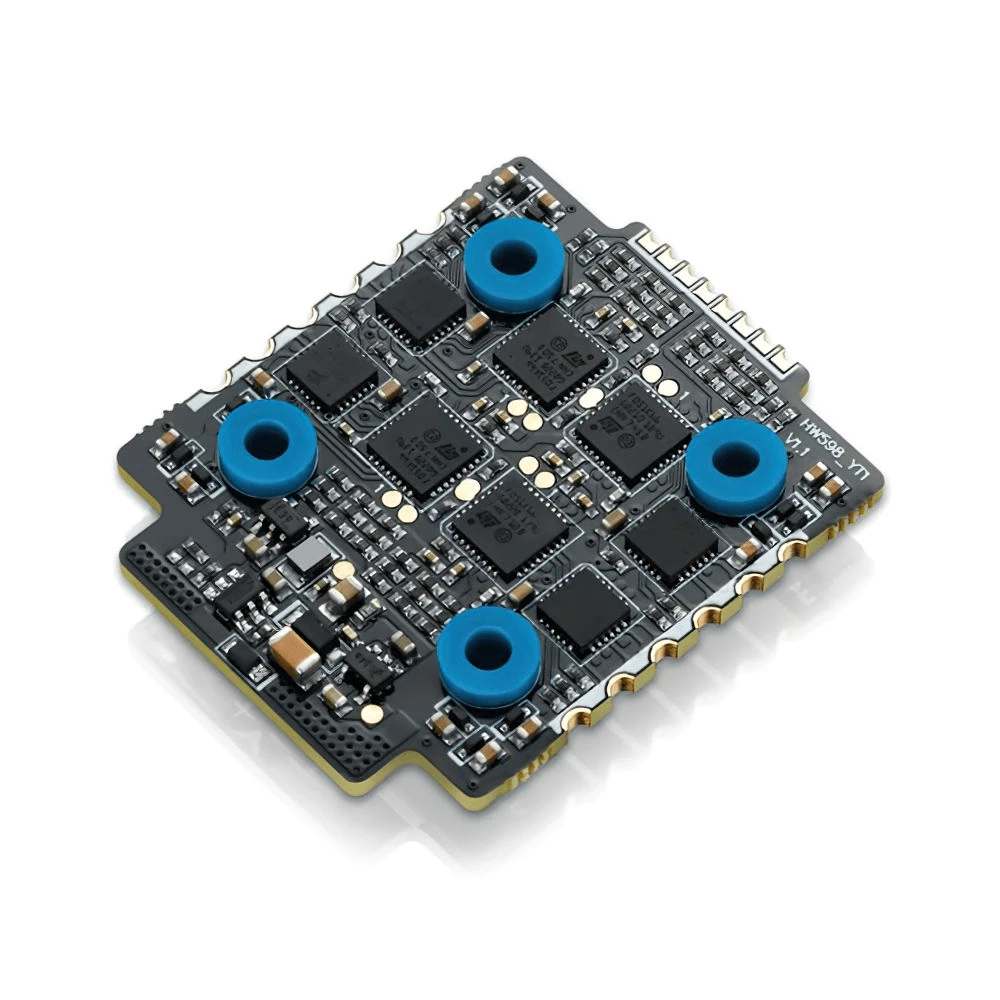

XRotor 45A BLHeli_32 ESC
- Input Voltage: 3-6S
- Max Continuous Current: 45A
- Max Burst Current: 60A
- BEC Output: NO
- Firmware: Hobbywing_XRotor_BLHeli-32 Version
- Throttle Calibration: Supported
- ESC Programming: Stick Programming, BLHeliSuite32
- DEO: Supported
- OneShot Mode: Supported
- Timing: Supported
- Motor Rotation: Supported
- Mounting Pattern: 20x20mm
- Weight: 12g
Includes
- 1x Hobbywing XRotor F722 3-6S 20×20 Stack/Combo (F7 FC / 32Bit 45A 4in1 ESC)
- 1x Hardware Set
- 1x AMASS XT60 Connector
- 1x Cable Set
