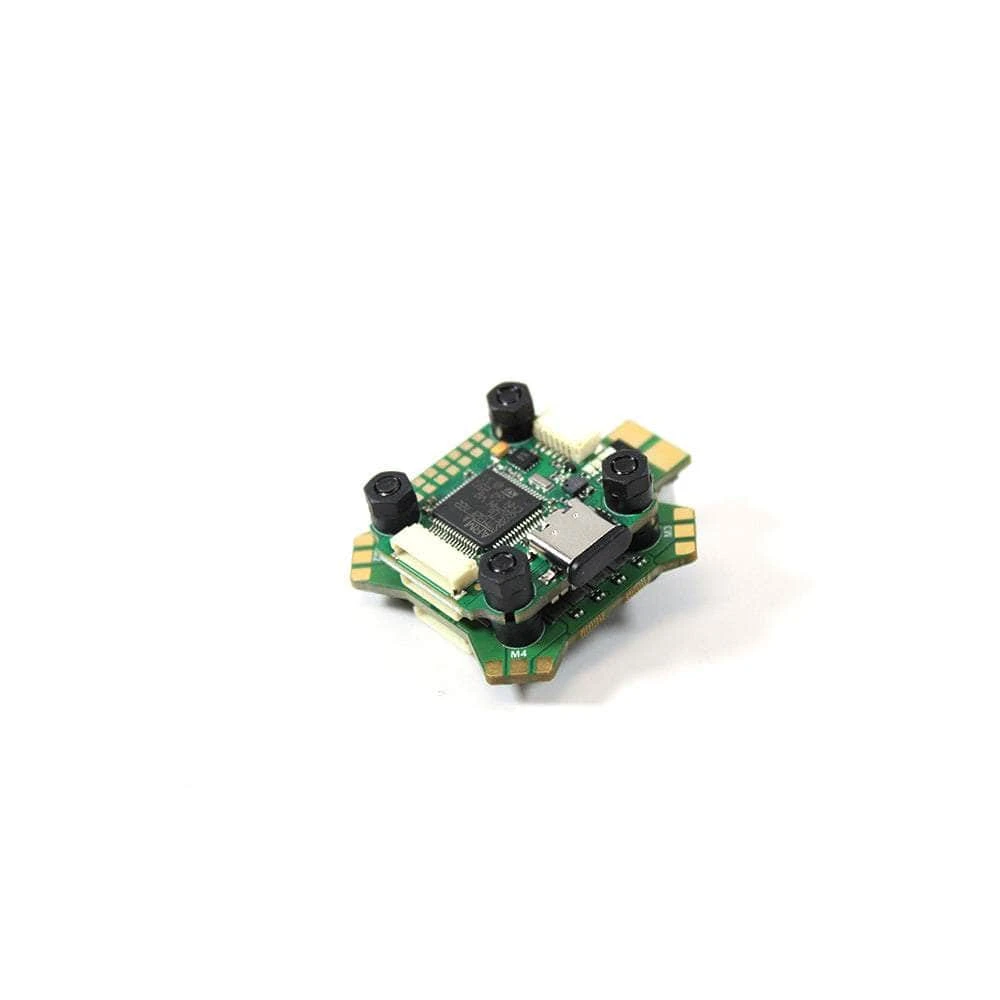

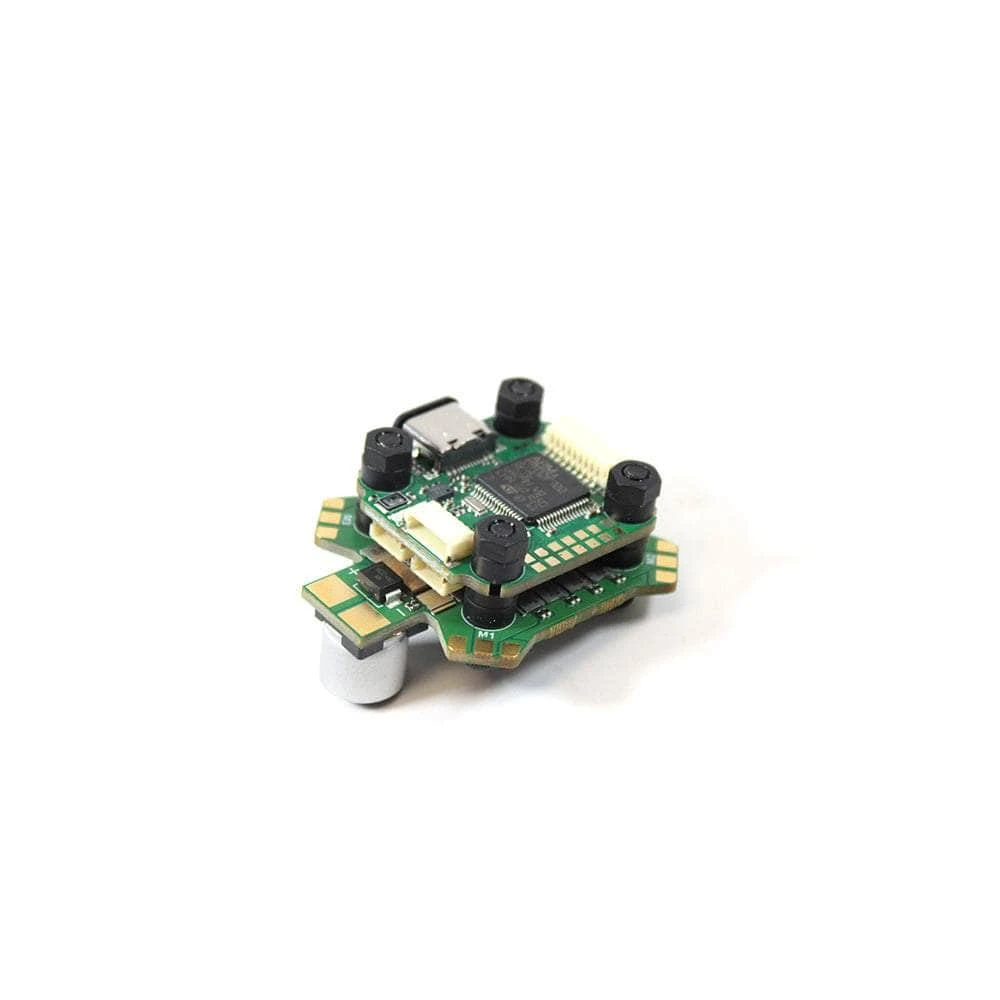

IFlight Blitz Mini F722 E55 2-6S 20×20 Stack/Combo (F722 FC/ 55A 32bit 4in1 V1.3 ESC)

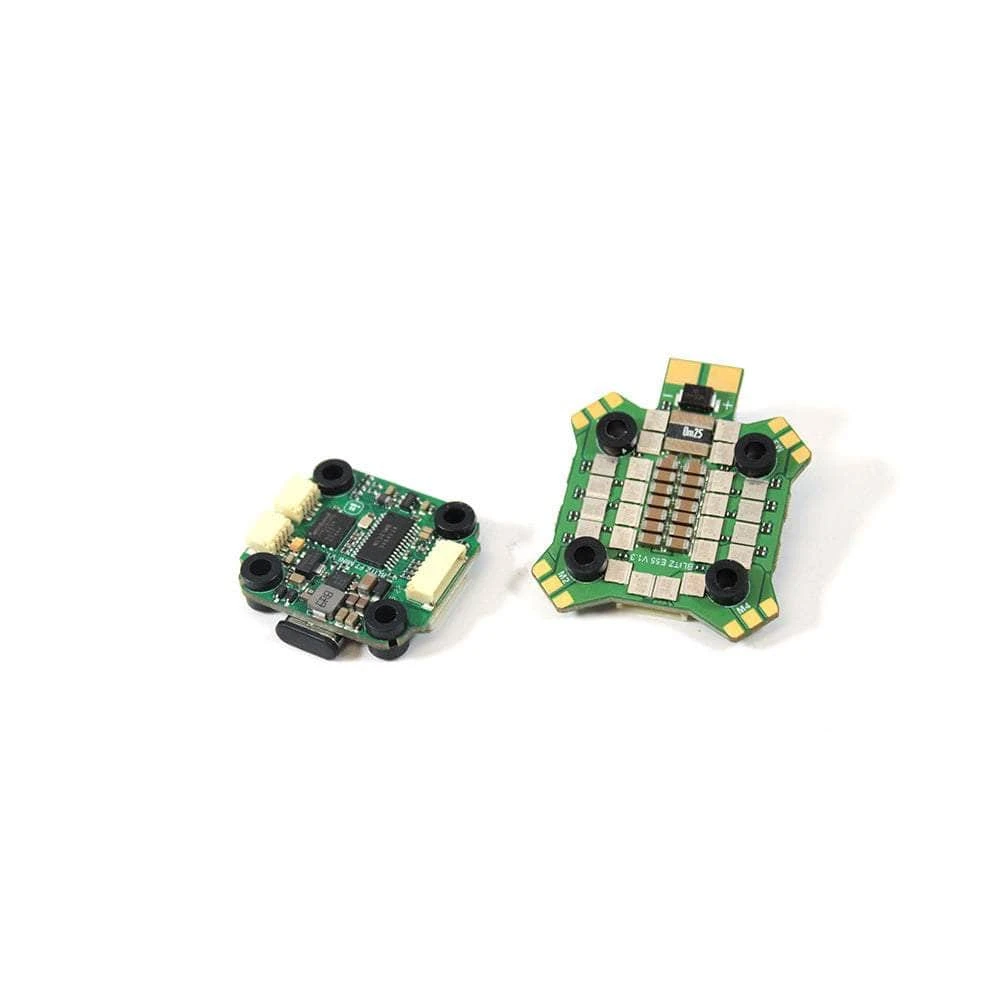

The new iFlight Blitz Mini F722 E55 2-6S 20×20 Stack/Combo (F722 FC/ 55A 32bit 4in1 ESC) series offers stellar performance at an affordable price. With an F7 processor and high-quality BMI270 gyro, this FC is all you could ever need for daily cruising or even hardcore freestyle and racing! And with these new 55 Amp BLHeli 32 Blitz 4-in-1 ESCs, you can handle even the most amp-hungry motors.  On the Bottom of the ESC, for the the version prior it used to have regular MOSFETS, but now with the V1.3 they come with Metal Mosfets!

Check out our other

20×20 Stacks & Combos

 as well as our entire

iFlight

 selection!

Features

• Improved circuit design, better components and lower electrical noise!

• DJI HD VTX Connector (Plug-and-Play / No soldering required)
• FC indicator LEDs for visual debugging
• BLITZ Mini E55 4-IN-1 ESC V1.3 – Metal Mosfets (Jan-28,2023)

Specifications

Blitz Mini F722

• Input Voltage: 2-6S
• MCU: STM32F722
• Gyro: BMI270
• Barometer: DPS310
• OSD Chip: AT7456
• Blackbox: 16MB
• UARTS: 6
• Motor outputs: 4x (SH1.0 connector)
• I2C: SDA / SLA pads
• LED: Yes
• Beeper: Yes
• Firmware Target: IFRC-IFLIGHT_BLITZ_F722
• FC Mounting Pattern: 20x20mm
• Dimensions: 30.5x27mm

Blitz Mini E55 4in1 ESC (v1.3

• Input Voltage: 2-6S
• Max. Continuous Current: 55A
• Max. Burst Current: 60A
• MCU: G071
• BEC: No
• Current Sensor: Yes
• Firmware: BLHeli32
• Target:  IFLIGHT_BLITZ_G071_01
• Mounting Dimensions: 20x20mm/Φ4mm
• Dimensions 35x42mm
• Weight: 11.3g

Includes

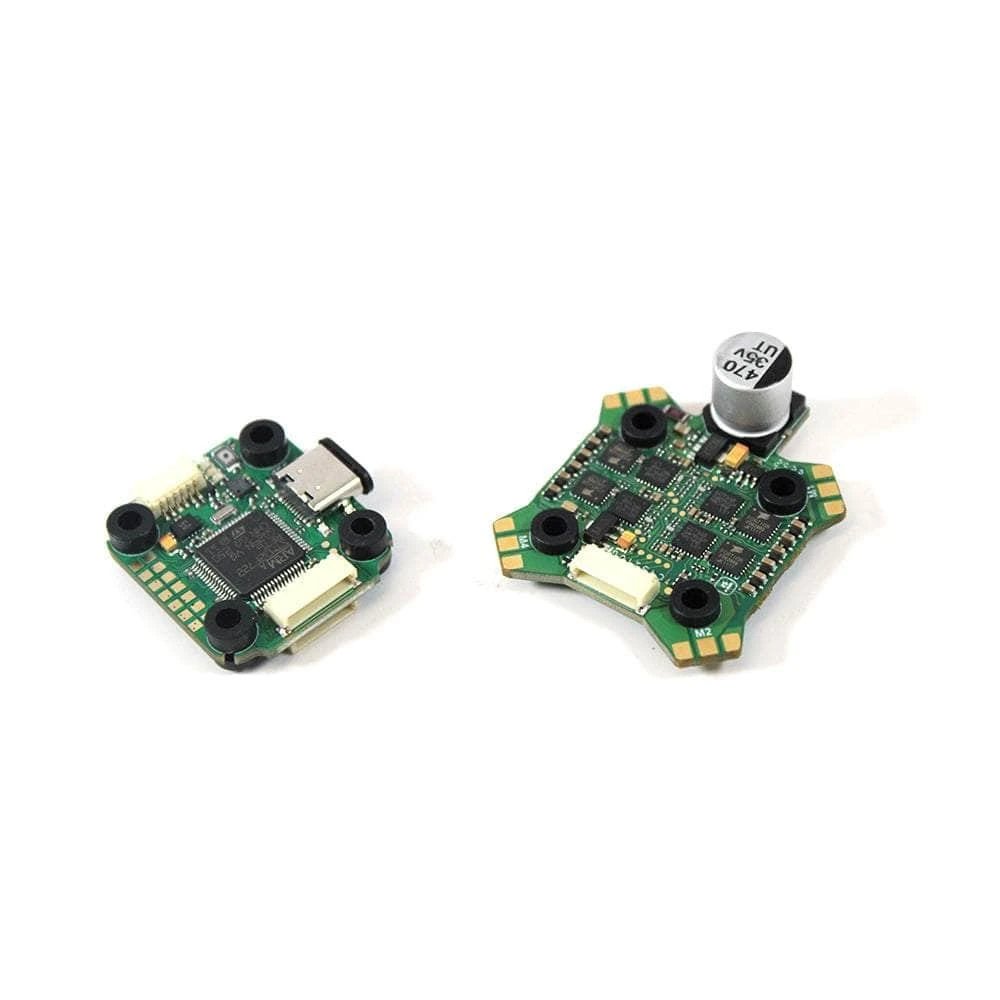

• 1x iFlight Blitz F7 Mini V1.1 20×20 Flight Controller
• 1x iFlight Blitz Mini E55 V1.3 32Bit 55A 2-6S 20×20 4in1 ESC
• 1x Wiring Set

Wiring Diagram
