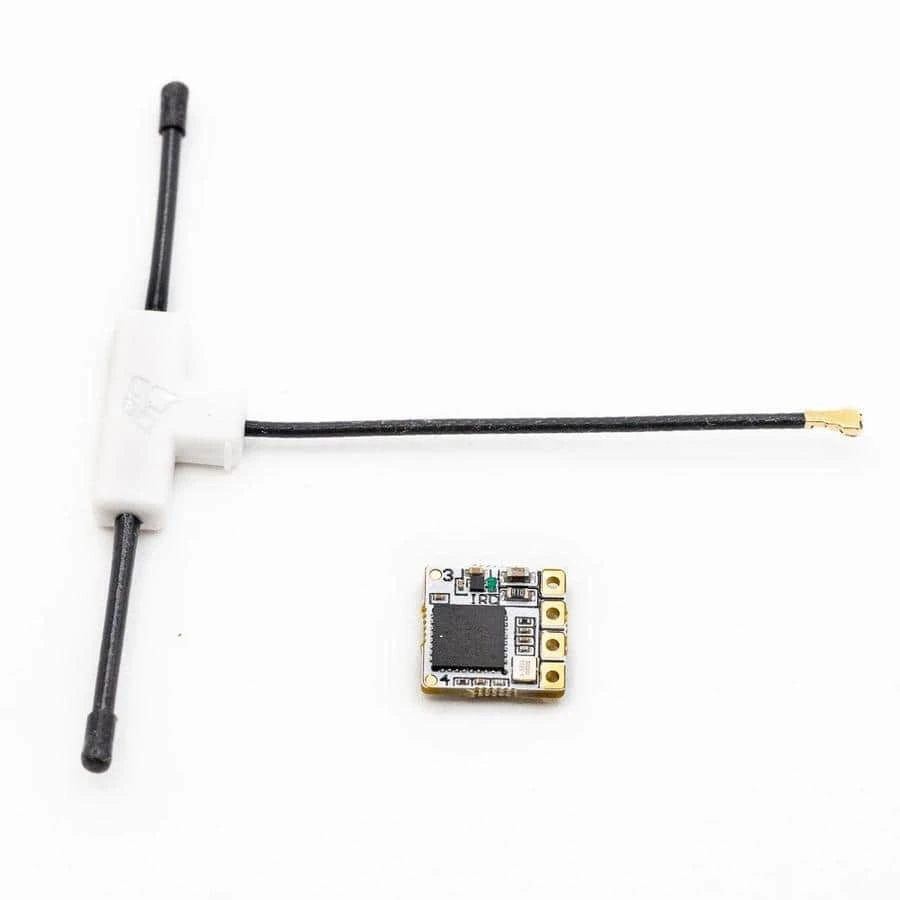

ImmersionRC Ghost Zepto 2.4GHz Micro Receiver W/ QT Antenna

All Ghost receivers currently have multiple binding methods. We recommend to bind via SRXL2 on a standard UART, the Ghost Protocol will be available with the release of OpenTX3.4.

Please refer to the

Manual

 for more information about binding.

The ImmersionRC Ghost Zepto is a small and lightweight 2.4GHz receiver that is perfectly suited for the ImmersionRC Ghost and Tramp Nano. Comes with an Over-the-air (OTA) upgradeable firmware, SBus, SBus-Fast (200k), SRXL-2 (400k), GHST, SBus Inverted serial formats, and other specs!

Ghost is a 2.4GHz Radio Control system for R/C Model Control, with a focus on the FPV community.

Designed for both reliable control at extreme range, and extremely low latency with best-in-class frame rate for the Race circuit.

The Zepto is the smallest, lightest Race/Long range receiver in the business, bar none. Same sensitivity, and latency, as its big brother, the Atto.

Check out all our

RC transmitters, modules and accessories

 as well as our

ImmersionRC selection

, and the rest of our

Ghost products

.

Specifications

• Frequency Range : 2406 – 2479MHz
• Modulation: Chirp Spread Spectrum + Adaptive FHSS
• Binding: Bidirectional with confirmation and protocol negotiation
• RF Profiles: Race, Pure Race, ‘Normal’, and Long Range, more to come
• Downlink Tx Power: +13dBm
• Sensitivity: -117dBm in Long Range mode
• Serial Formats: SBus, SBus-Fast (200k) , SRXL-2 (400k), GHST, SBus Inverted
• Firmware: Over-the-air (OTA) upgradable
• Power Supply: 5V recommended, as low as 3.3V tolerated
• vTx control: Tramp control from ‘T’pin on Rx, regardless of selected serial format
• Antenna Connector: MHF4 (requires micro qT antennas, not compatible with Atto qT antennas)
• Antenna (included): MHF4-equipped micro qT with 50mm cable
• Dimensions: 10mm x 10mm, 0.35g (w/o antenna)

Includes

• 1x ImmersionRC Ghost Zepto 2.4GHz Micro Receiver

Manual
