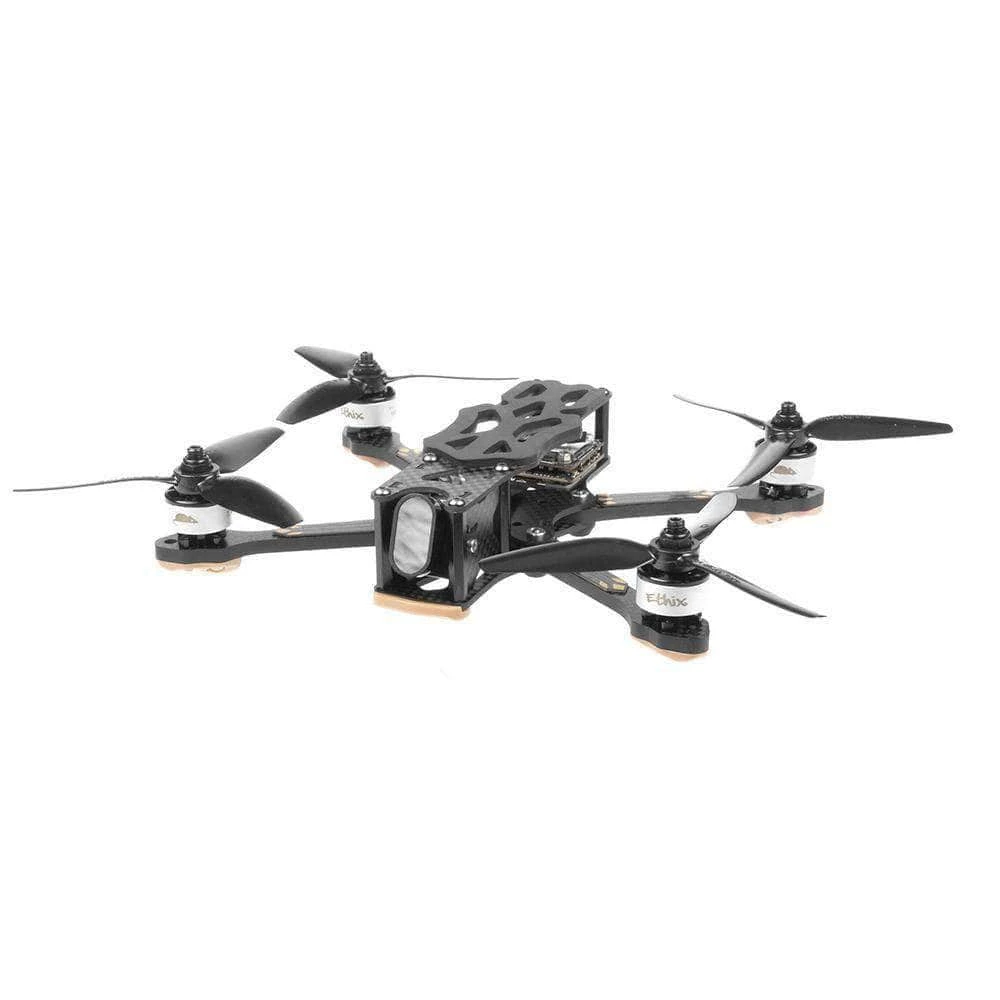

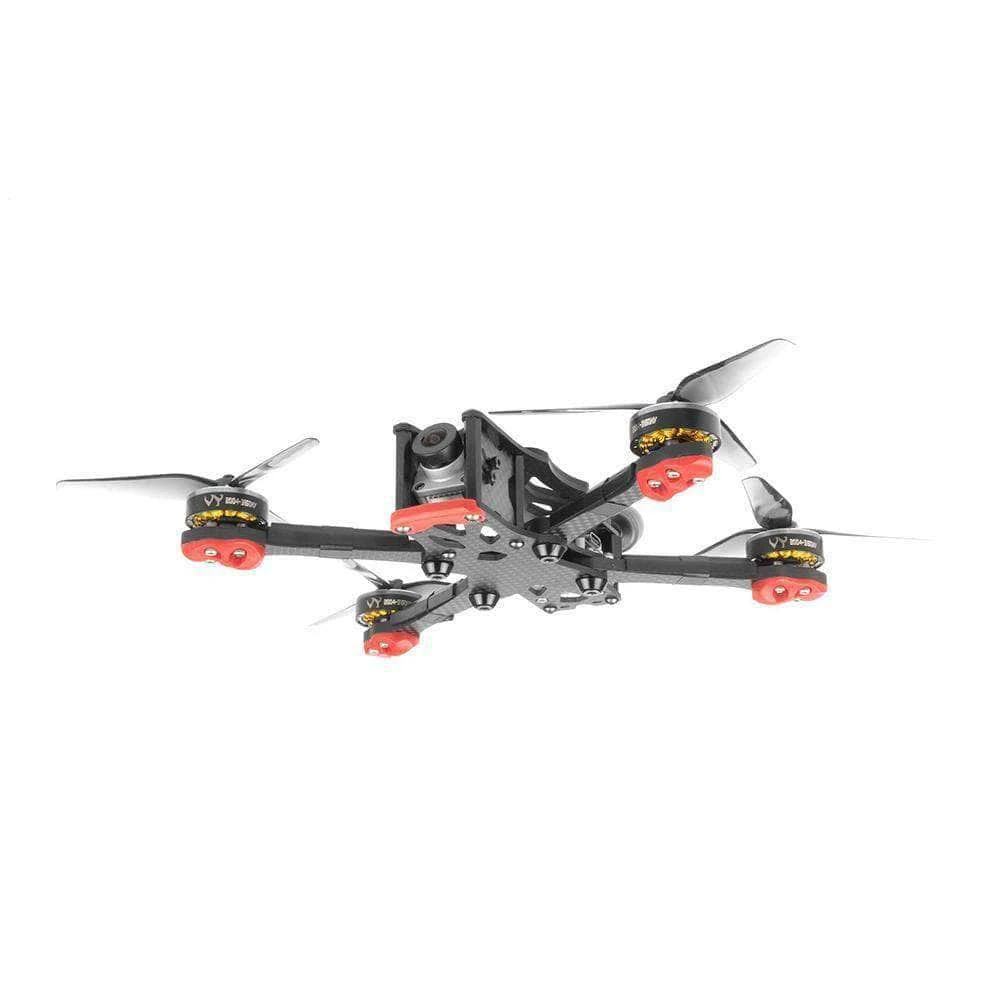

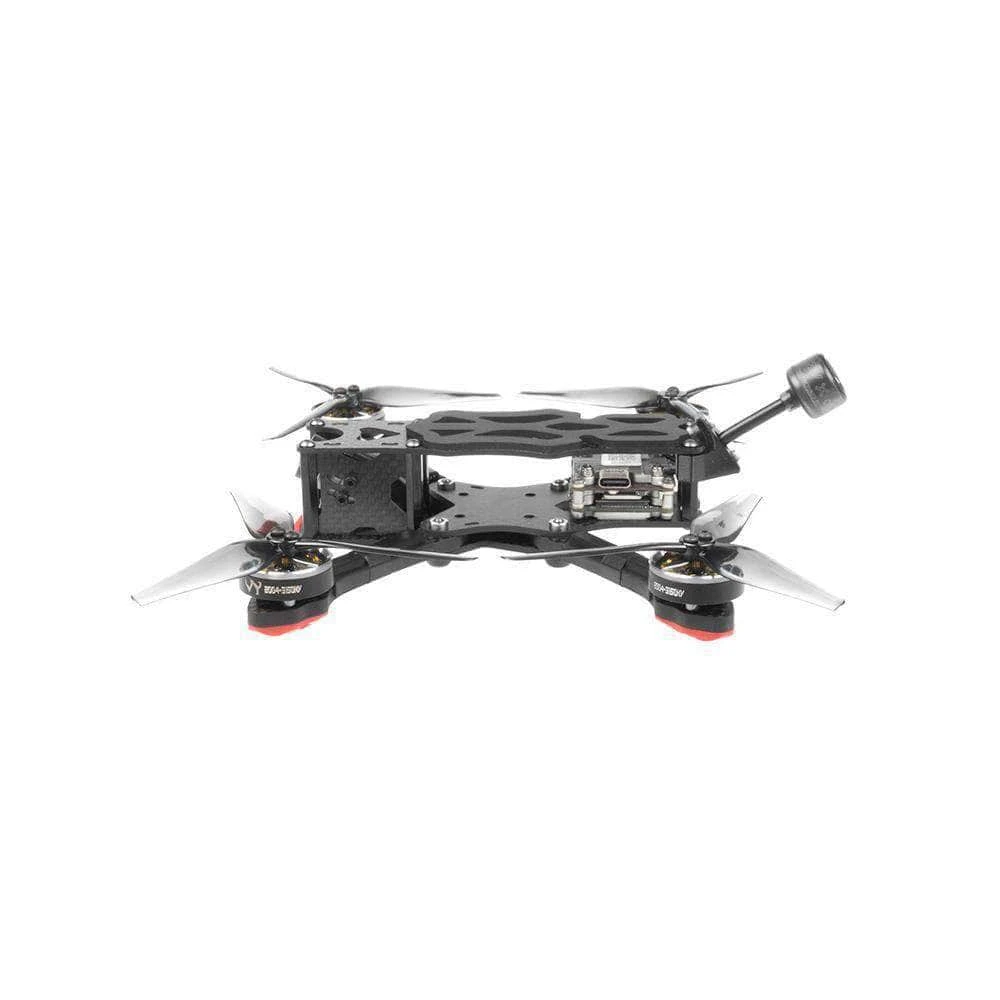

The infamous ImpulseRC Micro Apex 4″ Frame Kit has been shrunk down into a micro-size platform!
The micro Apex retains all the unique innovations of the original Apex such as zero arm slop/resonance, compressed-X arm geometry, and an optimized center of gravity.
This frame is capable of sub 250g flight and can be outfitted as a micro long-range rig or a freestyle ripper!
Only includes carbon, hardware, and accessories specified below.
We also carry the
Micro Apex 3″ Frame
!
Check out the
ImpulseRC Micro Apex Frames and Accessories Collection
and our full range of
ImpulseRC Gear
!
Features
- Full crash damage warranty on all parts for 1 year
- Perfect for Caddx Vista, 4K Tarsier or classic analog setup
- Dual stack, 20×20 M3 and M2 centre, 20×20 M2 rear
- Fits M2 9x9mm motors and M2 12x12mm motors
- Injection moulded arm skids and front bumper
- Injection moulded fitted wire guards to protect from prop strikes
- Two battery pads included, 2mm rubber and ultra-light hook pad
- 4” frame weight 61g, carbon fibre + hardware
- 4mm thick arms, single shoulder bolt per arm
- 2mm thick upper and lower main plates
- 1.5mm thick top and camera plates
Includes
Carbon
- 1x Micro Apex Arm Key CF 3.5mm
- 1x Micro Apex Top Plate CF 1.5mm
- 1x Micro Apex Main Lower CF 2mm
- 1x Micro Apex Main Upper CF 2mm
- 2x Micro Apex Cam Side Plate CF 1.5mm
- 4x Micro Apex 4″ Arm CF 4mm
Accessories
- 1x Micro Apex Hook LIPO pad – BLACK
- 1x Micro Apex LIPO pad – 2mm BLACK
- 1x Diamond File – Flat (Mini)
- 1x Diamond File – Round (Mini)
- 1x Lipo Strap – Small – ImpulseRC
- 1x Micro Apex Plastics Kit – BLACK
- 1x Micro Apex Arm Covers – BLACK – (4 Pack)
Hardware
- (4x) M3x11mm Shoulder bolt – High Tensile Carbon Steel – Gunmetal
- (4x) 3x10mm Cone Washer – Aluminium – Black
- (4x) M3 Press Nut – Stainless Steel
- (1x) M3x6mm Cap – High Tensile Carbon Steel – Gunmetal
- (12x) M2.5x8mm Button – High Tensile Carbon Steel – Gunmetal
- (16x) M2x6mm Cap – Stainless Steel
- (16x) M2x8mm Cap – Stainless Steel
- (4x) M3x10mm Countersunk Screw – Stainless Steel
- (4x) M3x16mm Countersunk Screw – Stainless Steel
- (4x) M2x18mm Countersunk Screw – Stainless Steel
- (4x) M2 Lock Nut – Stainless Steel
- (4x) M3 Lock Nut – Stainless Steel
