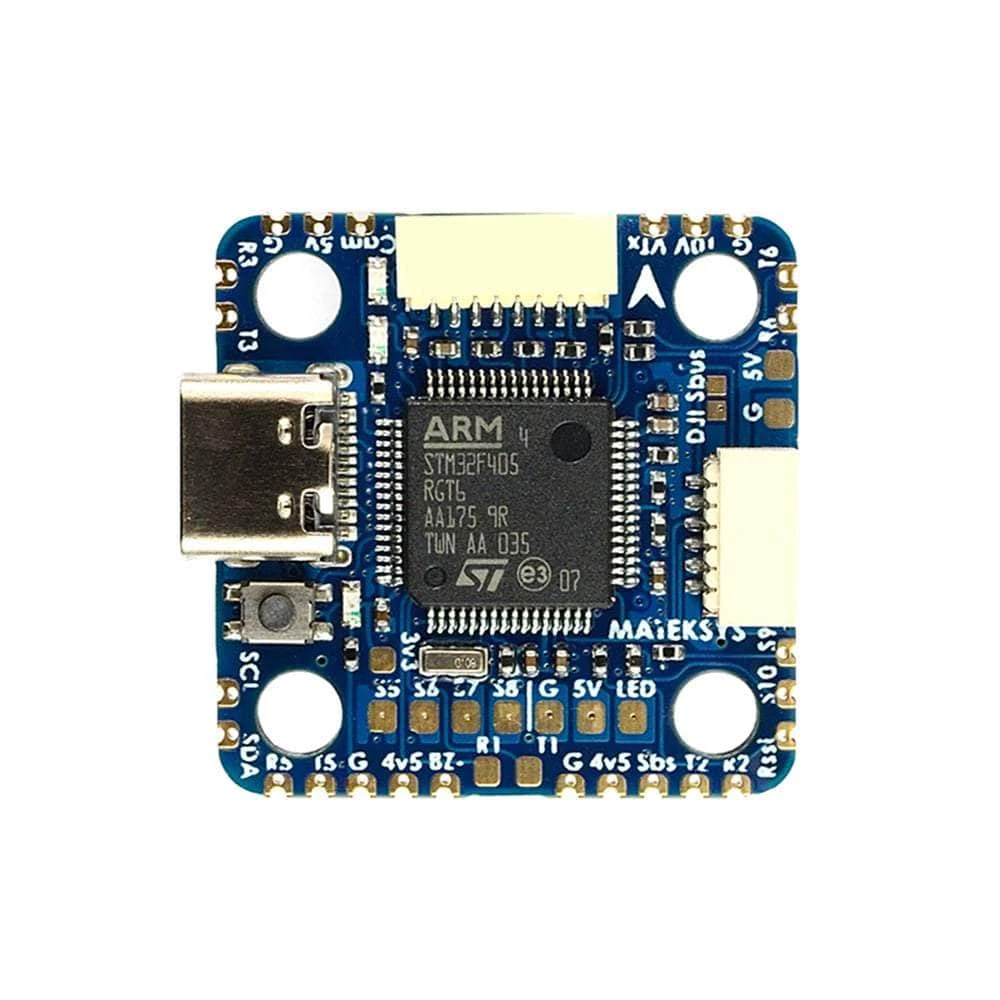

Matek F405-miniTE 20×20 Flight Controller

Another solid choice in the Matek F405-miniTE 20×20 Flight Controller by a company that leads the pack when it comes to quality and performance.

Check out all our

20×20 FCs

 as well as

the entire Matek selection

!

Features

• F405 has 1MB flash which can run with ArduPilot.  even with INAV firmware.
• Redesigned target MATEKF405TE support 8x bi-directional DSHOT.
• Support DJI air unit PnP, and a 10V BEC for DJI OSD or analog VTX
• Compared with F722-miniSE 8motors or 6motor+2servos, F405-miniTE supports 8motors+3servos in INAV/BF multirotor mixer

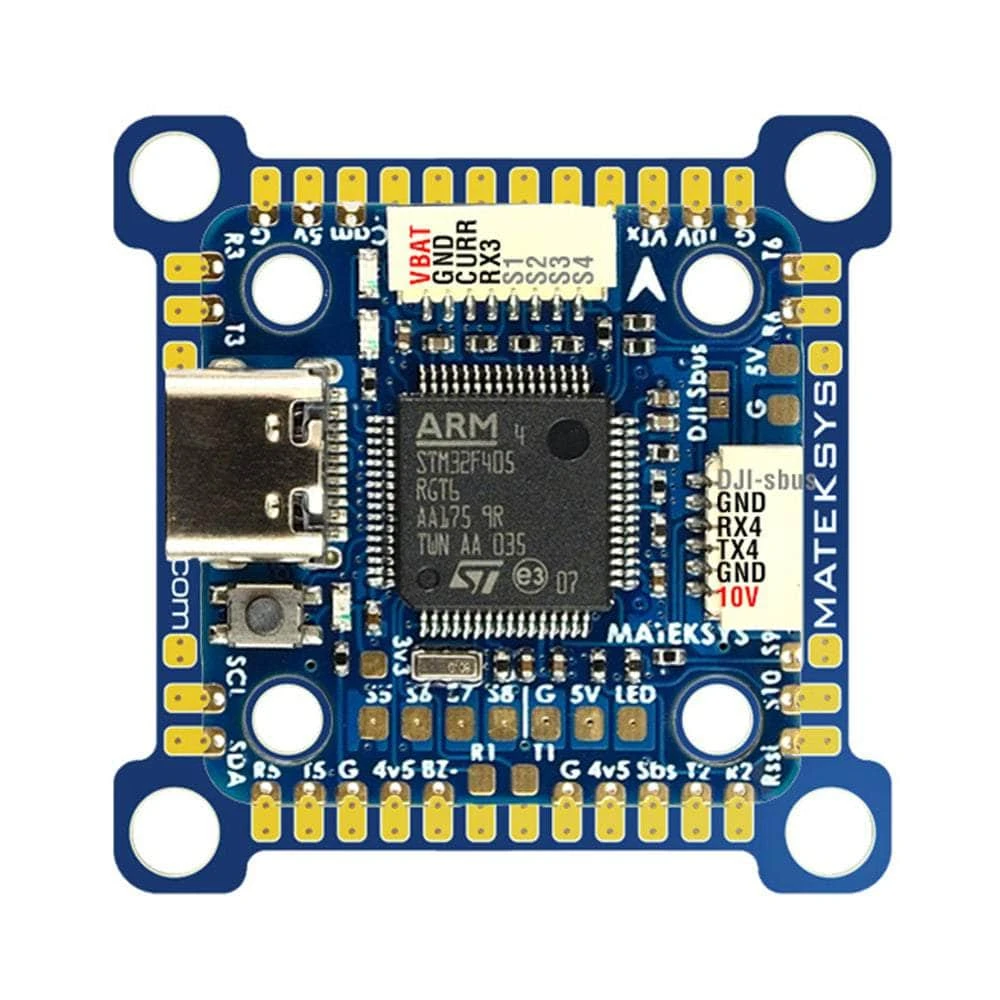

• Convertible 20mm to 30.5mm mounting

Specifications

• Input: 6~30V (2~6S LiPo)
• MCU: STM32F405RGT6
• IMU: ICM42688-P
• OSD: AT7456E
• Baro: Goertek SPL06-001 (I2C)
• Blackbox: 16M-byte Flash memory
• UARTs: 6
• PWM outputs: 12 (8 Dshot)
• I2C: 1
• ADC: 4 (VBAT, Current, RSSI, Airspeed)
• Current Sensor: No
• PINIO: 2
• BEC: 5V 1.7A & 10V 1.4A
• Mounting Pattern: 20×20 M2/M3, 30X30 M3
• Weight: 5g

Includes

• 1x Matek F405-miniTE 20×20 Flight Controller
• 1x 20mm to 30mm conversion plate(blue PCB)
• 6x Silicon grommets M4 to M3
• 6x Brass grommets M3 to M2
• 1x SH1.0_8pin cable 5cm (including 2x 8pin connectors) for 4in1 ESC
• 1x SH1.0_6pin to GH1.25_8pin cable 8cm for DJI Air Unit
