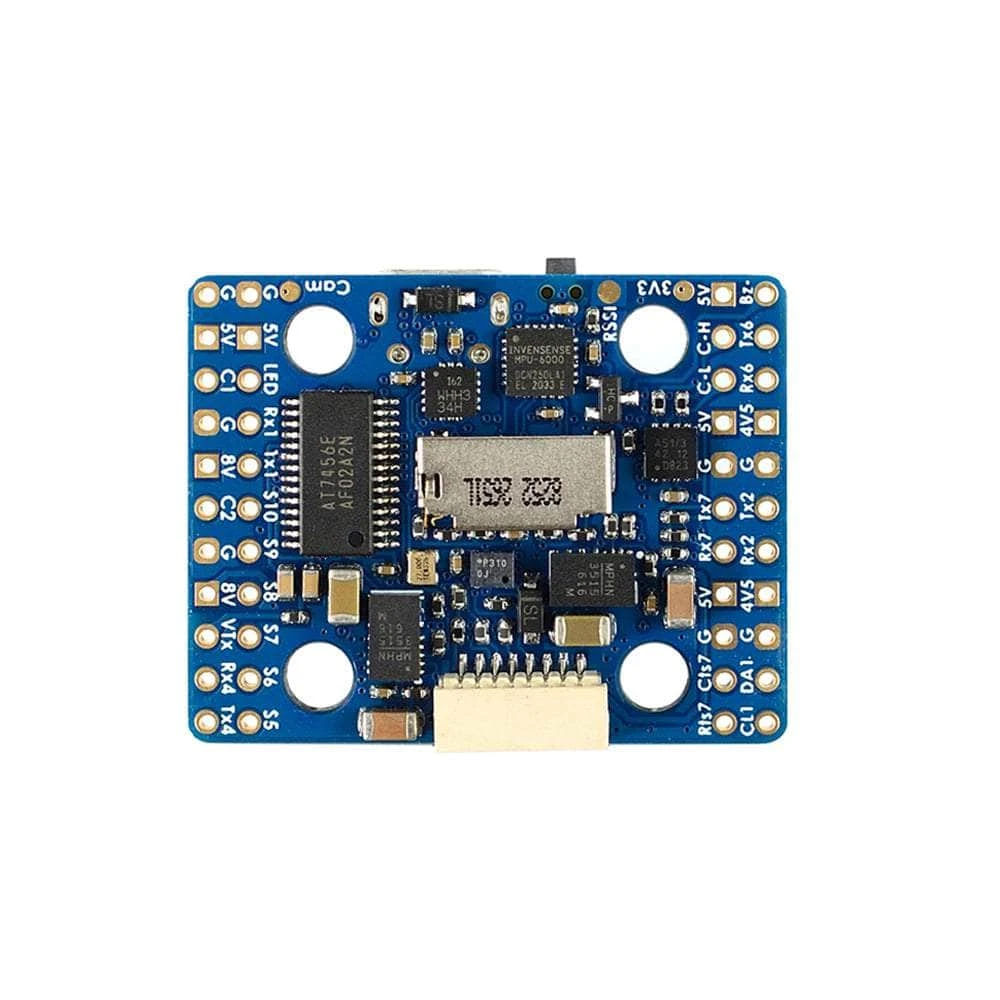

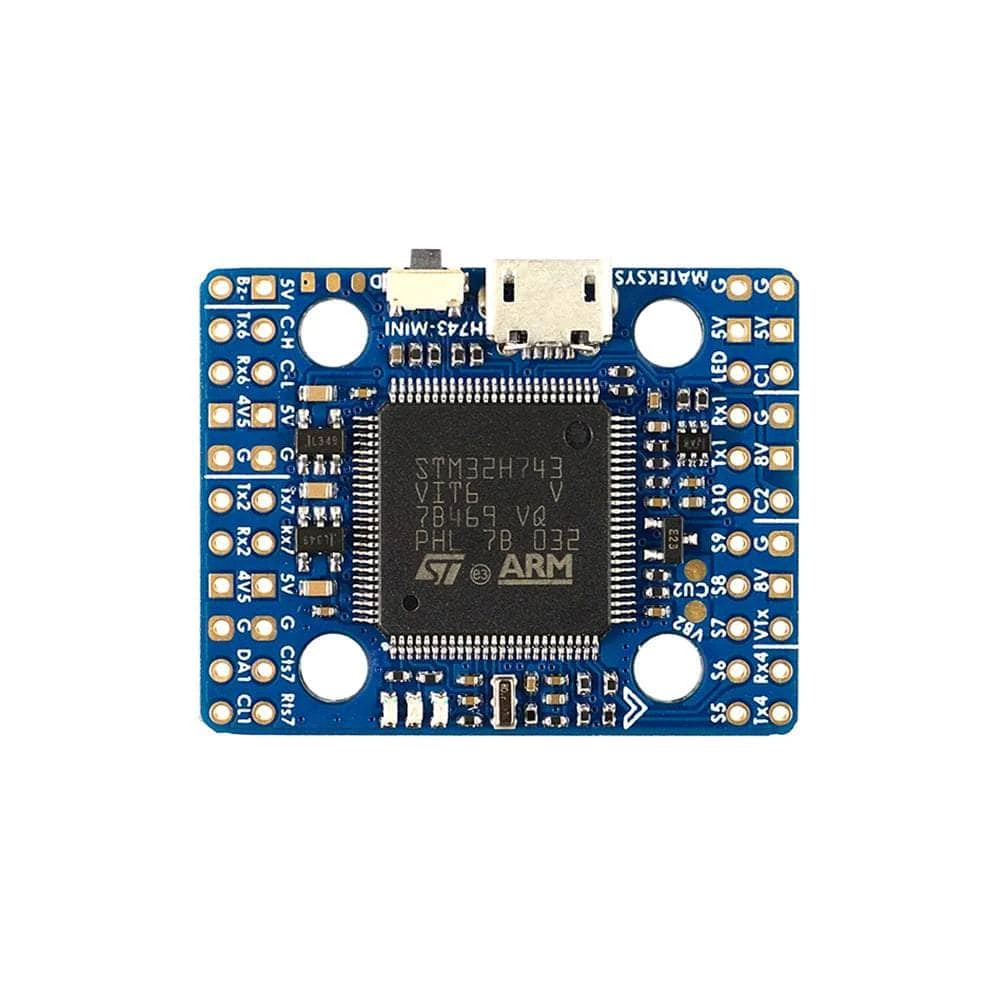

Matek H743 Mini V3 20×20 Flight Controller

Packed with features, the H743 Mini from Matek is ready to go. Compatible with INAV, Betaflight, and ArduPilot.

Check out our

20×20 FCs

 as well as

the entire Matek selection

!

Specifications

• Input Voltage: 2-8S
• MCU: STM32H743VIT6, 480MHz
• IMU: ICM42688-P (SPI1) & ICM42605 (SPI4)
• Baro: Infineon DPS310 (I2C2)
• OSD: AT7456E (SPI2)
• Blackbox: MicroSD card socket (SDIO)
• UARTs: 5.5 (1,2,4,6,7, Rx8)
• PWM Outputs: 11
• I2C: 2 (I2C1/DA1 CL1 pads, no I2C2 breakout)
• CAN: Yes (C-H, C-L pads)
• BEC: 5V 1.5A cont. (Max.2A)
• BEC: 8V 1.5A cont. (Max.2A),   8V outputs stable when Vbat>=10V,  8V outputs 80% of Vbat when Vbat< 10V
• LDO 3.3V: 200mA
• VB2 pad supports Max. 69V (voltage divider 1K:20K)
• Static Power: 200mA@5V with Betaflight,  150mA@5V with ArduPilot
• ADC: 5 (VBAT, Current, RSSI, VB2, CU2)
• Dual Camera Inputs Switch: Yes
• 8V Power ON/OFF Switch: Yes
• Firmware: MATEKH743
• Mounting Pattern: 20×20 M3
• Dimensions: 36x28x6.5mm
• Weight: 7g

Includes

• 1x Matek H743 Mini V3 20×20 Flight Controller
• 6x Silicon grommets M4 to M3
• 6x Brass grommets M3 to M2
• 1x JST-SH1.0_8pin cable, 5cm
• 2x JST-SH1.0_8pin connectors
