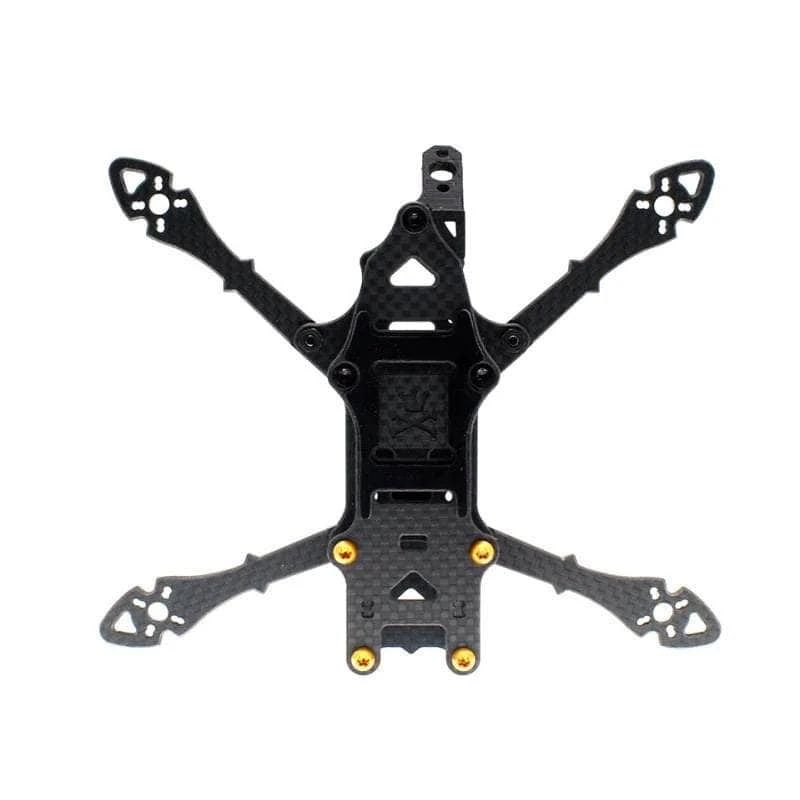

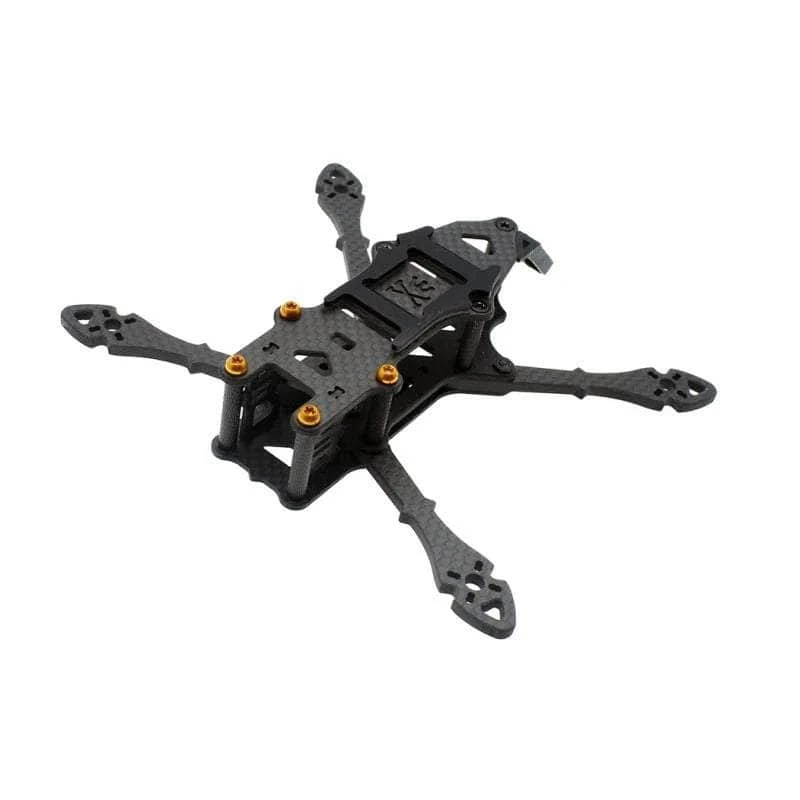

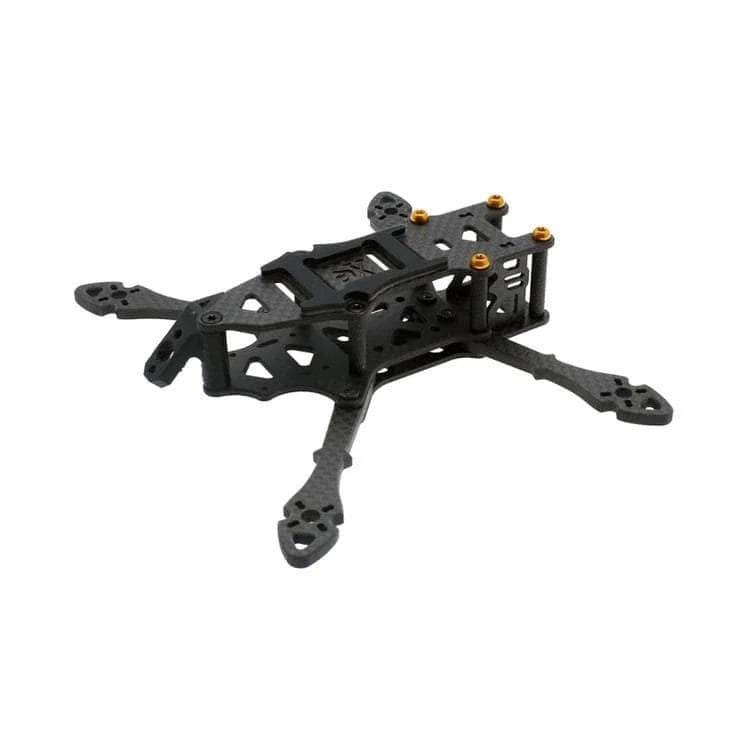

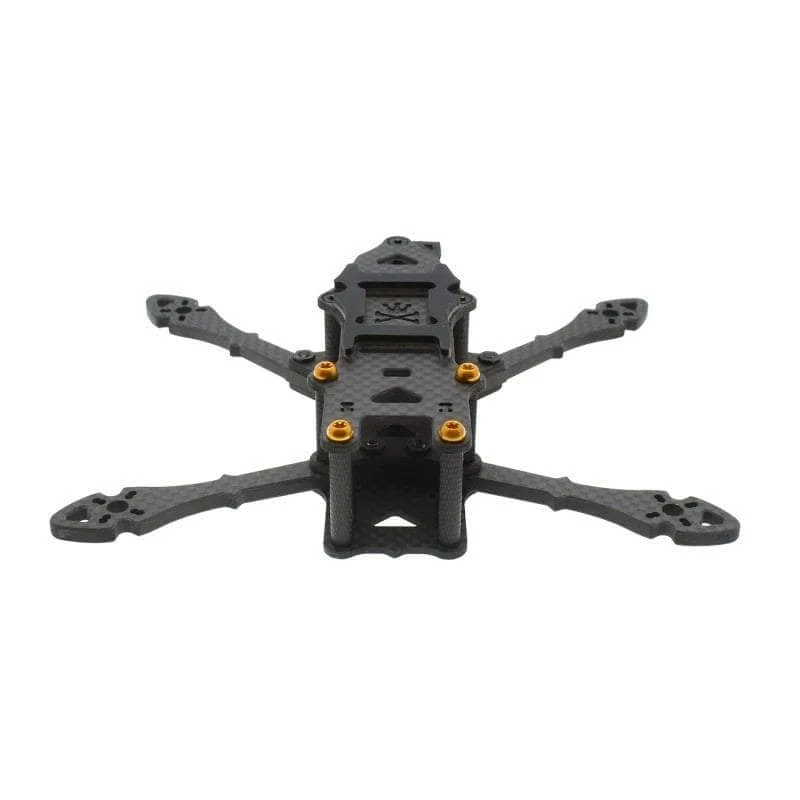

PIRAT Lil Matey 3.5″ Micro Frame Kit

Ahoy there LiL’Matey! Sometimes space is too tight. Sometimes you don’t want to bring the big 5″ boys. Pack few teeny lipos in a tiny bag and go! Save weight, gain power or find a happy medium with mounting options for both 9x9mm and 12x12mm mounting pattern motors. We craft from strong as f#% materials! The frame of course is made from Chamfered Full 3K T300 carbon fiber, uses custom made 12.9 steel torx screws and, 7075 aluminum spacers. The Lil’ Matey focuses on excellent CG balance by letting you choose between “classic bus” or “toilet tank” battery mounting. It also features 20x20mm mounting holes in the rear for mounting of a Caddx Vista air unit or an analog video system. Pick up yours today!

Be sure to check out all our

2-3″ frames

, and all our

PIRAT Products.

Features

• A micro bando ripper!
• Fits up to 3.5″ propellers
• Frame Weight: 58g
• 4mm Arms and 2mm Bottom/top Plate thickness
• Works with 19mm or 20mm FPV video camera
• Allows 27mm Maximum Stack Height
• 7075 T6 Aluminum Custom Standoff
• Full T10 Torx 12.9 Steel Screw Set
• Chamfered Full 3K T300 Carbon
• 20×20 Mounting Pattern in the front and rear (a perfect fit for the Caddx Vista)
• Compatible with analog VTX and Vista only

Specification

• Stack Mounting: 20×20
• Arm Thickness: 4mm
• Bottom/top Plate thickness: 2mm
• Frame Weight: 58g

3D PRINT DESIGNS AND BUILD INFO:

• https://www.thingiverse.com/thing:5236919

• https://www.piratframes.com/wp-content/uploads/2022/02/Matey-notice.pdf

Includes

• 1x PIRAT Lil Matey 3.5″ Frame Kit
• 4 x 4mm Arm 3.5″
• 1 x 2mm Bottom plate
• 1 x 2mm Top plate
• 1 x 2mm Mid plate
• 2 x Camera plate
• 1 x 3D Printed VTX Antenna Mount
• 4 x 10mm M3 Torx T10 12.9 steel gold colored mushroom head screws
• 4 x Black Hex Press nuts
• 4 x 12mm M3 Torx T10 12.9 steel countersunk screws
• 7 x 10mm M3 Torx T10 12.9 steel countersunk screws
• 3 x 8mm M3 Torx T10 12.9 steel countersunk screws
• 20 x 6mm M2 hex steel screws
• 2 x 26mm Custom standoffs in 7075 aluminum
• 5 x 20mm Custom standoffs in 7075 aluminum
• 2 x 15mm / 180mm lipo strap
• 1 x Silicone lipo pad
