RDQ Source One V4 Long Range 7″ Frame Kit – 6mm DeadCat Arms

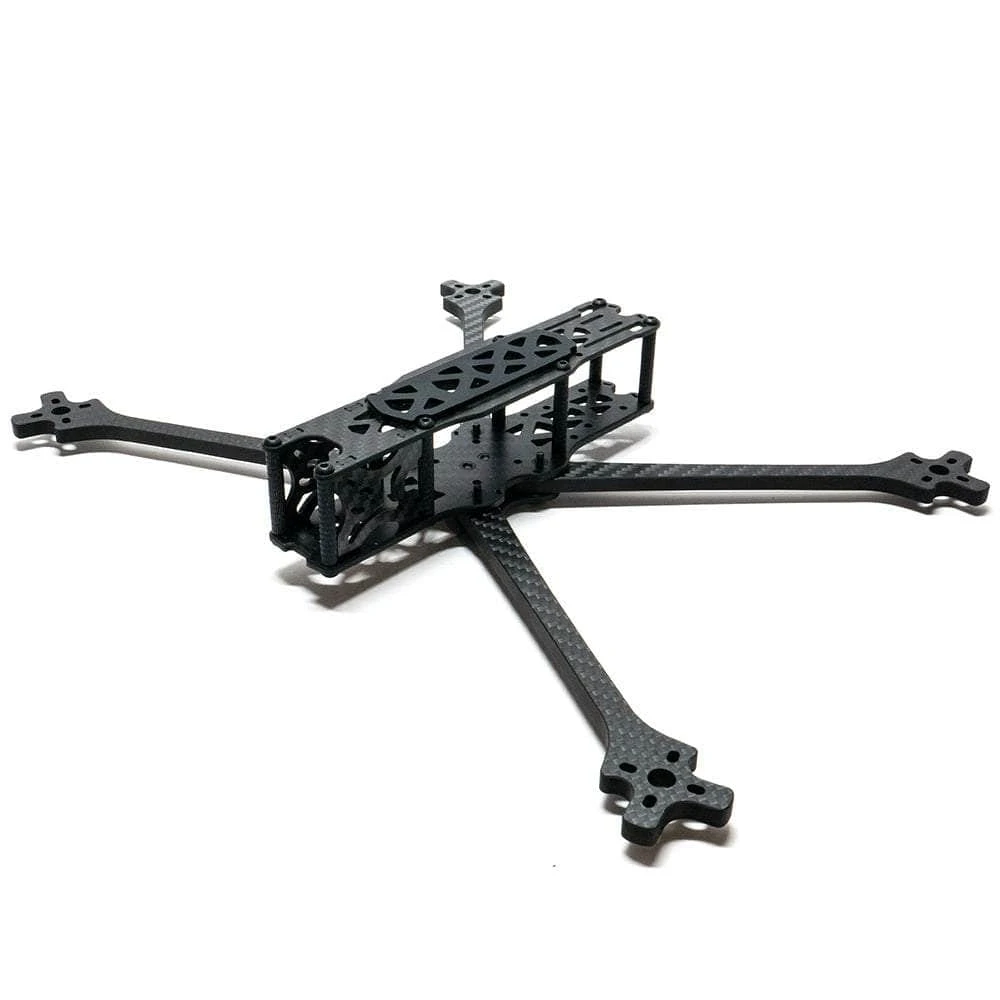

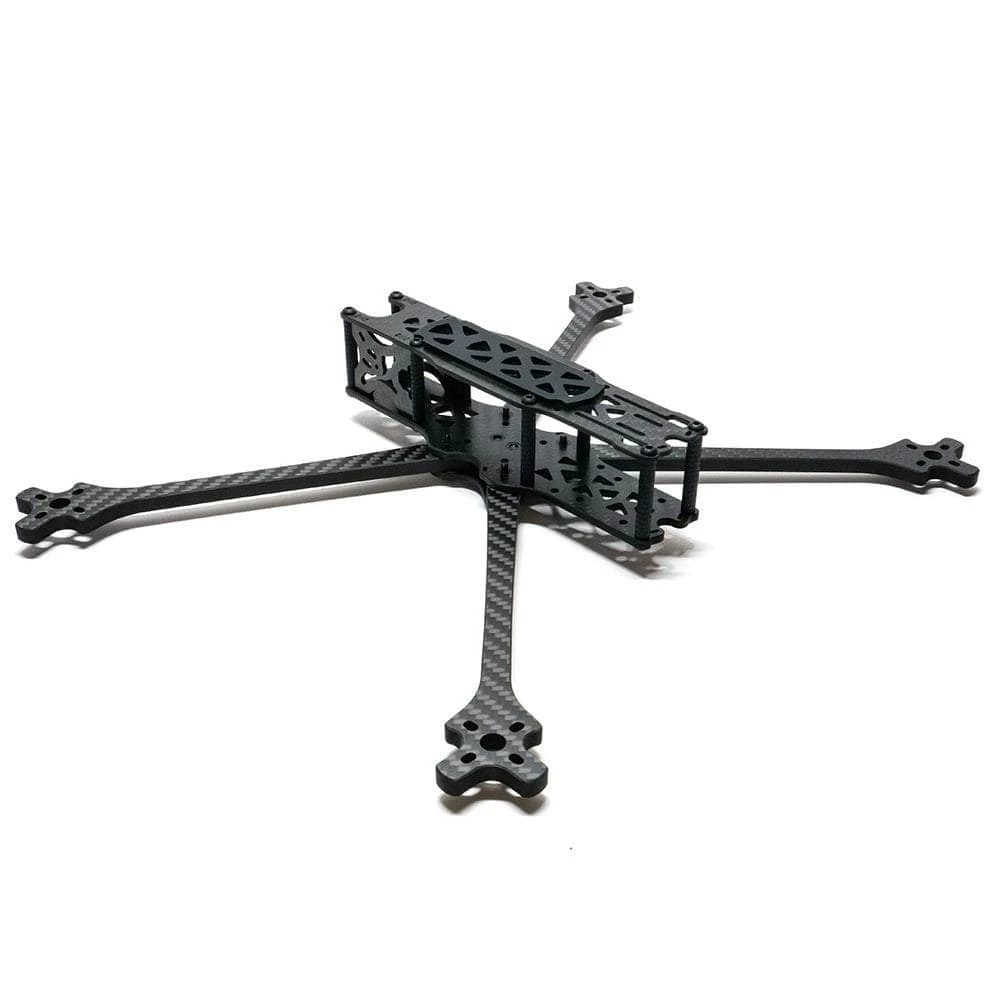

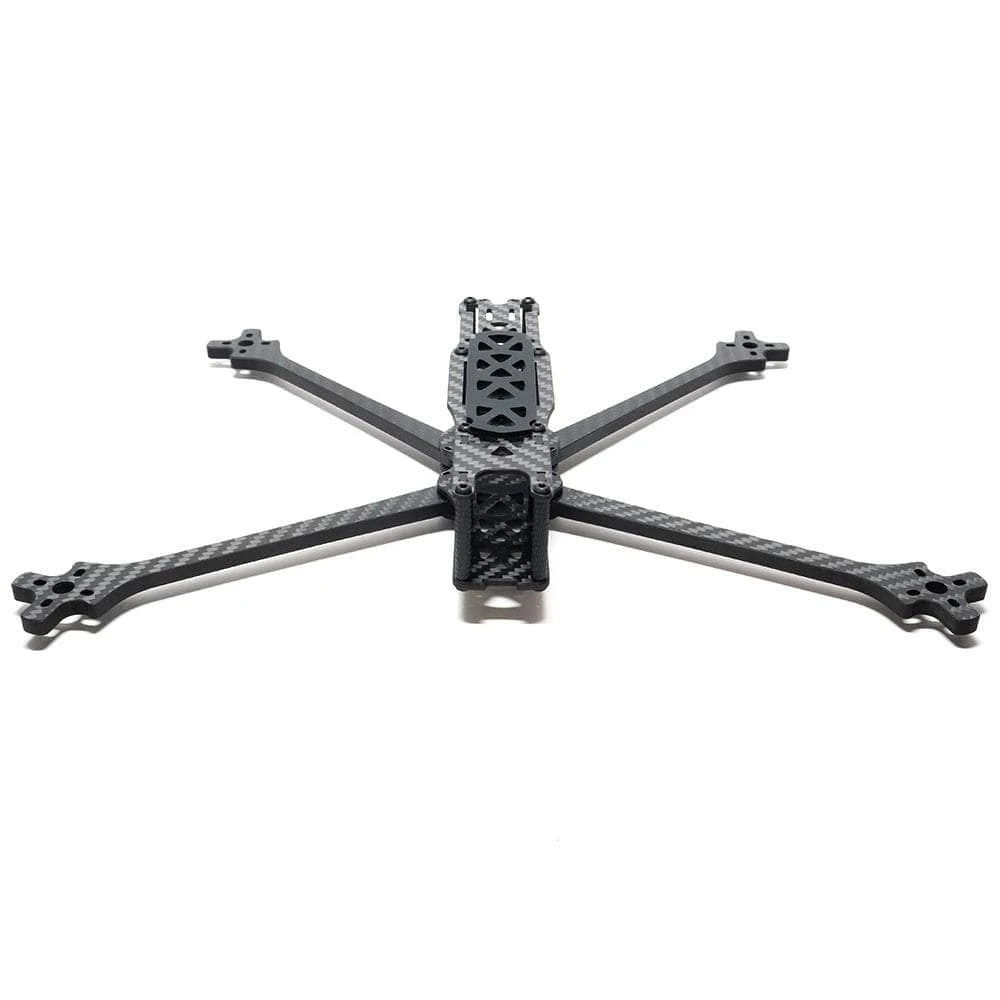

The brand new V4 is here and ready for all your DJI needs. This new version will fit a full sized air unit!  The SOURCE ONE 7″ is a “dead cat” stance frame, popular for long range, cruising and  freestyle without props in view. It is built to withstand harsh crashes and abuse. It fits and protects all the classic FPV components and is optimized for light weight. The SOURCE ONE is a perfect everyday workhorse for casual FPV flying and competitive freestyle.

V3 and V4 parts are not cross compatible.

Be sure to check out our

7″ frame selection

, as well as all our

Source One V4 parts & accessories!

About the Project

The SOURCE ONE project is a first of its kind collaborative FPV frame project initiated by Team BlackSheep. The frame is donated to the community to empower creators and makers, and integrate best practices and current trends faster into a continuously manufactured product. In return, it allows the local distribution network to have cheap and direct access to a good frame in order to allow them compete in an increasingly predatory marketplace.

The hope is for this frame to enable broad access to FPV thanks to a low price point, great documentation and wide availability of compatible parts and accessories, without violating other people’s intellectual property.

Get Involved!

• Project discussion:

  https://discordapp.com/invite/ZJGkHwF

• Project files:

  https://github.com/tbs-trappy/source_one

• Interactive Manual

   (work in progress)

• 3D Printed files on Thingiverse:

  https://www.thingiverse.com/tag:sourceone

• 3D Printed Parts (STL) also avaialble on github!

Specifications

• Wheelbase: 300mm
• Top Plate: 2mm
• Bottom Plate: 3mm
• Middle Plate: 3mm
• Standoff Height: 30mm
• Arm Thickness: 6mm
• Stack Mounting: 30.5m30.5mm, 20x20mm, DJI Air Unit
• Weight: 154g

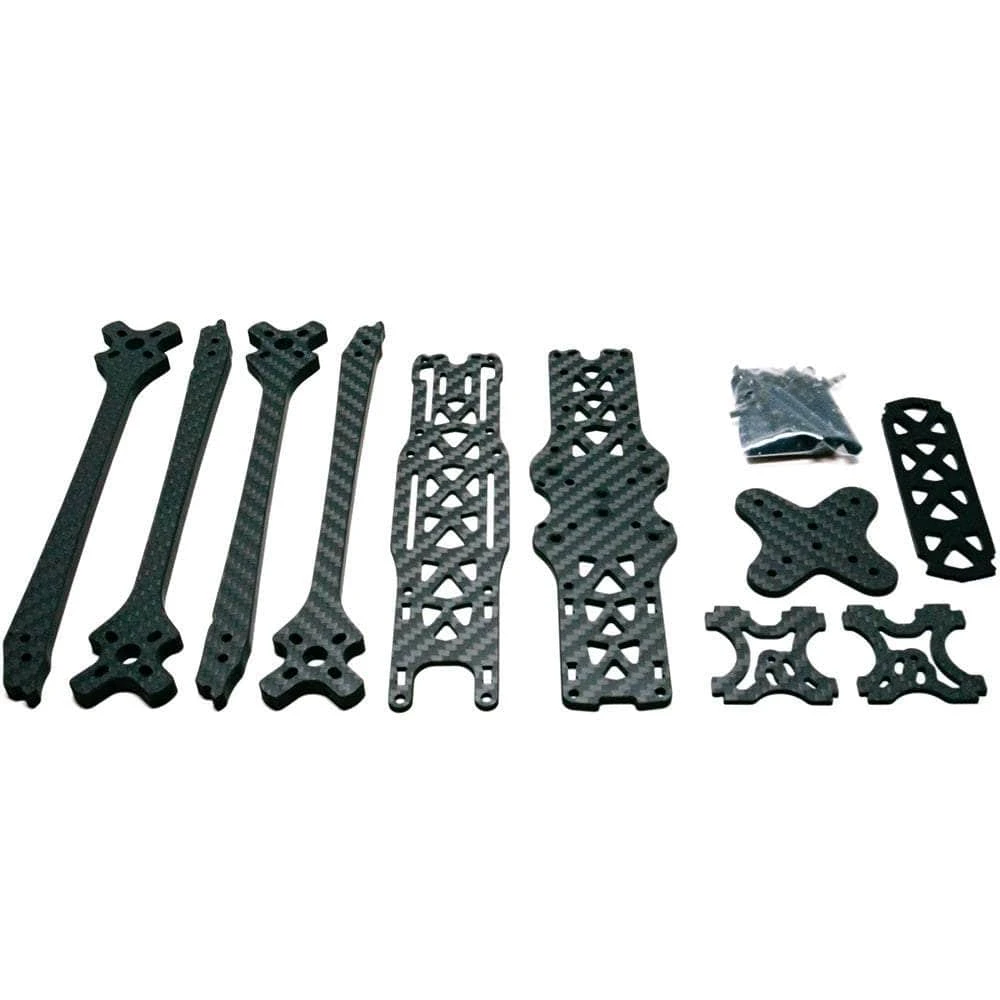

Includes

• 1x RDQ Source One V4 7″ Long Range Frame – 6mm DeadCat Arms
