RUSHFPV Tank Mini 20×20 25-800mW 5.8GHz VTX – MMCX

RUSHFPV brings their signature quality and style to the 20×20 form factor. Nothing but size was reduced from the

30×30 Tank Ultimate

! This little beast still cranks out 800mW of clean, stable video signal for crusing far or handling heavy obstructions.

Check out out

ever expanding VTX section

(or

just the 20x20s

) as well as our

RUSHFPV gear

!

Features

• Compact Robust Design
• Variable Output from 25 to 800mW
• Pit Mode
• Officially Licensed Smart Audio from TBS

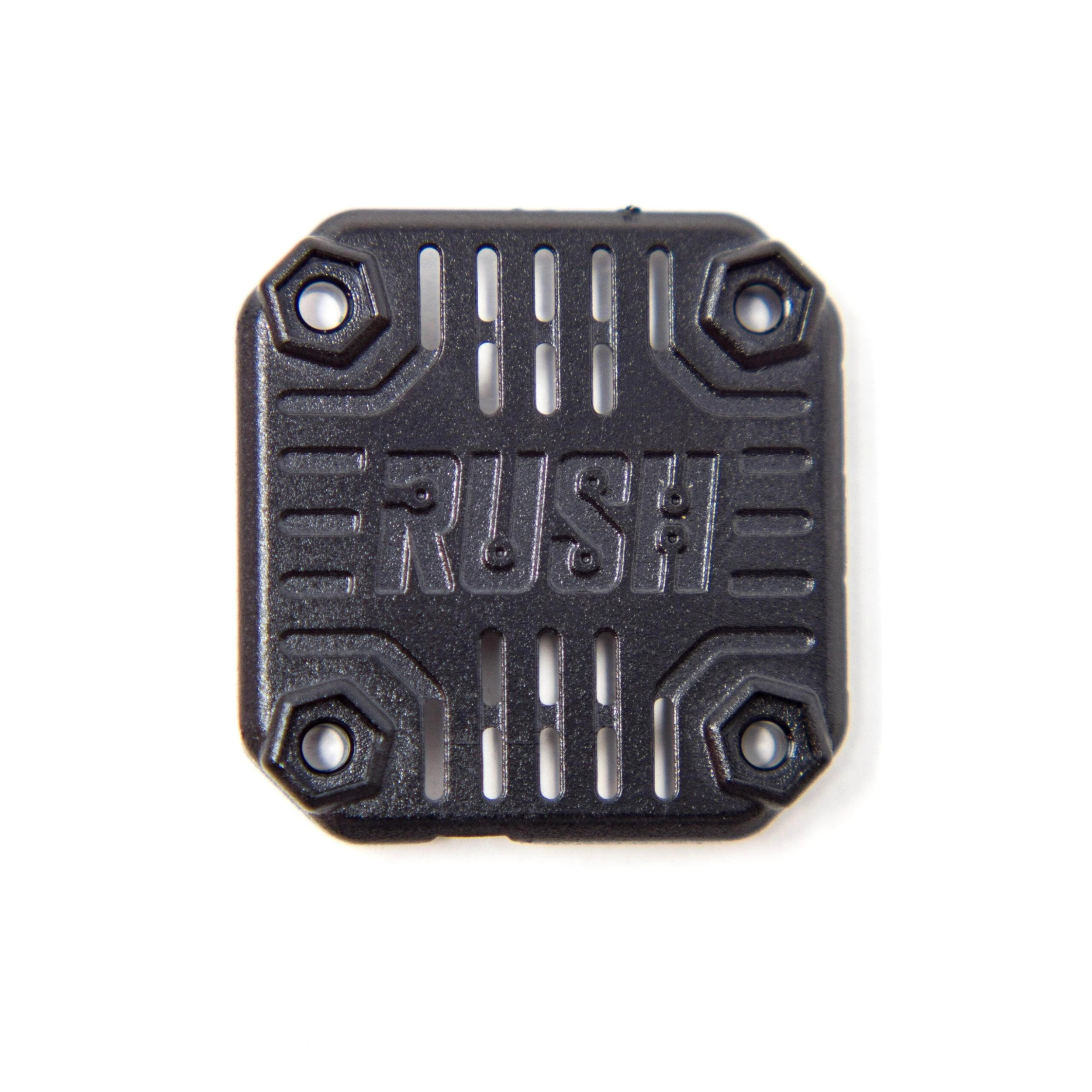

• Optional Protective Shield Included

Specifications

• Input Voltage: 7-36V(2-8S)
• Transmittion Power: PIT/25/200/500/800mW
• On Board DC Output: 5V 1A Max
• 12V Input Current:
• 40mA@PITMODE 95mA@25mW,
• 185mA@200mW 250mA@500mW,
• 380mA@800mW
• Channels: 48 RaceBand/LowRace

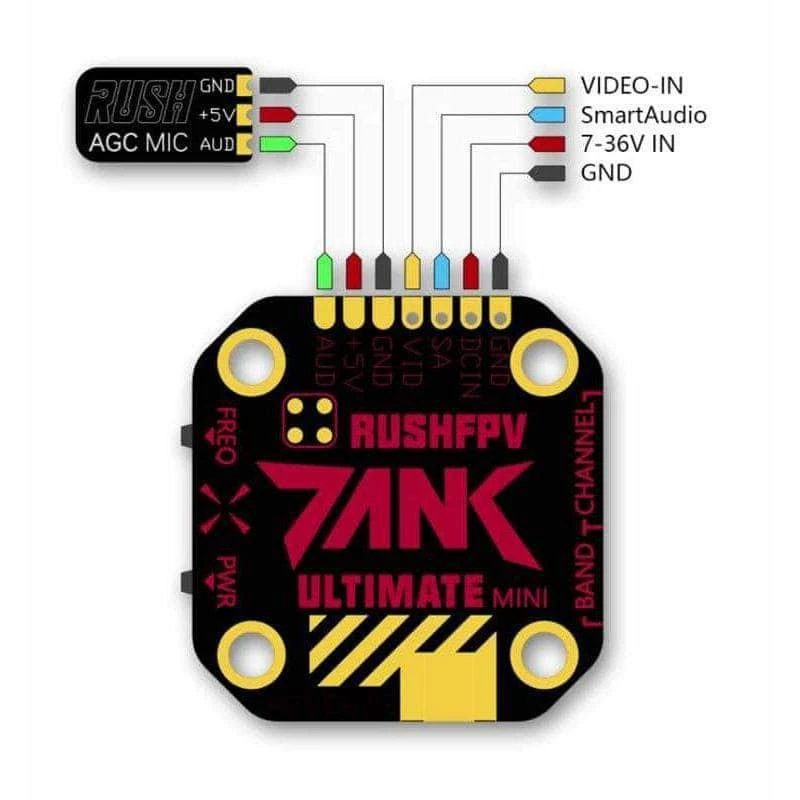

• Feature: Available with External Mic
• Mounting Dimensions: 20x20mm (VTX Holes M3, Shield Holes M2)
• Dimension: 28x28x3.3mm
• Weight: 4.46g (w/o Cover), 5.40g (w/ Cover)

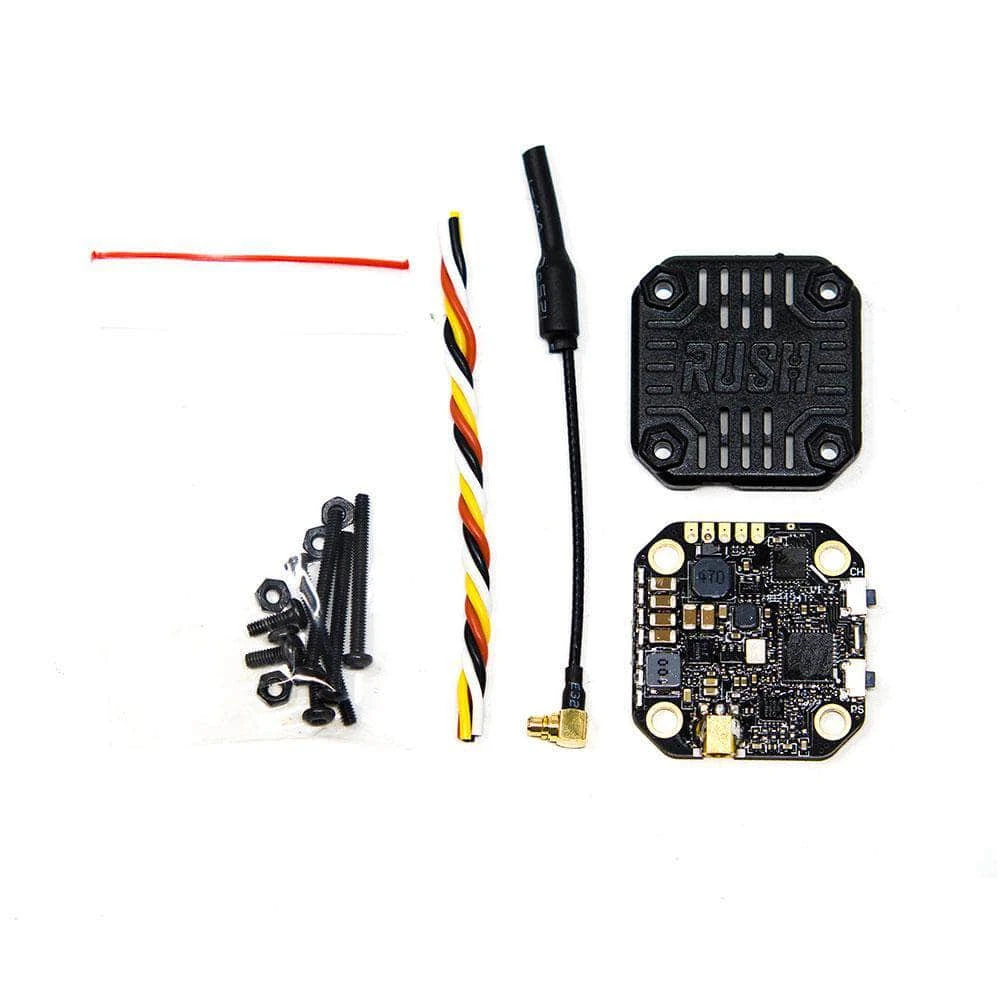

Includes

• 1x Rush Tank Mini 25-800mW 20×20 VTX – MMCX
• 1x Protective Cover
• 1x MMCX Dipole Antenna
• 1x Wire Set
• 1x Hardware Set

Manufacturer Warranty Policy: Note that RushFPV has stated to us that they will not warranty items more than 30 days after purchase. However, RDQ will still warranty items which are dead on arrival or do not last a reasonable amount of time under reasonable flight conditions
