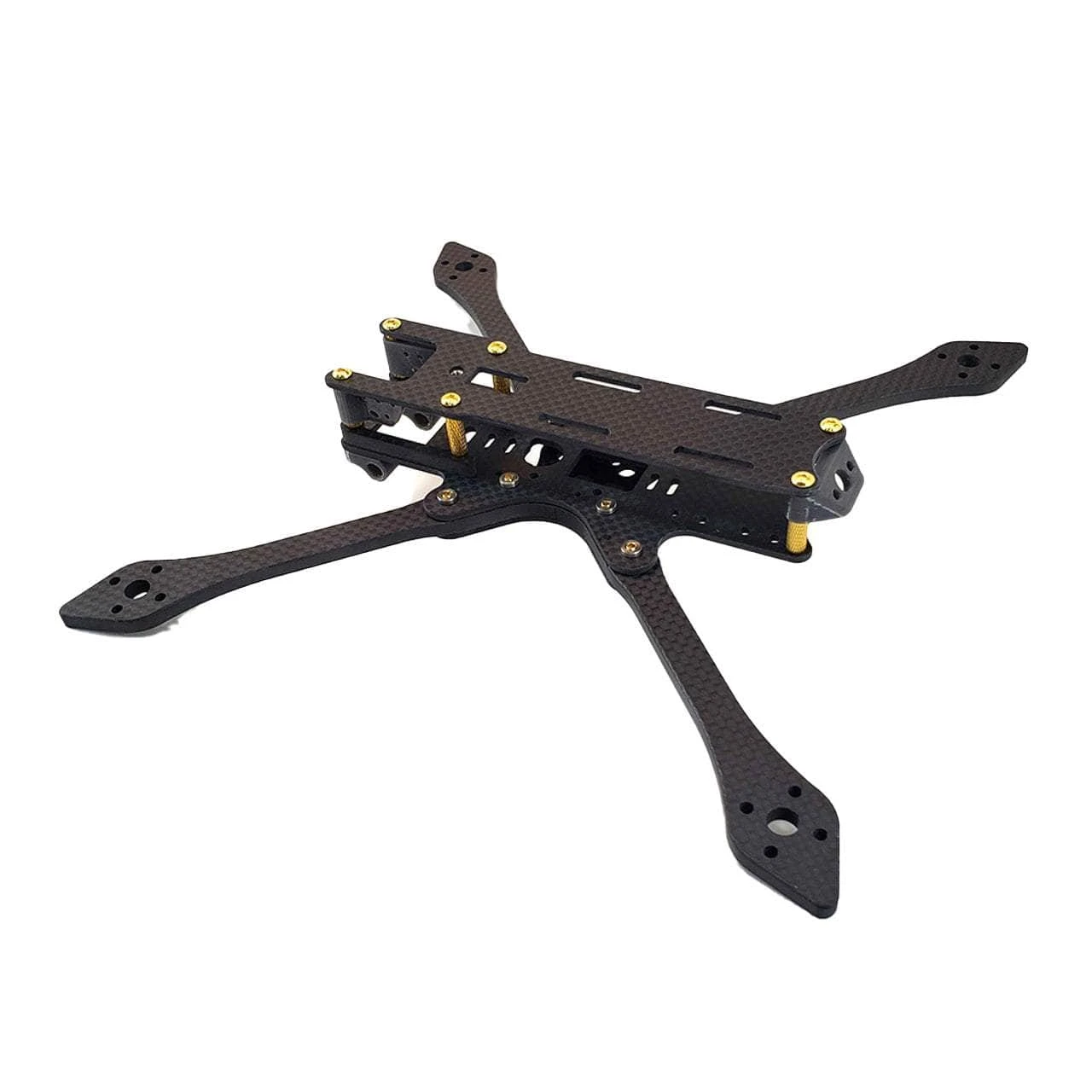

RVS Creamer 2 5″ Frame Kit

The Creamer is back and better then ever!  – Introducing the Creamer 2! – Designed to shed excess weight and bulk but yet be robust enough for the abuse we all put our freestyle frames through. The dual stack mounts allow a versatile and clean build, as do the buzzer and RX pockets in the baseplate.

Be sure to check out all our

5″ frames

, and all our

RotorVillage RVS Products

Features

• DJI cam to Micro cam ready (19mm width)
• Chamfered edges for days!
• Dual Stack setup
  • 30.5mm (single)
  • 20x20mm (front & rear)
  • AIO Mounting (single)
• Rigid true-X air-frame
• Extra carbon rails at the front allow it shake off the gnarliest of crashes.
• Light weight
• Super Low Profile / Low CG
• Dual top mount battery straps (cause I hate loosing lipos!)
• Removable easy swap arms – remove 1 bolt, loosen 1 bolt
• Bling bling gold-coloured hardware
• XT60 passthrough in the top plate
• DJI O3 compatible (only with M1.6x8mm cap head screws for vista/O3)

3D PARTS ON THINGIVERSE

• https://www.thingiverse.com/rotorvillage/designs

Specification

• Wheelbase: 5-5.5″: 252mm
• Carbon Fiber Thickness(Base): 2.5mm
• Carbon Fiber Thickness(Mid): 2.5mm
• Carbon Fiber Thickness(Top-plate): 2.5mm
• Carbon Fiber Thickness(Arms): 6mm
• Camera: 19-20mm Camera widths
• Camera Skirt: 5mm
• Weight: 114.5g (this includes the TPU parts)
• Stack mount: 20×20 or 30.5×30.5
• Motor mount pattern: 16x16mm ONLY

Includes

• RVS Creamer 2 5″ Frame Kit
• 16x Motor Mount Screws

• 2x LiPo straps

• 1x TPU Mount kit (FPV cam mounts x2, Immortal-T Mount, SMA antenna mount)
• 1x Hardware Kit
