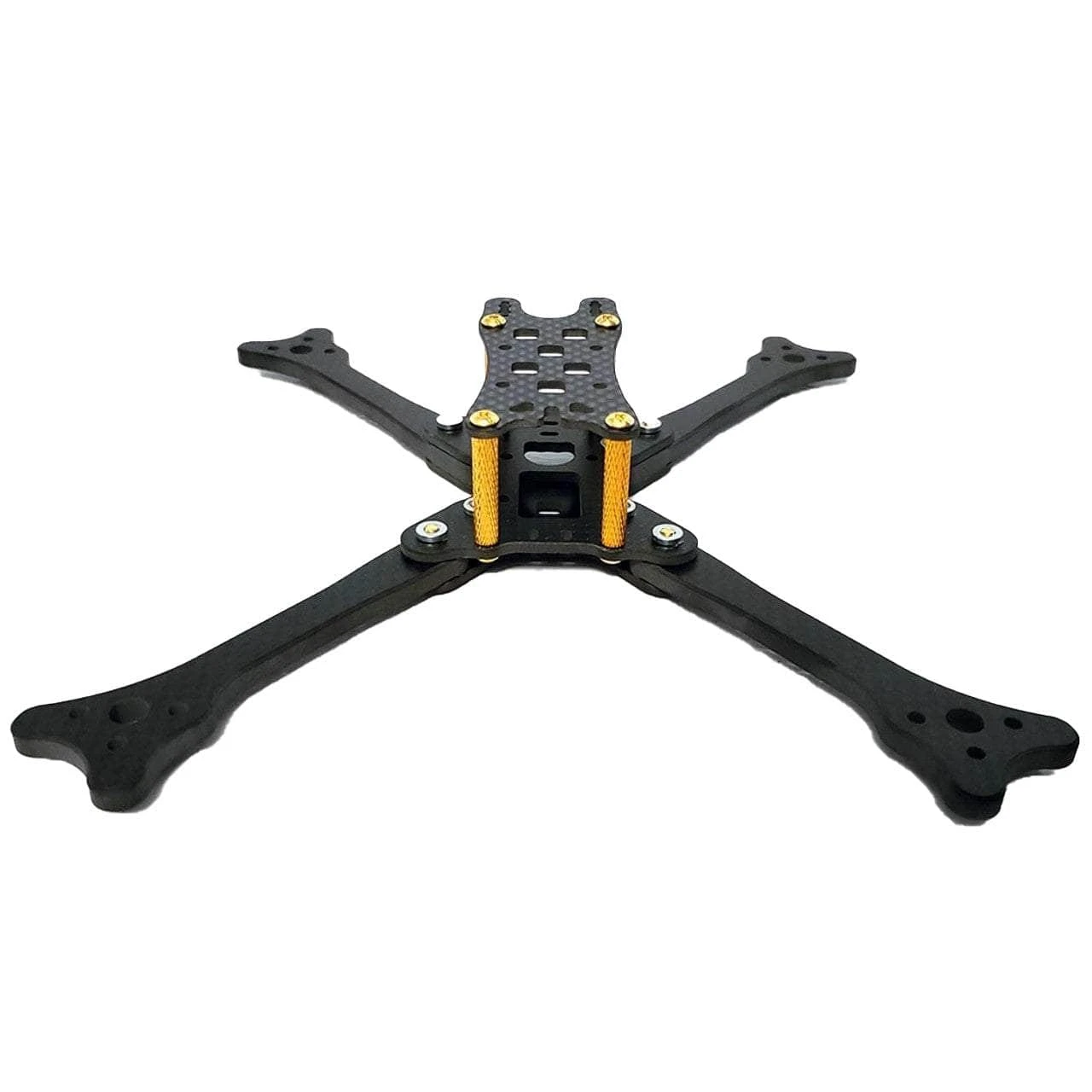

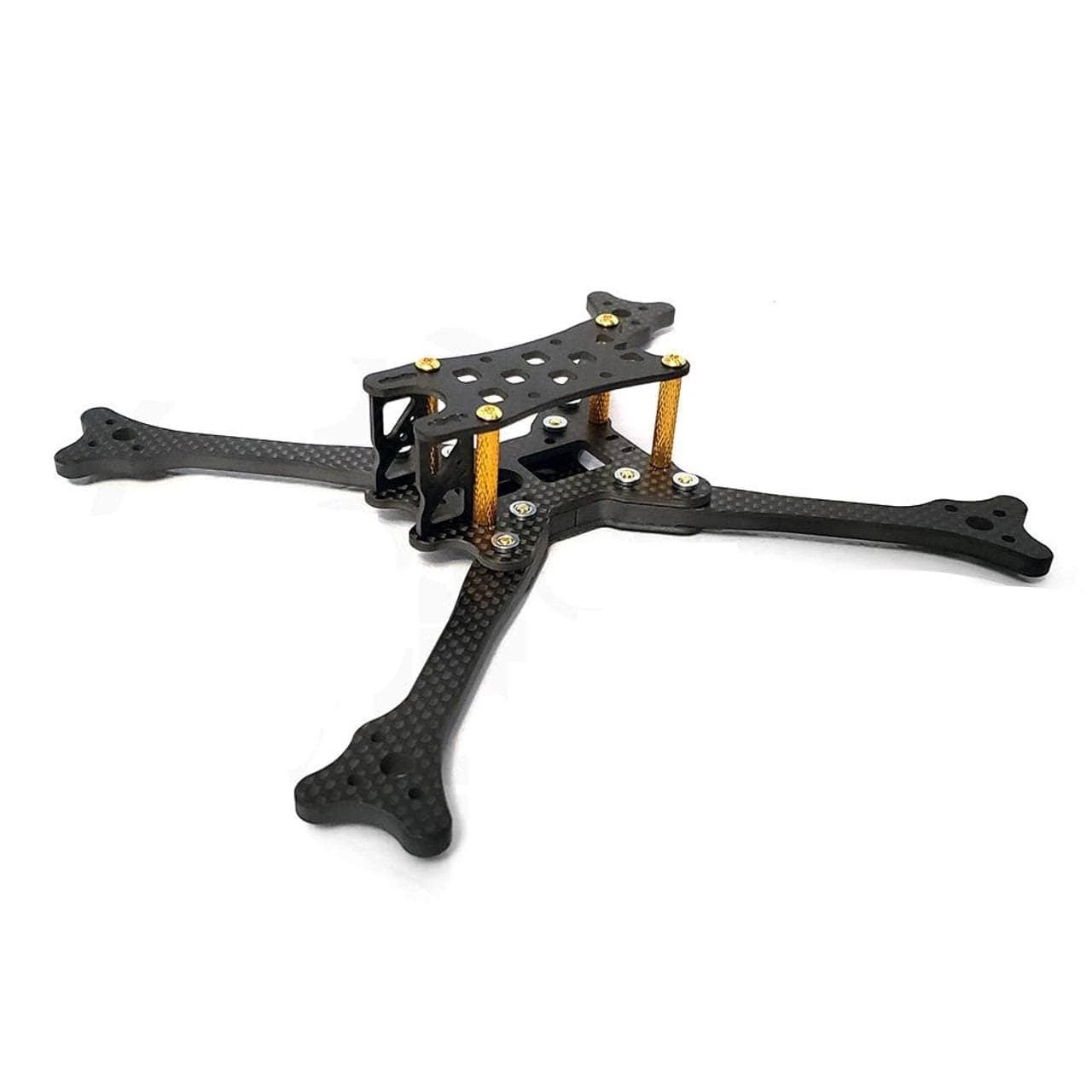

RVS Sucker Punch V2 Racing 5″ Frame Kit

The Sucker Punch is an incredibly tough and INSANELY RIGID race frame! Featuring 5mm ROBUST arms, smooth chamfered edges and a clean compact footprint. The super rigid arms have 2 main purposes, firstly, they can take a HUGE hit and keep right on flying like it was nothing. Secondly, the rigidity makes a noticeable improvement in handling on the race track.

Be sure to check out all our

5″ frames

, and all our

RotorVillage RVS Products

Features

• 5mm thick arms
• Chamfered edges
• Stretch-X air-frame
• Light weight
• 20×20 Stack mounts on the top plate for a VTX etc
• Micro FPV Camera ready
• 3K Carbon Fiber
• 2 bolt removable arms
• Minimal hardware and parts
• Bling bling gold-coloured hardware
• Zip-tie points for accessories
• Buzzer recess in the midplate
• RX (or capacitor) recess in the midplate
• 12.9 Grade Bolts

Specification

• Wheelbase: 209mm stretch
• Carbon Fiber Thickness(Base): 2.0mm
• Carbon Fiber Thickness(Mid): 2.5mm
• Carbon Fiber Thickness(Top-plate): 2.0mm
• Carbon Fiber Thickness(Arms): 5mm
• Weight: 78.8g with all metal hardware

• Prop size: 5″

• Stack height: 25mm

• Stack mount: 20×20 or 30×30

• Motor mount pattern: 16x16mm

 3D PARTS ON THINGIVERSE

• Download them here –

  www.thingiverse.com/rotorvillage/designs

Includes

• 1x RVS Sucker Punch V2 5″ Racing Frame Kit
• 1x Hardware Kit
