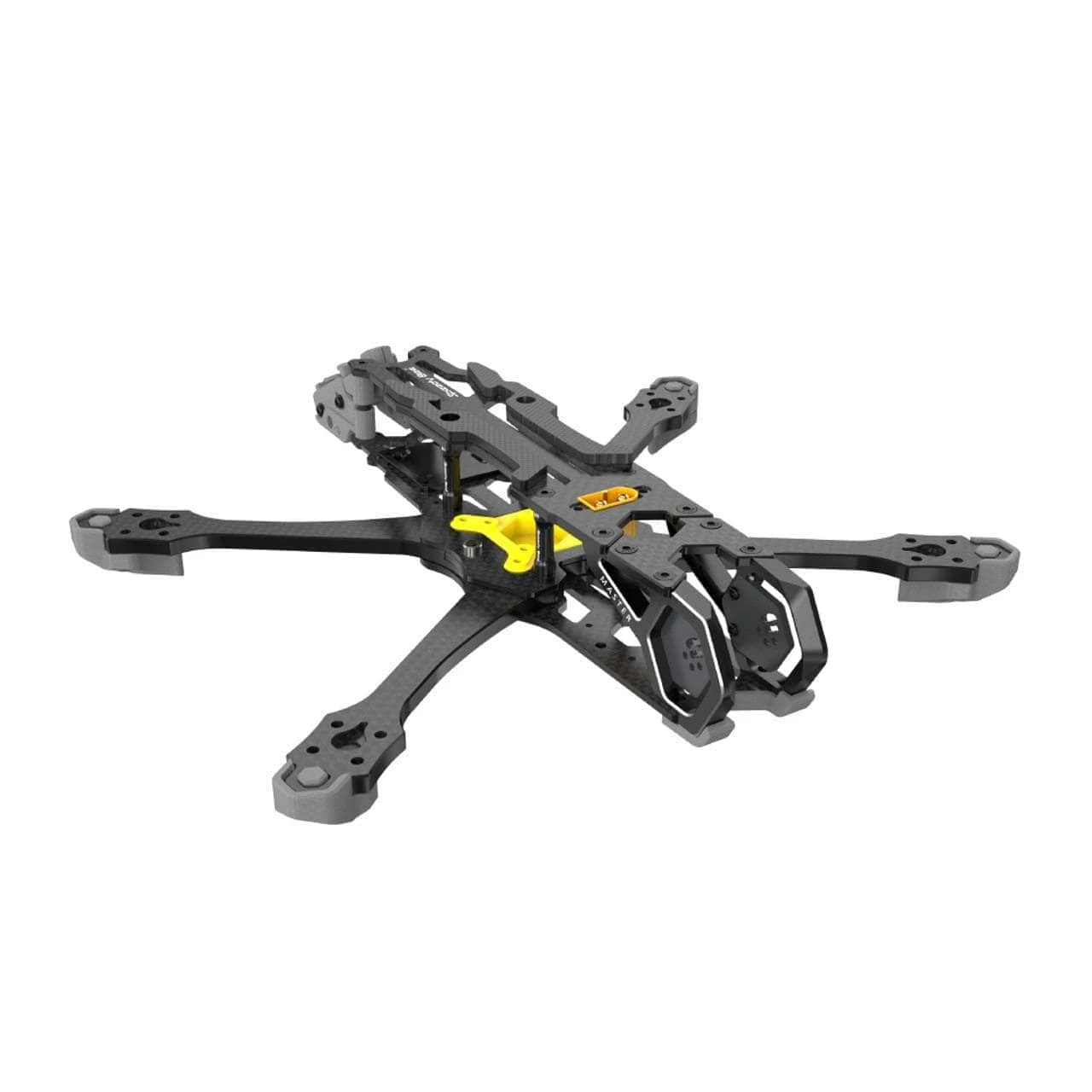

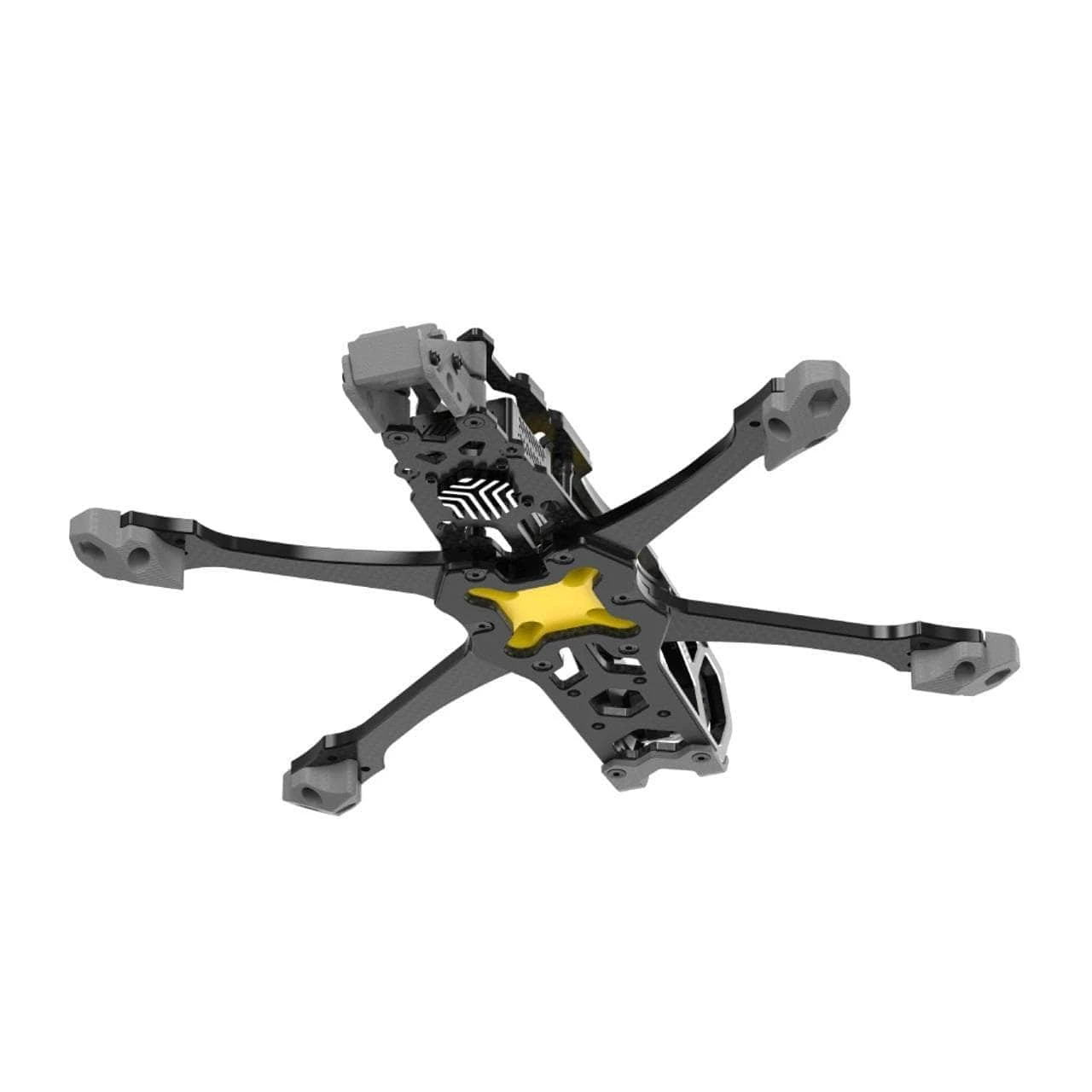

SpeedyBee Master 5 HD 5″ Freestyle Frame Kit

Introducing SpeedyBee’s Master 5 series, designed specifically for freestyle.

The innovative anti-shock fixed stack structure mitigates the effect of the motor for Gyro of FC, further stabilizing the running environment. And the arm’s quick-release structure brings convenience for installation, with the number of screws averaging 1.5 per arm. Honeycomb-shaped aluminum alloy CNC drone head ensures a better look and strength. Designed with H-FOV 130 section, it provides a larger field of view. Furthermore, the detachable camera fixing plate is open for modification, supporting more mounting holes for the camera and helping get rid of vignetting. Honeycomb-shaped aluminum alloy cooling module (optional) is also designed for mounting under the VTX, improving the operation stability of DJI FPV and high-power analog VTX.

Available in 2 versions.  The regular Master 5 frame has a 222mm wheelbase and is compatible with analog, DJI O3 Air Unit, and the Vista/Link Air Unit.  The Master 5 HD Frame has a wider 225mm wheelbase and is compatible with analog, DJI O3 Air Unit, Vista/Link Air Unit, and the original DJI Air Unit.

This is the regular Master 5 frame which is suitable for both analog and digital VTXs but props may be visible in certain configurations with this version

Check out all our

DJI O3 Compatible Frames, Electronics & Accessories

, our

5″ Frames

, and all our

SpeedyBee products

!



Features

• Compact Model Design with Low Center of Gravity

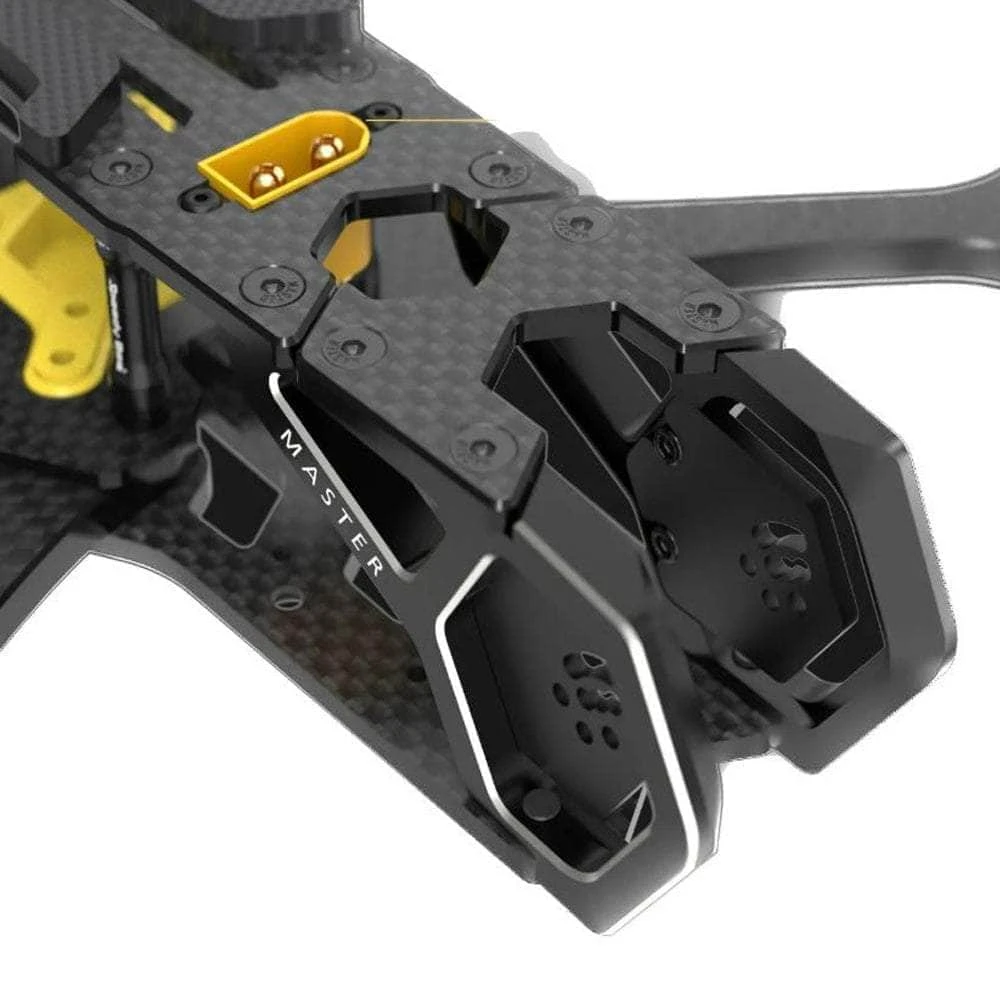

• Honeycomb-shaped CNC Aluminum alloy Camera plates
• FOV130°
• Innovative Independent Anti-Shock Stack Fixed Structure for stabilization
• High-power VTX cooling Module
• Front XT60 Plug
• Arm Quick-Release

Specifications

• Model: Speedy Bee Master 5 Frame
• Weight: 130g
• Top & Bottom Plate thickness: 2mm
• Arm thickness: 5mm
• Camera width: supports 19-20mm width
• 3D printed TPU Parts: Yellow
• Suitable prop size: 5″, 5.1″
• FC mounting holes: 30.5 x 30.5mm and 20x20mm (M3)
• VTX mounting holes: 20x20mm (M2)

Manual

SpeedyBee Master 5 HD Installation Guidelines
