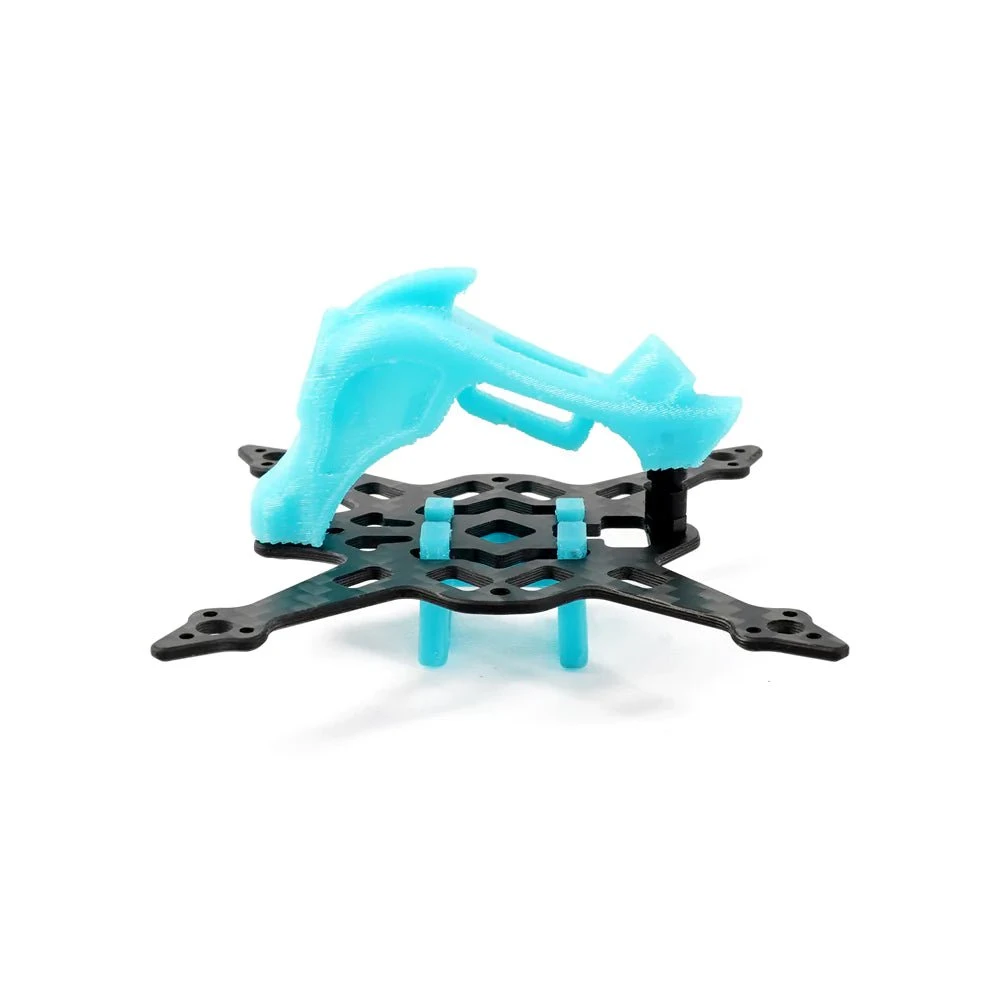

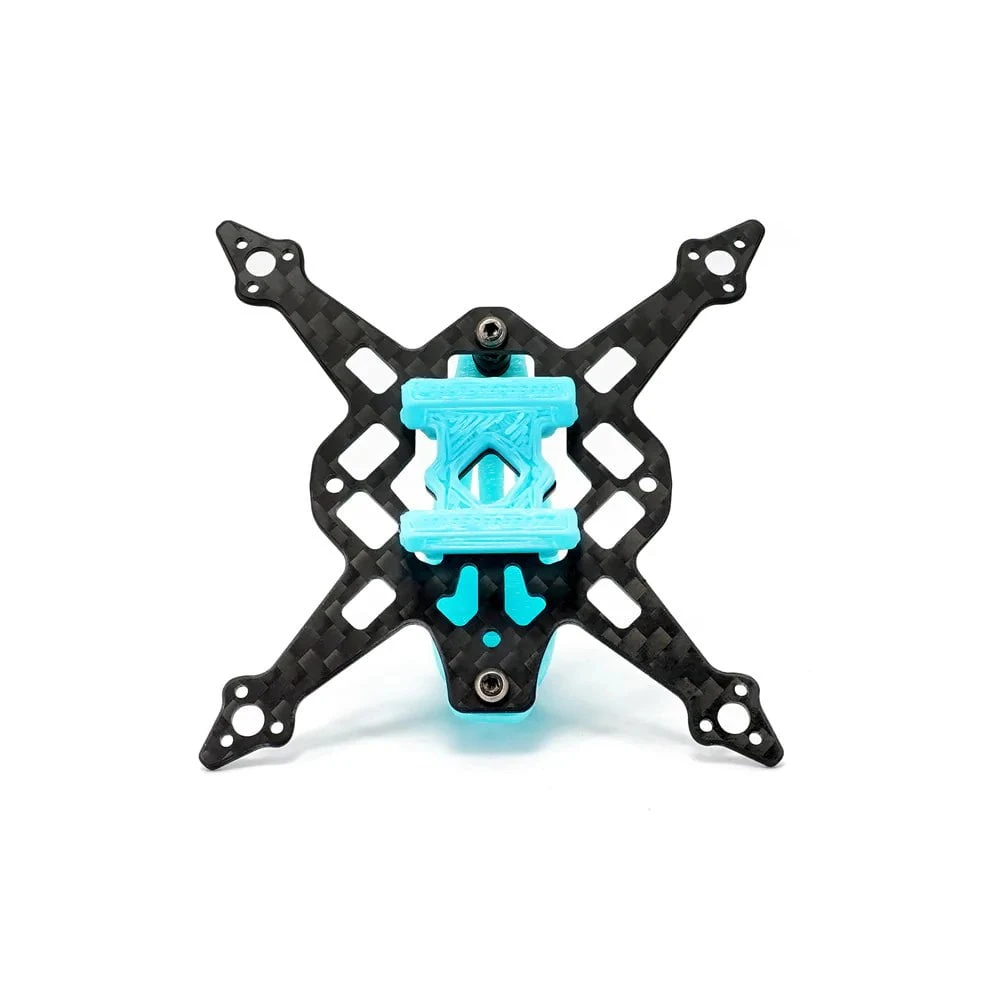

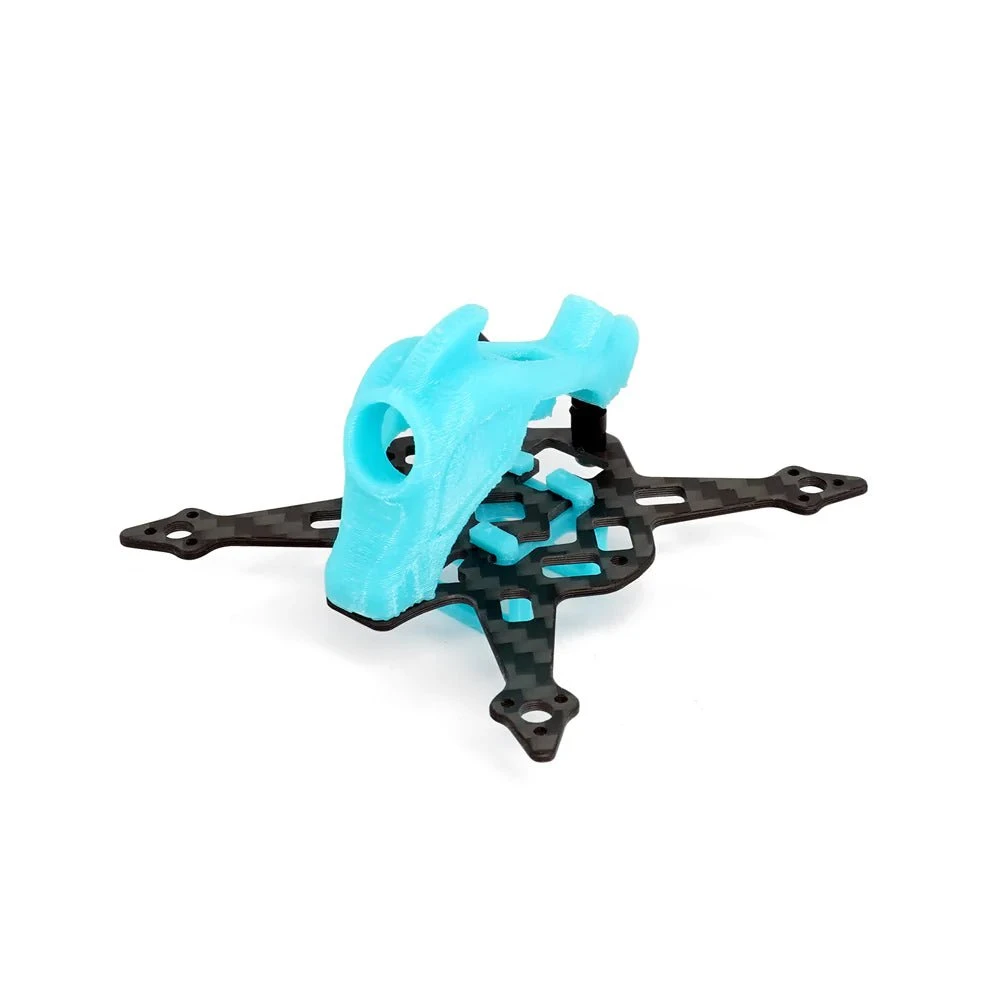

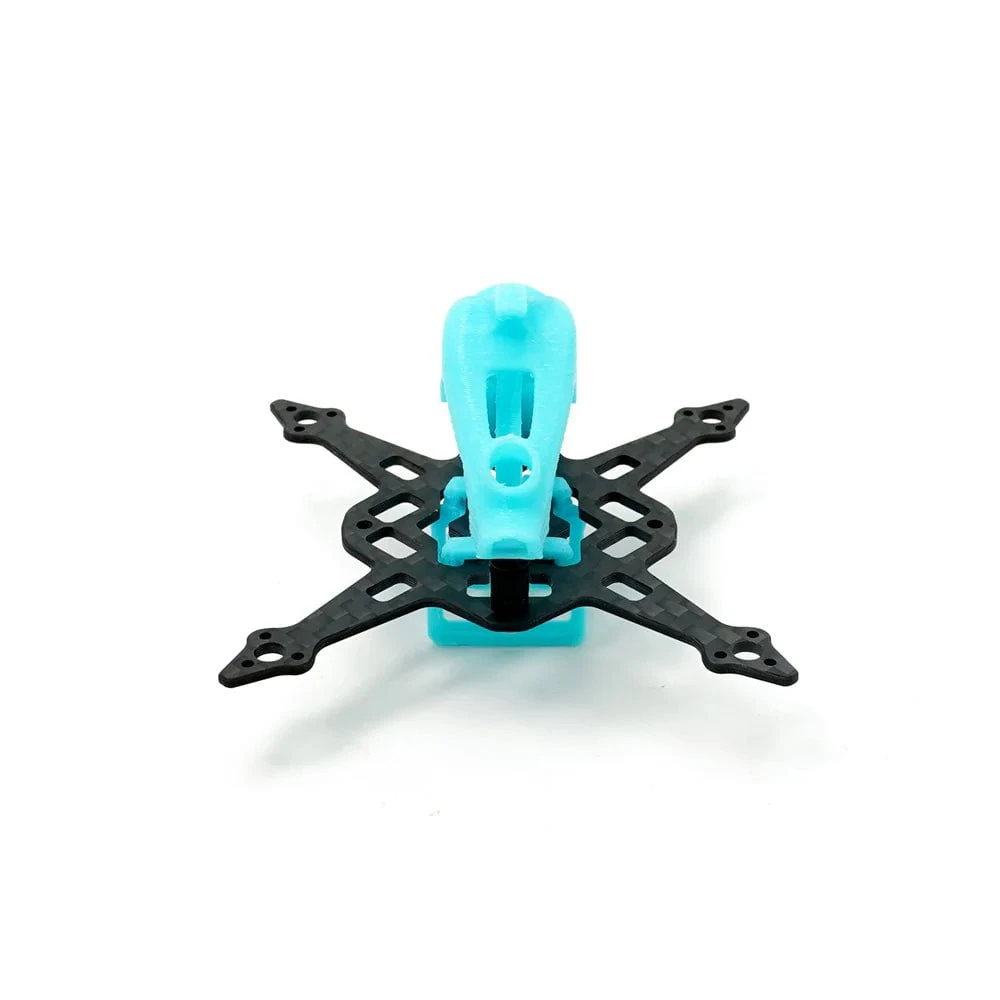

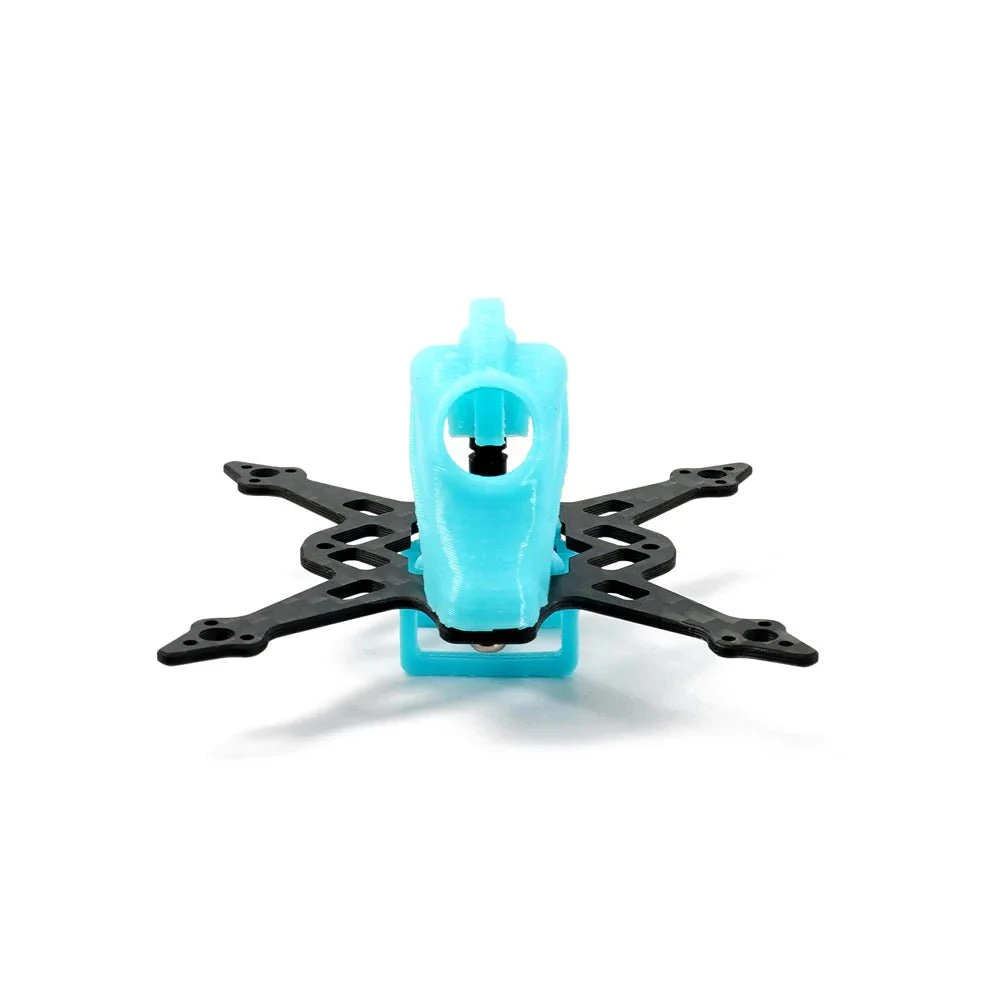

Sub250 Nanofly16 1S 40mm Micro Frame

Sub250’s Nanofly16 1S frame is one of the lightest and most nimble carbon fiber frames! Featuring a true X layout and prints included, the Sub250 Nanofly16 is a go-to outdoor whoop frame!

Check out the rest of our

pre-built quads

 and the rest of our

Sub250

selection!

Specifications

• Brand Name: Sub250

• Model: NF16

• Wheelbase size: 77mm

• Bottom plate thickness: 1.5mm

• Camera plate thickness: 1.0mm

• FC mounting holes: 25.5mm x 25.5mm

• Motor mounting holes: 3-M1.4-EQS-Ø6.6

• Propeller size: 40mm

• Size:65mm x 65mm x 41mm

• Weight: 8.3g (including 3D print)

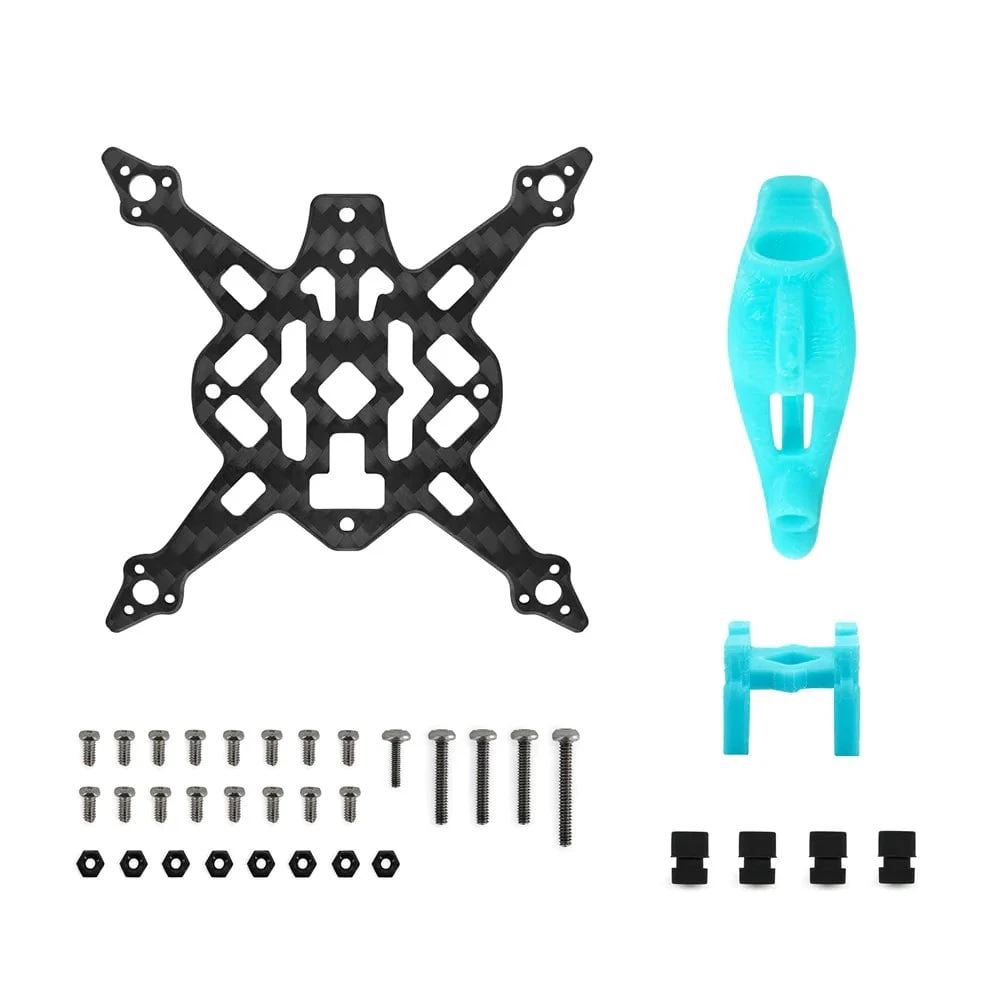

Includes

• 1 x 1.5mm bottom plate

• 1 x 3D printed top cover

• 1 x 3D printed battery holder

• 16 x M1.4 x 3 round head Phillips screws

• 1 x M2 x 6mm round head screw

• 3 x M2 x 12 round head screws

• 1 x M2 x 14 round head screw

• 4 x M2 x 6.6 shock absorbers

• 8 x M2 x 2 nylon nuts

• 1 x 1.5mm L-shaped screwdriver

• 1 x Phillips screwdriver
