T-Motor Mini F7 HD 20×20 Flight Controller W/ VTX Switch – BMI270
Original price was: $8.19.$5.73Current price is: $5.73.
- Efficiency meets excellence in customer care.
- Your needs, our top priority.
- Best price, safe shopping guarantee
- Fast reliable delivery options

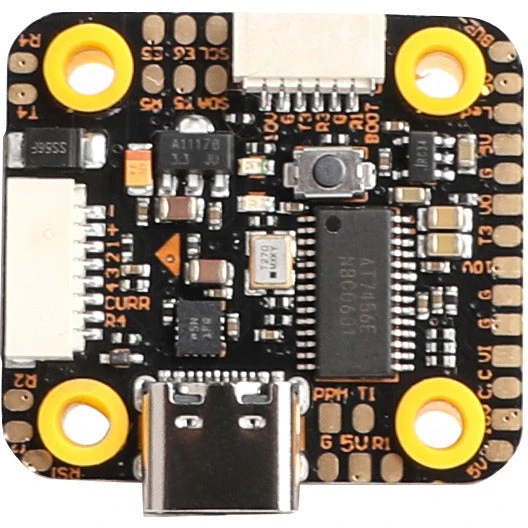

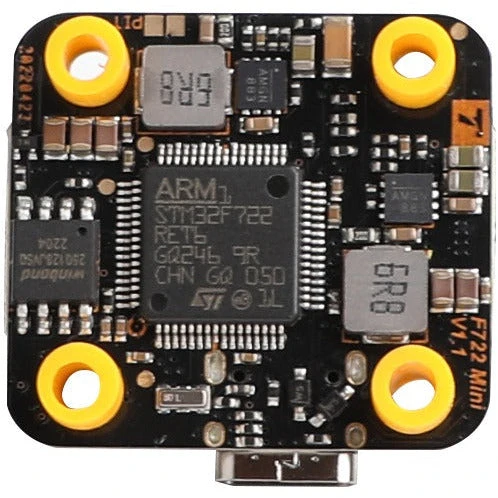

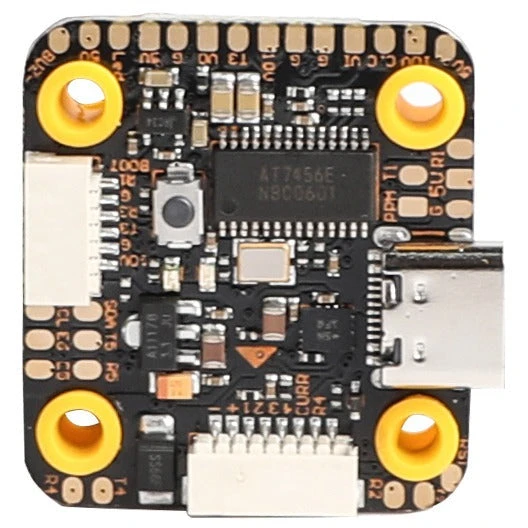

T-Motor’s Mini F7 HD Flight Controller is loaded with lots of power and can be connected to the
DJI Digital HD FPV System
. Compare to standard versions of this FC, the mini FC is lighter and stronger. Featuring F722 high-speed, noise reduction, BMI270 gyroscope, Oneshot125/Oneshot42, Multishot, common PWM signals, PIT switch function, and many other cool features that make this FC unique!
Paid this with the T-Motor Mini F45A 6S ESC for the ultimate power stack!
Check out all our
20×20 FCs
and all our
T-Motor products
!
Specification
- Brand: T-Motor
- Item Name: F722 MINI Flight Controller
- Input Voltage: 3-6s
- BEC: 5v/2A, 10V/2A (For DJI HD VTX)
- Main Control: STM32F722
- Gyroscope: BMI270
- RAM: Onboard 16M
- OSD: Support
- Barometer: No
- Mounting pitch: 20x20mm
- Weight: 5.1g
- Firmware: TMOTORF7 (STM32F7X2)
Includes
- 1x T-Motor Mini F7 HD 20×20 Flight Controller w/ VTX Switch
