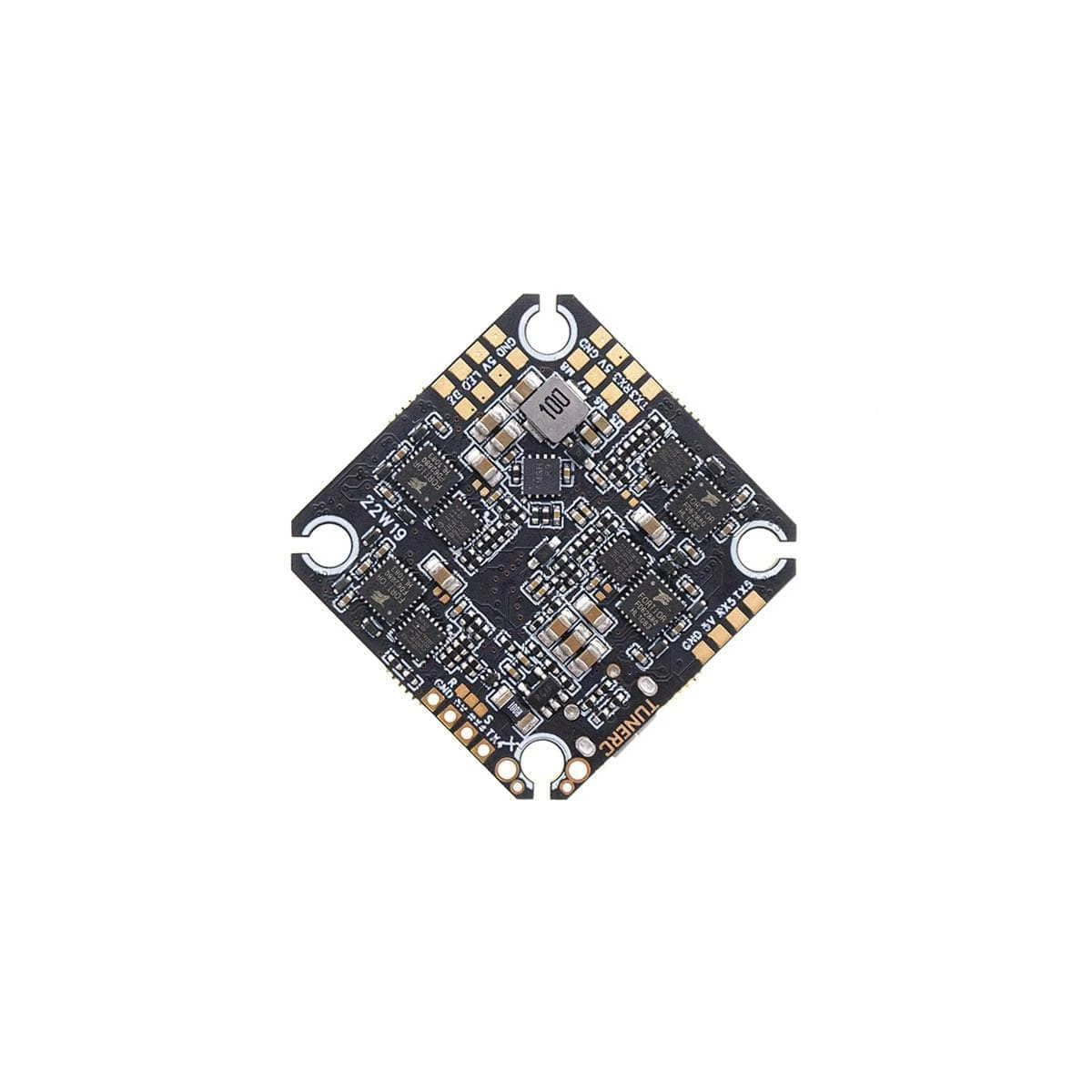

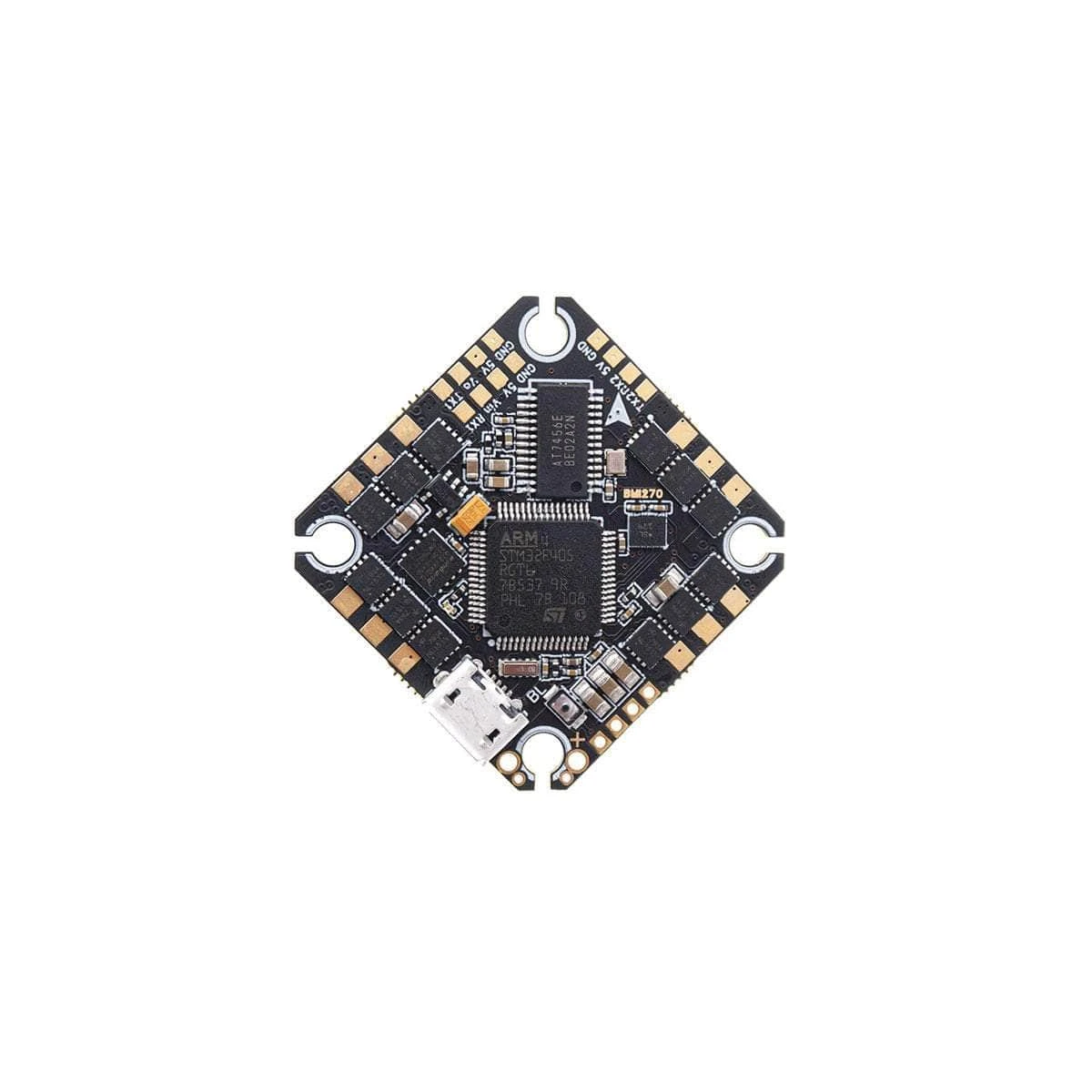

TuneRC Poly F405 2-4S AIO Whoop/Toothpick Flight Controller W/ 20A 8Bit 4in1 ESC

TuneRC Poly F405 2-4S AIO Whoop/Toothpick Flight Controller W/ 20A 8Bit 4in1 ESC - Image 2

TuneRC Poly F405 2-4S AIO Whoop/Toothpick Flight Controller W/ 20A 8Bit 4in1 ESC

Original price was: $8.25.Current price is: $5.78.

SKU: CMFJZ 6853236555889 Categories: Flight Controllers, Micro Tags: Input Voltage_2S, Input Voltage_4S, Manufacturer_TuneRC, Toothpick

Efficiency meets excellence in customer care.
Your needs, our top priority.
Best price, safe shopping guarantee
Fast reliable delivery options

Description
Reviews (0)

Check out this versatile and high performance AIO flight controller for the micro community. As versatility makes possibility for different builds, depending on what you want out of this board. Pilots can use this AIO board in different builds like agile toothpick or long range quad or creative X6/X8 quads.

The Poly F405 2S-4S AIO comes with a integrated blackbox, current meter and features 5 UARTs to suit needs for different builds. Apart from versatility, the designers have made this AIO board high performance to make sure it could hold up well on powerful quads. To achieve this goal, this AIO board comes with powerful F405 chip and high quality 20A mosfets and excellent heat dissipation ability.

Note: if encountering any issues with LED functionality please try the following steps: Go to “Firmware Flasher” tab in Betaflight> Select flight controller “TUNERCF405” > Enable “Full chip erase” > Click “Load Firmware (Online)”> Click “Flash Firmware”

Check out all our

whoop flight controllers

, and our

TuneRC Products!

5 UARTs Available | 8 Motors Output | Blackbox and Current Meter Onboard

The Poly F405 AIO board has 5 UARTs available and many interfaces, you can take advantage of them to add external buzzer, GPS module, barometer and etc. Furthermore, this board also features EIGHT motor outputs, definitely a perfect option for x8 quad fans! And for sure, we don’t forget advanced users, 4MB blackbox and current meter are already onboard for Betaflight tuning.

PREFLASHED WITH BLUEJAY

Bluejay is an open source esc firmware. One of the appealing features it comes with is Bidirectional Dshot and RPM filtering, which can improve flight performance a lot. Kudos to devs from Bluejay for their hard work. You can find more detailed information on

Github

or join their

Discord

for discussion.

F405 IS A GOOD BALANCE IN TERMS OF FREQUENCY, MEMORY AND IO

Compared with F405 and F722, F405 has strikingly good performance on flash memory. Since Betaflight is developing fast and packed with more features, the limited 512K flash memory of F411 and F722 is becoming insufficient for Betaflight, the devs from Betaflight have to cram the Betaflight to F411 and F722. The larger flash memory of F405 is good for devs and pilots alike.

Note: “IO” stands for input and output.

User Manual

User Manual

Specifications

FC MCU: STM32F405RGT6( Cortex®-M4 168Mhz )
Built-in OSD: AT7456E
Built-in IMU: BMI270
Built-in 4MByte Blackbox
Built-in Current Meter
ESC MCU: EFM8BB21 ( 8bit 50MHz )
UART: UART1 ( for VTX by default ), UART2, UART3, UART4 ( supports SBUS ), UART5
Other interfaces: IIC ( IIC2 ) , LED_Strip, Buzzer
The through holes for power lead: big enough to fit 16AWG wire
8 Motor Outputs ( The onboard esc have been used for 4 motor outputs. You can add 4 external esc if you want to use the other 4 motor outputs )
Input Voltage: 6.50-20.0V( 2S-4S LIPO/LIHV )
Power Output: 5V 2A
Continuous Current: 20A
Peak Current: 28A
FC Target: TUNERCF405
ESC Firmware: Bluejay P-H-25
Size: 33mm x 33mm
Mounting Holes Pattern: 25.5 x 25.5mm
Weight: 5.8g
