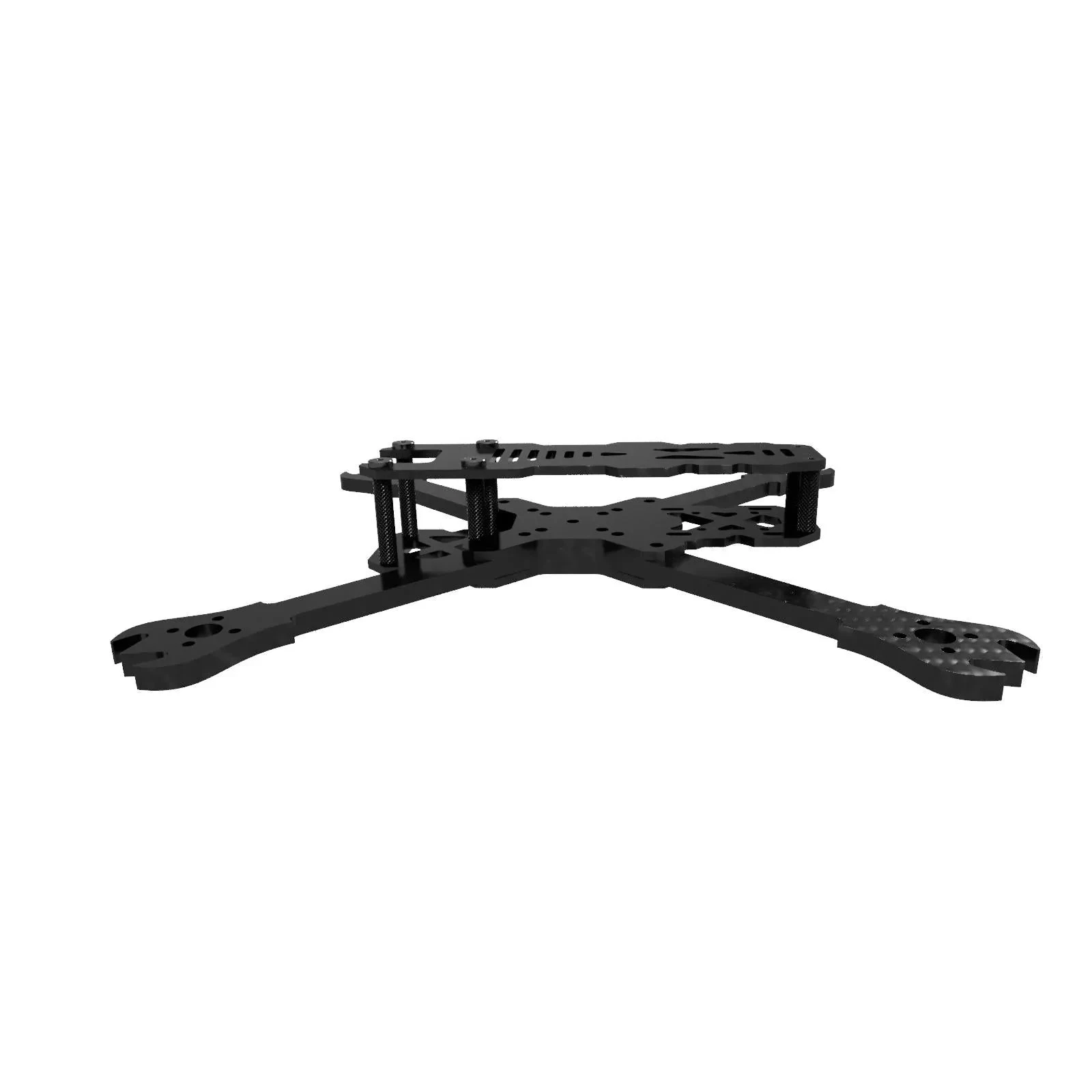

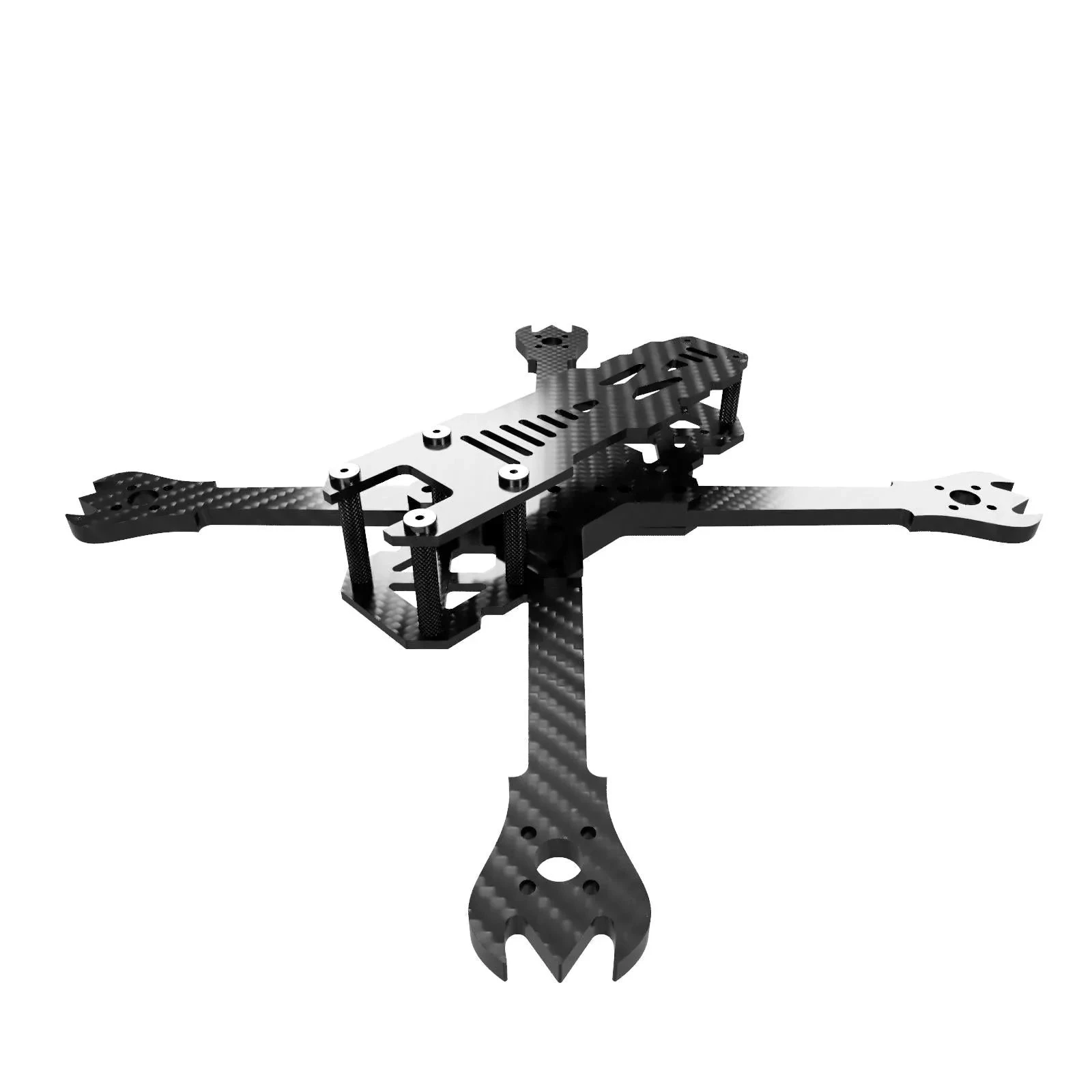

Ummagawd Demibot 5″ Frame Kit
Original price was: $11.70.$8.19Current price is: $8.19.
- Efficiency meets excellence in customer care.
- Your needs, our top priority.
- Best price, safe shopping guarantee
- Fast reliable delivery options
The Demibot Frame is here!!! “When Botgrinder and the Ummagawd Company get together, magic happens.”
We’ve made a frame that can not only survive the most brutal bando gauntlet imaginable but can also rip the smoothest freestyle flow you can ever experience.
The same details that make this frame nearly indestructible, also make it one of the smoothest flying frames available. With 6mm thick arms, held together by 3mm thick plates, and 6mm OD standoffs, this frame bolts solidly together into one sturdy mass, which makes gyros very happy.
The great durability, flight performance, and sick looks of the DemiBot can be attributed to a few things working very well together. The beefy 6mm arms, mated together with a 6mm thick central block, all held together with 3mm thick plates, make the core of this frame a significantly dense mass. The Demibot is definitely no ultralight, but that’s also why it takes a beating and flies just so damn smooth.
Check out our other
5″ frames
, as well as the rest of our
Ummagawd
selection!
Features
- The block facilitates an interface in which all 4 arms meet in the middle. This makes the entire assembly act like one solid piece but with just the right amount of energy loss (aka resonance damping).
- If you can manage to break an arm, it can be replaced by removing just ONE bolt. This is achieved by having each arm wedged between the adjacent arm and the center block. Therefore it only needs one bolt to keep it there.
- With some clever design tricks, this true-X frame maintains hardware independence between the flight stack and the arms while keeping the electronics in the center. We’ve included press nuts for the flight stack, as well as an installation tool (M3 screw and washer) so that you easily seat it yourself. You just choose which mounting configuration fits your electronics and press in the nuts.
Specifications
- Stack Mounting: Two 30.5×30.5mm stacks(center and rear) + Two 20x20mm stacks
- FPV Camera Mount: 20mm(DJI) or 19mm Micro cam
- Motor Mount Pattern: 16×16
- Main Plate Thickness: 3mm
- Frame Shape: X
- Frame Weight: 165 grams
- Arm Thickness: 6mm
Includes
- 1x Top Plate
- 2x Arms
- 1x Bottom Plate
- 1x Mid Plate (with a bag of press nuts)
- 1x Hardware Kit
- 1x Ummagrip Battery Pad
- 2x Kevlar Battery Straps
- 1x TPU FPV Camera Mounts
