Walksnail Avatar HD Micro Camera & VTX Kit V2 – Choose Version

The Micro Camera and VTX Combo for Fat Shark Dominator HDO3 are provided by WalkSnail.

The video transmitter for the Fat Shark Dominator HD Goggles and Walksnail Goggles has arrived! The Walksnail Avatar HD Pro Kit features a VTX with enhanced TVS protection and support for up to 6S.  The VTX is resistant to GPS interference with a wide input voltage range of 6V to 25.2V. This kit also features 1080P compatibility, high frame starlight, a 4KM range, and an 8GB and 32GB built-in storage option. The 32GB VTX delivers unmatched stability due to the aid of being equipped with Gyroflow technology. This allows super smooth and stabilized video from your FPV system. Enjoy the unparalleled performance and take your FPV adventures to new heights with this cutting-edge technology!

Check out all our

Walksnail HD products

!

Features

• Compatible with FatShark Dominator HD FPV Goggles
• Canvas mode and distance detection with the dual-antenna system
• Reliable digital HD video transmission (1080P – H.265 encoding)
• Ultra low-latency (22ms)
• 2K pixel, 120fps, 4:3 native sensor
• Support Gyroflow
• 1080P HD FPV
• F/2.0 Large Aperture
• 160° wide-angle FOV

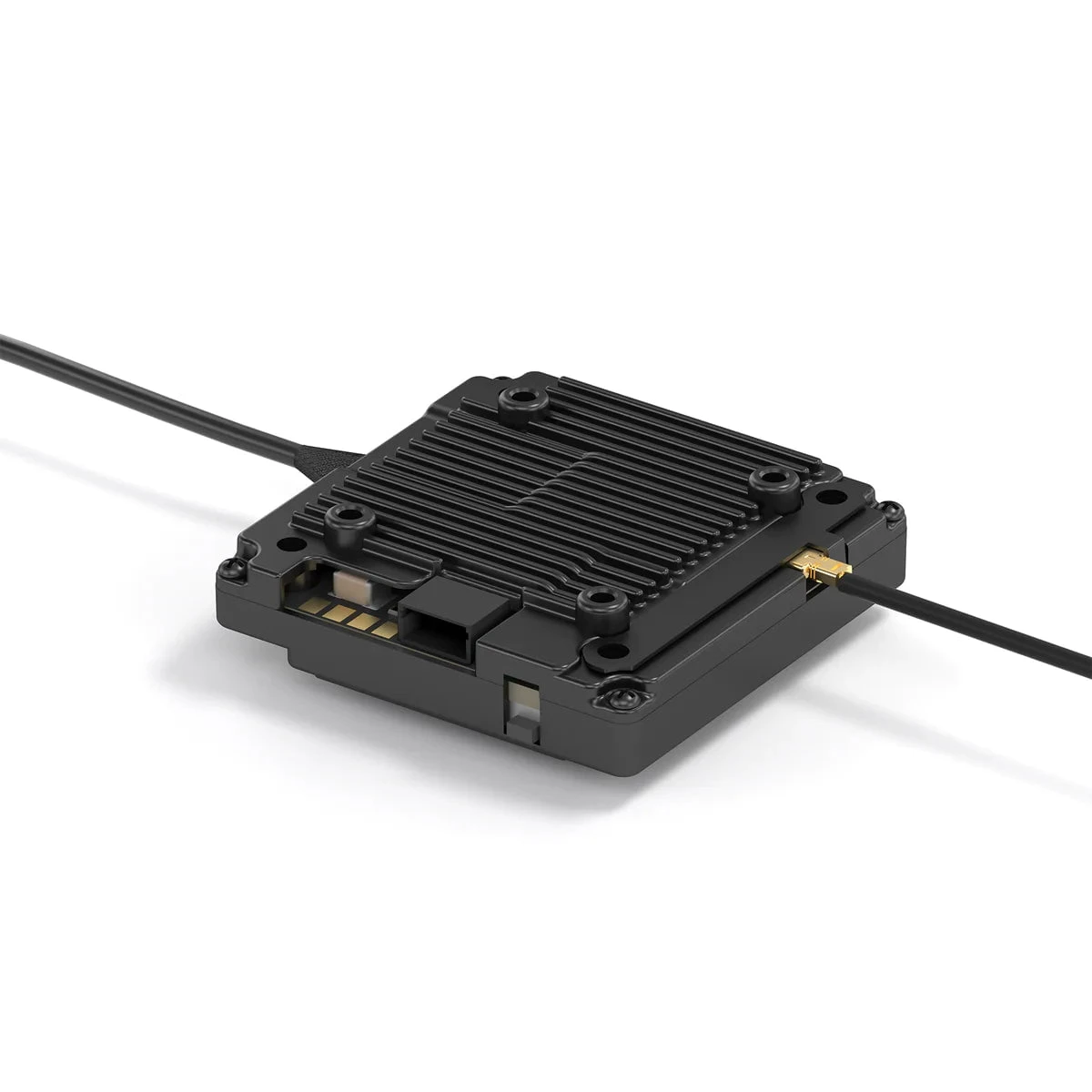

VTX Specifications

• Communication Frequency 5.725-5.850GHz
• Transmitter Power (EIRP) FCC:<30dBm;CE:<14dBm;SRRC:<20dBm;
• MIC:<25dBm
• 1/O Interface JST1.0x4(Power in)JST0.8×6(USB)
• Mounting Holes 25.5×25.5mm; 20x20mm
• Dimensions 33.5×33.5×10.5mm
• Storage 8G/32G
• Recording 1080p/720p
• Weight 17.6g
• Operating Temperature -20-40℃
• Channels 8
• Wide Power Input 6V-25.2V
• Supported FC System Betaflight; Inav; Fettec; ArduPilot; Kiss
• OSD Canvas mode
• Latency Average delay 22ms
• Antenna 1(IPEX)

Camera Specifications

• Model Avatar V2 camera
• Image Sensor 1/3.2-Inch 4Mp 4:3sensor
• Resolution 1080P/60fps; 720P/100fps; 720P/60fps;1080P/120fps compatibility; 1080P/100fps compatibility;
• Ratio 4:3 native /16:9
• Lens 2.1mm
• FOV 160°
• Aperture F2.0
• Shutter Rolling shutter
• Min.Illumination 0.001Lux
• Weight 7.2g
• Dimensions 19x19x22mm
• Coaxial Cable 140mm
• Gyroflow supported/ non-supported, two version

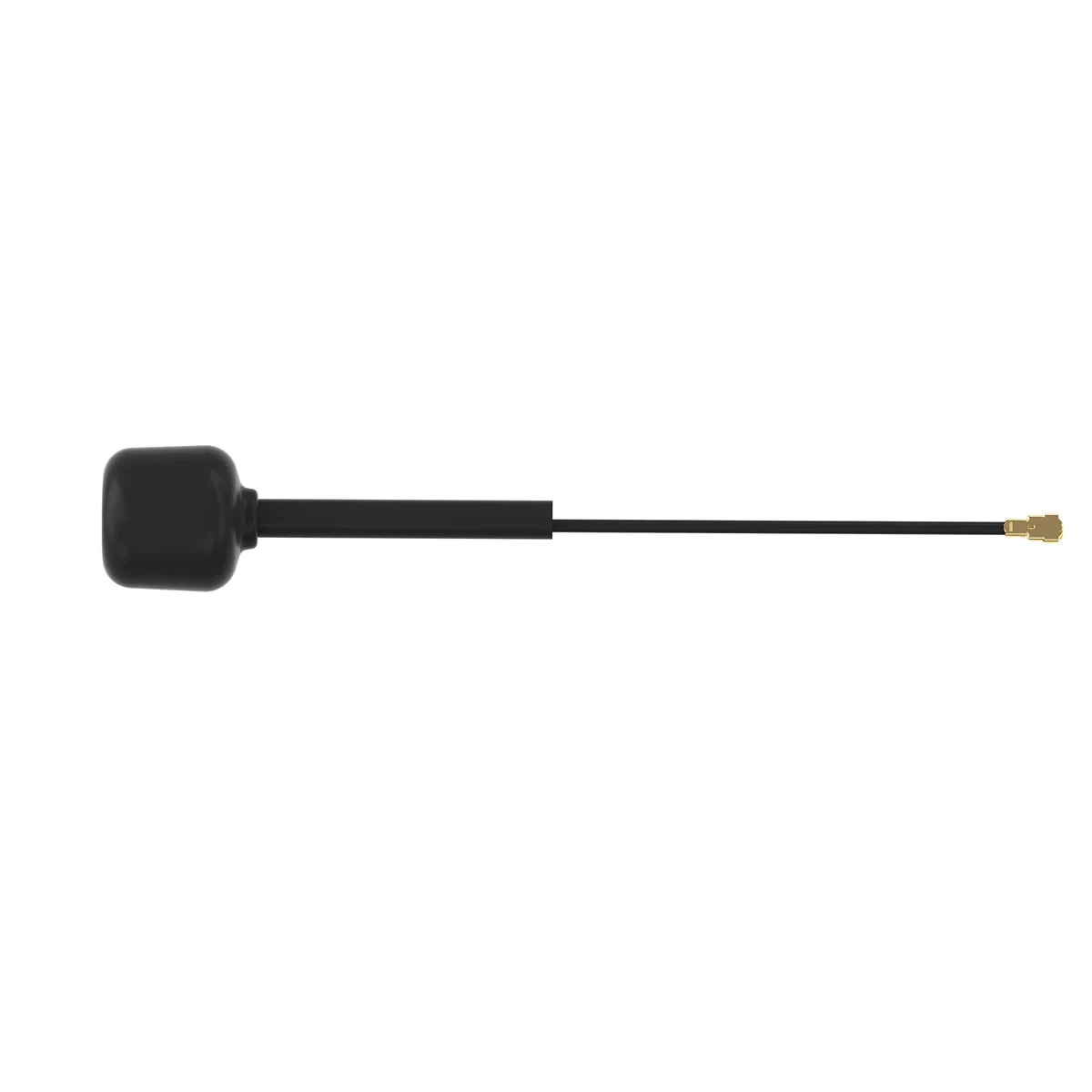

Antenna Specifications

• Polarization LHCP
• Bandwidth 5600MHz-6000MHz.
• Gain 1.9dBi
• VSWR ≤1.5
• Input Impedance 50Ω
• Interface IPEX-1
• Size R15x45mm (without cable）
• Weight 2g

Includes

• USB transfer extension cable X1
• 4 Pin silicone cable X1
• M2x4mm screws X8
• M2x5mm screws X4
• M2x6mm screws X4
• M2x14mm screws X4
• M2x5x0.5mm gasket X4
